Clack Valve WS1 CD Matrix Operation And Instruction Manual page 20

RETURN TO NORMAL MODE
Power Loss
If the power goes out the system will keep time until the battery is depleted. If an extended power outage
occurs, the time of day will fl ash on and off which indicates the time of day should be reset and the battery
replaced. The system will remember the rest.

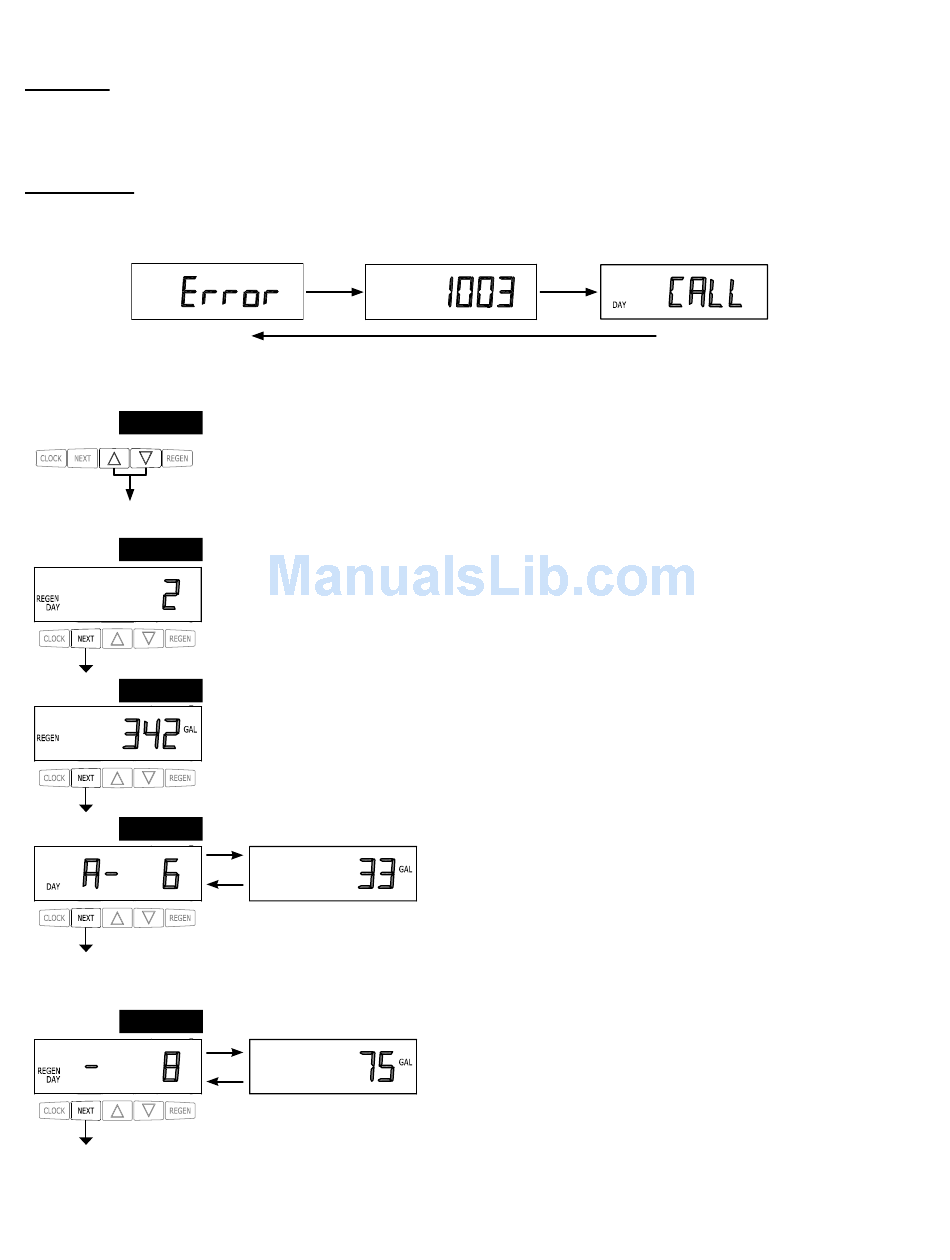

Error Message
If the word "ERROR," a number and the word "CALL" are alternately fl ashing on the display contact the
OEM for help. A number indicates that the valve was not able to function properly.
STEP 1D
STEP 2D
STEP 3D
STEP 4D
STEP 5D
Page 20
STEP 1D – Press ▲ and ▼ simultaneously for three seconds. If screen in step 2D does not appear in 5
seconds the lock on the valve is activated. To unlock press ▲, NEXT, ▼, and SET CLOCK in se-
quence, then press ▲ and ▼ simultaneously for 3 seconds.
STEP 2D – Days, since last regeneration: This display shows the days since the last regeneration oc-
curred. Press the NEXT button to go to Step 3D. Press REGEN to exit Diagnostics.
STEP 3D – Volume, since last regeneration: This display shows the volume of water that has been
treated since the last regeneration. This display will equal zero if a water meter is not installed. Press
the NEXT button to go to Step 4D. Press REGEN to return to previous step.
day) and fl ashes the reserve capacity used. Pressing the ▲ button again will show day 2 (the day before
yesterday) and the reserve capacity. Keep pressing the ▲ button to show the capacity for days 3, 4, 5
and 6. The ▼ button can be pressed to move backwards in the day series. Press the NEXT button at
any time to go to Step 5D. Press REGEN to return to previous step.
▲ button to show the maximum volume of water treated for the last 63 days. If a regeneration occured
on the day the word "REGEN" will also be displayed. This display will show dashes if a water meter is
not installed. Press the NEXT button at any time to go to Step 6D. Press REGEN to return to previous
step.
Diagnostics
STEP 4D – Volume, reserve capacity used for last 7 days: If the valve is
set up as a softener, a meter is installed and Set Volume Capacity is set
to "Auto," this display shows 0 day (for today) and fl ashes the reserve
capacity. Pressing the ▲ button will show day 1 (which would be yester-
STEP 5D - Volume, 63-day usage history: This display shows day 1 (for
yesterday) and fl ashes the volume of water treated yesterday. Pressing
the ▲ button will show day 2 (which would be the day before yesterday)
and fl ashes the volume of water treated on that day. Continue to press the
