General Operation

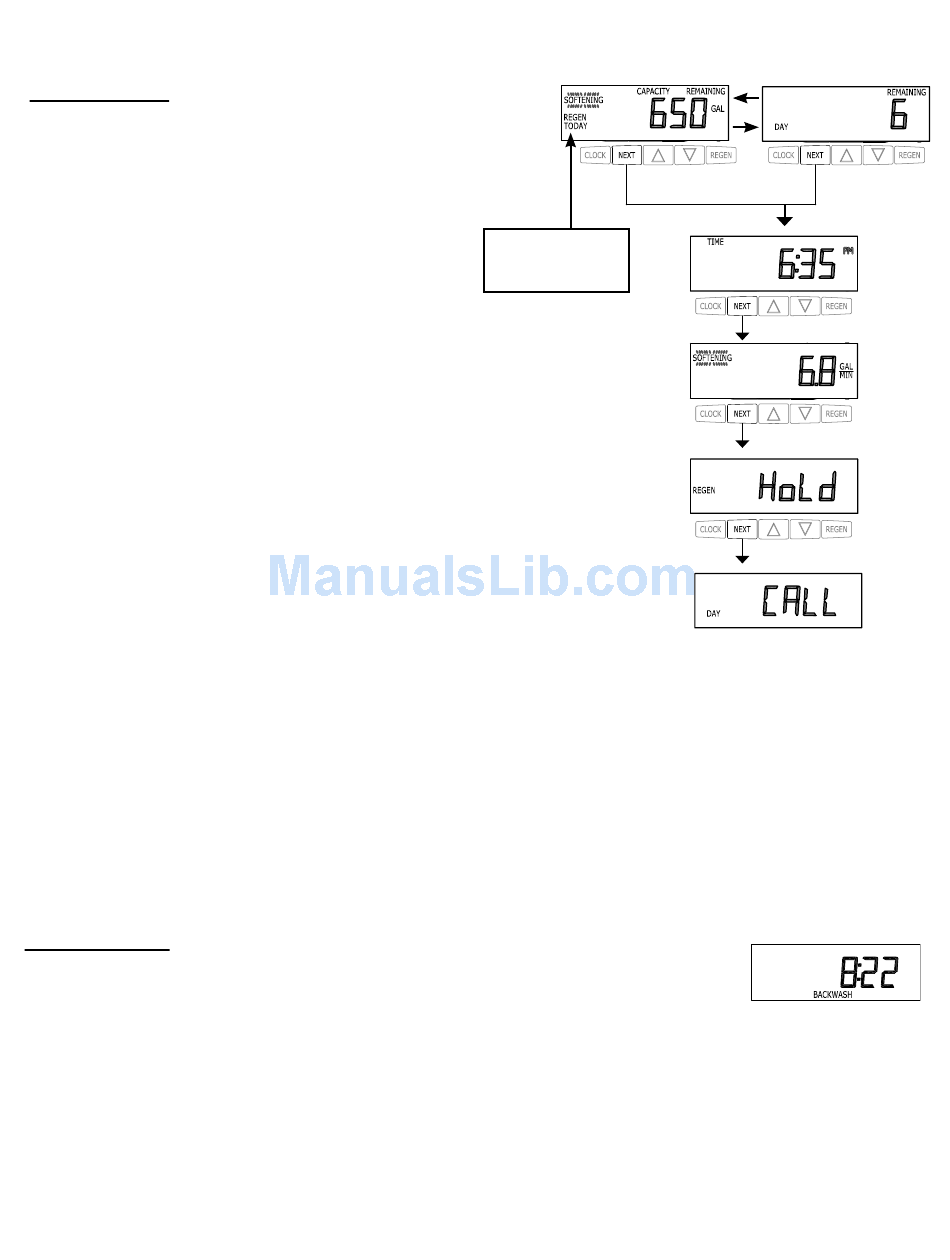

When the system is operating, one of fi ve displays may be shown.
Pressing NEXT will alternate between the displays. One of the
displays is always the current time of day.
The second display is one of the following: days remaining or
volume remaining. Days remaining is the number of days left
before the system goes through a regeneration cycle. Capacity
remaining is the gallons that will be treated before the system
goes through a regeneration cycle. Pressing the ▼ button while
in the Capacity Remaining display will decrease the capacity
remaining in 10 gallon increments and will also increase the
volume used impacting the recorded values in Diagnostics Steps
3D, 4D and 5D and Valve History, Step 4VH.
The third display shows the current treated water fl ow rate
through the system. The fourth display will show either dP or hold
if the dP switch is closed.
The fi fth display indicates the user should call for service. The
fi fth display will not appear if OFF is selected in Step 14S of
OEM Softener System Setup or Step 13F of OEM Filter System
Setup. To clear the Service Call reminder, press the ▲ and ▼
buttons simultaneously while CALL is displayed.
If the system has called for a regeneration that will occur at the
preset time of regeneration, the words REGEN TODAY will
appear on the display.
If a water meter is installed, the word "Softening" or "Filtering"
fl ashes on the display when water is being treated (i.e. water is
fl owing through the system).
Regeneration Mode
Typically a system is set to regenerate at a time of low water usage. An example of a time with
low water usage is when a household is asleep. If there is a demand for water when the system is
regenerating, untreated water will be used.
When the system begins to regenerate, the display will change to include information about the step of the regeneration process and
the time remaining for that step to be completed. The system runs through the steps automatically and will reset itself to provide
treated water when the regeneration has been completed.
Page 18
User Display Settings
REGEN TODAY will
Flash if a regeneration
is expected "Tonight."
or
