Clack Valve WS1 CD Matrix Operation And Instruction Manual page 11

In OEM Softener System Setup the OEM chooses the value for the specifi ed cycles (the order of which is specifi ed by the selections
for Step 4C and Step 5C in OEM Cycle Sequence) and specifi es other operating parameters for the system. If a cycle is present the
value can be set to off. Fill is in pounds of salt and all other cycles are in minutes.
Step 4C
Post
Pre
Post
Pre
Note: If "Pre" is selected in Step 4C and "UP" is selected in Step 5C, the proportional brining display will
appear after the Grains Capacity display (Step 8S).

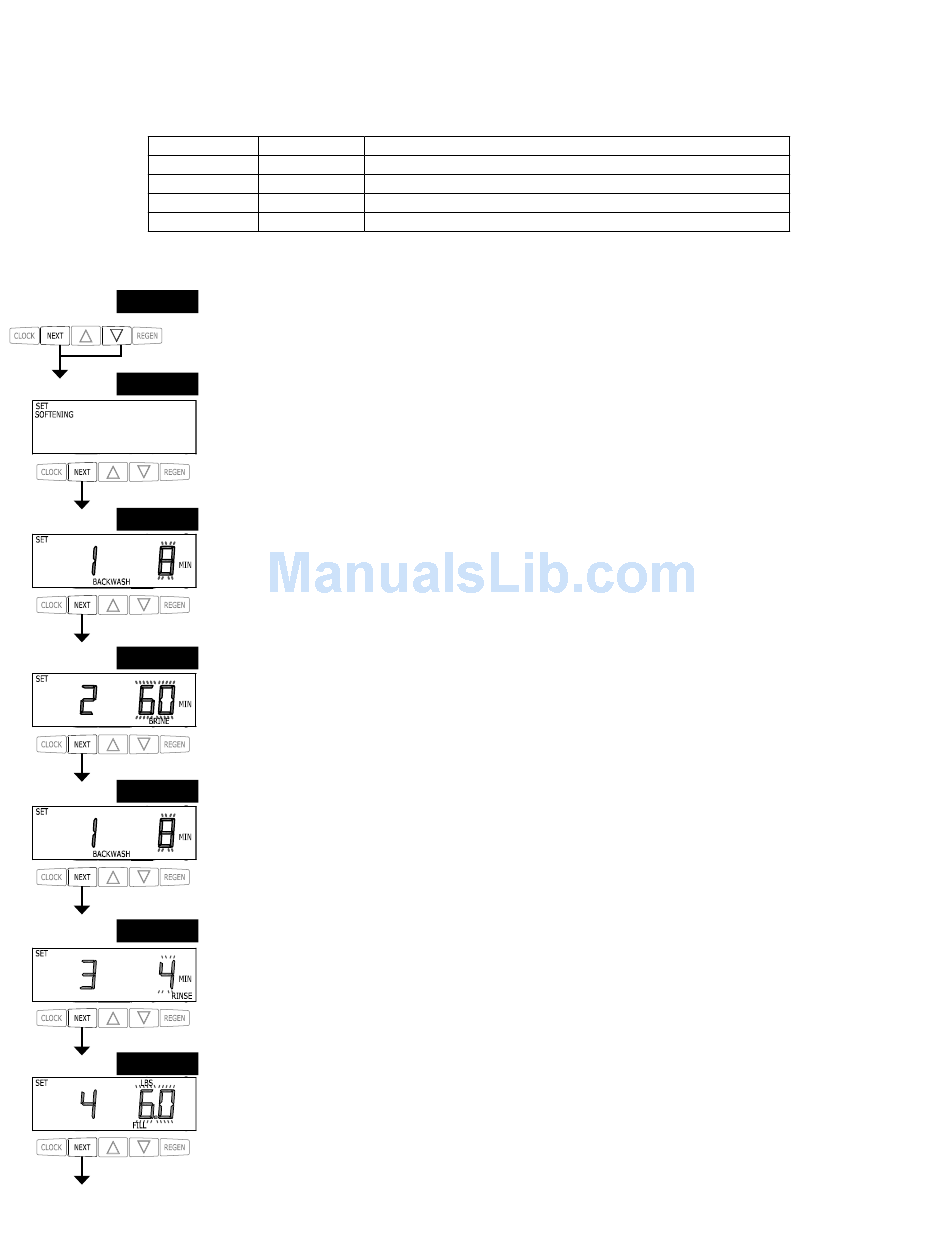

STEP 1S
STEP 2S
STEP 3S
STEP 4S
STEP 5S
STEP 6S
STEP 7S
OEM Softener System Setup
Step 5C
dn Backwash, Brine, Backwash, Rinse, Fill
dn Fill, Service, Backwash, Brine, Backwash, Rinse
UP Brine, Backwash, Rinse, Fill
UP Fill, Service, Brine, Backwash, Rinse
Step 1S – Press NEXT and ▼ simultaneously for 3 seconds and release. If screen in Step 2S does
not appear in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and SET
CLOCK in sequence, then press NEXT and ▼ simultaneously for 3 seconds and release.
Step 2S – Choose SOFTENING using the ▼ or ▲ button. Press NEXT to go to Step 3S. Press
REGEN to exit OEM Softener System Setup.
Step 3S – Select the time for the fi rst cycle (which in this example is BACKWASH) using the ▼ or ▲
button. Press NEXT to go to Step 4S. Press REGEN to return to previous step.
Step 4S – Select the time for the second cycle (which in this example is dn BRINE) using the ▼ or
▲ button. Verify the correct valve body, main piston, regenerant piston, and stack are being used,
and that the injector or injector plug(s) are in the correct locations. See Compliance Table in Service
Instructions under Injector Cap, Screen, Injector Plug and Injector section and Figure 6. Press NEXT
to go to Step 5S. Press REGEN to return to previous step.
NOTE: The display will fl ash between cycle number and time, and brine direction (dn or UP).
Step 5S – Select the time for the third cycle (which in this example is BACKWASH) using the ▼ or
▲ button. Press NEXT to go to Step 6S. Press REGEN to return to previous step.
Step 6S – Select the time for the fourth cycle (which in this example is RINSE) using the ▼ or ▲
button. Press NEXT to go to Step 7S. Press REGEN to return to previous step.
Step 7S – Select the LBS for the fi fth cycle (which in this example is FILL) using the ▼ or ▲ button.
Press NEXT to go to Step 8S. Press REGEN to return to previous step.
Cycle Order
Page 11
