Clack Valve WS1 CD Matrix Operation And Instruction Manual page 37

Drawing No. Order No.
1 H4615
2 V3008-02
3* V3166
4* V3167
5* V3163
6* V3150
7* V3151
8* V3105
V3190-090 WS1 DLFC 9.0 gpm for 1
V3190-100 WS1 DLFC 10.0 gpm for 1
V3190-110 WS1 DLFC 11.0 gpm for 1
V3190-130 WS1 DLFC 13.0 gpm for 1
9
V3190-150 WS1 DLFC 15.0 gpm for 1
V3190-170 WS1 DLFC 17.0 gpm for 1
V3190-200 WS1 DLFC 20.0 gpm for 1
V3190-250 WS1 DLFC 25.0 gpm for 1
* Can be ordered as a set. Order number V3008-02, description: WS1 Drain FTG 1 Straight.
Water
Flow

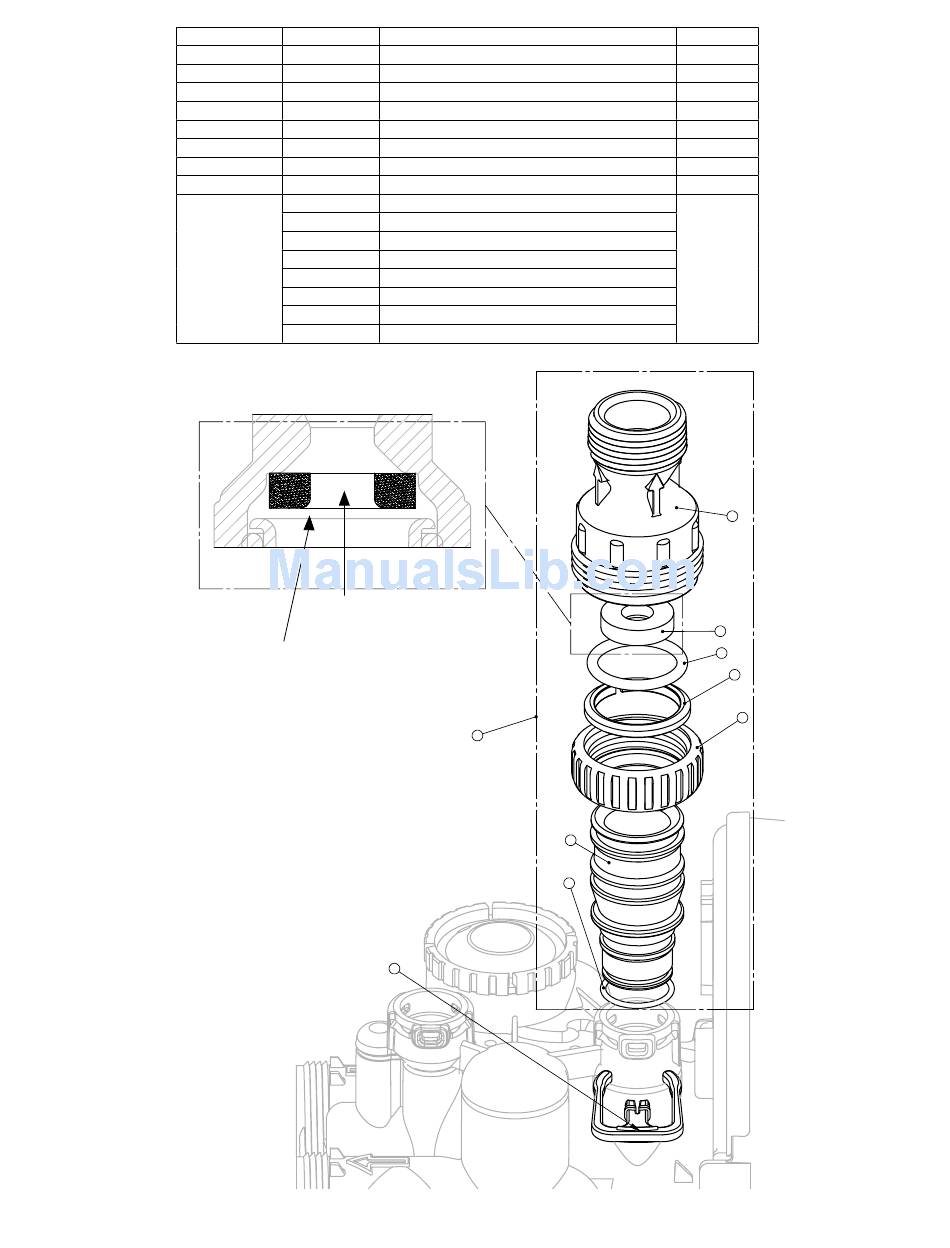

Proper DLFC orientation
directs water flow towards
the washer face with
rounded edge.
Drain Line – 1"
Description
Elbow Locking Clip
WS1 Drain FTG 1 Straight
WS1 Drain FTG Body 1
WS1 Drain FTG Adapter 1
0-ring 019
WS1 Split Ring
WS1 Nut 1" QC
O-ring 215


Quantity
1
1
1
1
1
1
1
1
One DLFC
must be
used if 1"
fi tting is
used






Page 37
