Clack Valve WS1 CD Matrix Operation And Instruction Manual page 15

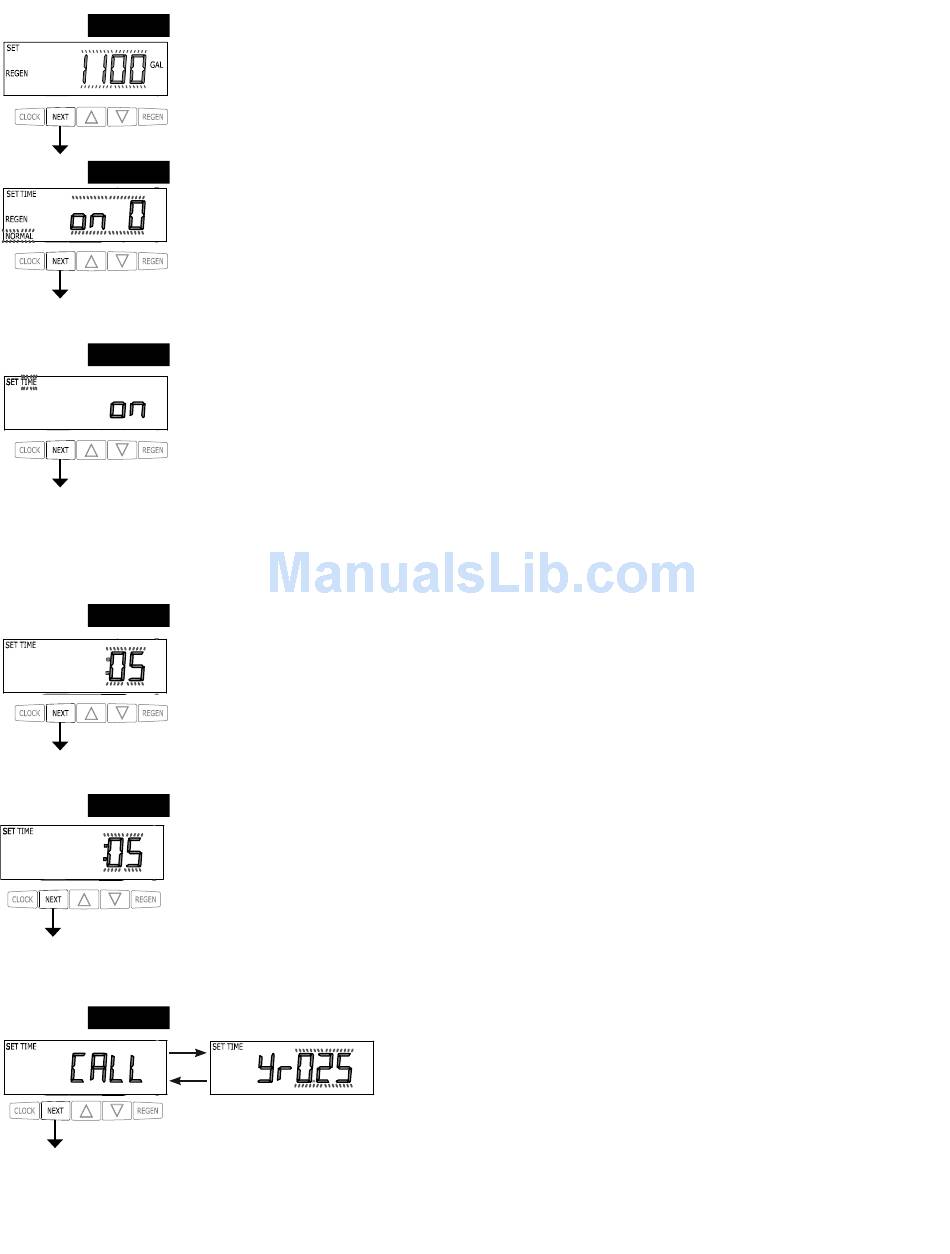

STEP 8F
STEP 9F
STEP 10F
STEP 11F
STEP 12F
STEP 13F
RETURN TO NORMAL MODE
Step 8F – Set Volume Capacity using the ▼ or ▲ button. If value is set to:
• "oFF" regeneration will be based solely on the day override set (see Installer Display/Settings Step 3I); or
• as a number (allowable range 20 to 250,000) regeneration initiation will be based off the value specifi ed.
See Table 9 for more detail. Press NEXT to go to Step 9F. Press REGEN to return to previous step.
Step 9F – Set Regeneration Time Options using the ▼ or ▲ button. If value is set to:
• "NORMAL" means regeneration will occur at the preset time;
• "on 0" means regeneration will occur immediately when the gallons capacity reaches 0 (zero); or
• "NORMAL + on 0" means regeneration will occur at one of the following:
— the preset time when the gallons capacity falls below the reserve or the specifi ed number of days between
regenerations is reached whichever comes fi rst;
or
— after 10 minutes of no water usage when the gallon capacity reaches 0 (zero).
See Table 9 for more detail. Press NEXT to go to Step 10F. Press REGEN to return to previous step.
Step 10F: Set Relay operation using the ▲ or ▼ button. The choices are:
• Set Time on: Relay activates after a set time at the beginning of a regeneration and then deactivates after a set
period of time. The start of regeneration is defi ned as the fi rst backwash cycle or Dn brine cycle, which ever comes
fi rst.
• Set Gal Filtering on: Relay activates after a set number of gallons have been used while in service
and then deactivates after a set period of time or after the meter stops registering fl ow, whichever comes fi rst.
• Set Gal Filtering Regen on: Relay activates after a set number of gallons have been used while in service
or during regeneration and then deactivates after a set period of time or after the meter stops registering fl ow,
whichever comes fi rst.
• Set Gallons HoLd: Relay closes every set number of gallons and releases when the ▲ button is pressed.
• Set Off: If set to Off, Steps 11F and 12F will not be shown.
Press NEXT to go to Step 11F. Press REGEN to return to previous step.
Step 11F: Set Relay Actuation Time or Gallons using the ▲ or ▼ buttons. The choices are:
• Relay Actuation Time: After the start of a regeneration the amount of time that should pass prior to activating
the relay. The start of regeneration is defi ned as the fi rst backwash cycle or Dn brine cycle, which ever comes fi rst.
Ranges from 1 minute to 500 minutes.
• Relay Actuation Gallons: Relay activates after a set number of gallons have passed. Ranges from 1 to 100
gallons.
• Relay HoLd: Relay closes every set number of gallons. Ranges from 1,000 to 99,000,000 gallons.
Press NEXT to go to Step 12F. Press REGEN to return to previous step.
Step 12F: Set Relay Deactivate Time using the ▲ or ▼ buttons.
• If Set Time on is selected in Step 10F the relay will deactivate after the time set has expired. Ranges from 1
second to 500 minutes.
• If Set Gal Filtering on or Set Gal Filtering Regen on is selected in Step 10F the relay will deactivate after the
time set has expired or after the meter stops registering fl ow, whichever comes fi rst. Ranges from 1 second to 500
minutes.
• Does not display for Gallons HoLd selection.
Press NEXT to go to Step 13F. Press REGEN to return to previous step.
Step 13F: Set the Service Call Indicator by using the ▲ or ▼ buttons. Range
is in ¼ of a year increments from 0.25 to 9.75 years. Selecting OFF will disable
this feature.
Press NEXT to exit OEM Filter System Setup. Press REGEN to return to
previous step.
Page 15
