Clack Valve WS1 CD Matrix Operation And Instruction Manual page 12

STEP 8S
STEP 9S
STEP 10S
STEP 11S
STEP 12S
STEP 13S
STEP 14S
RETURN TO NORMAL MODE
Page 12

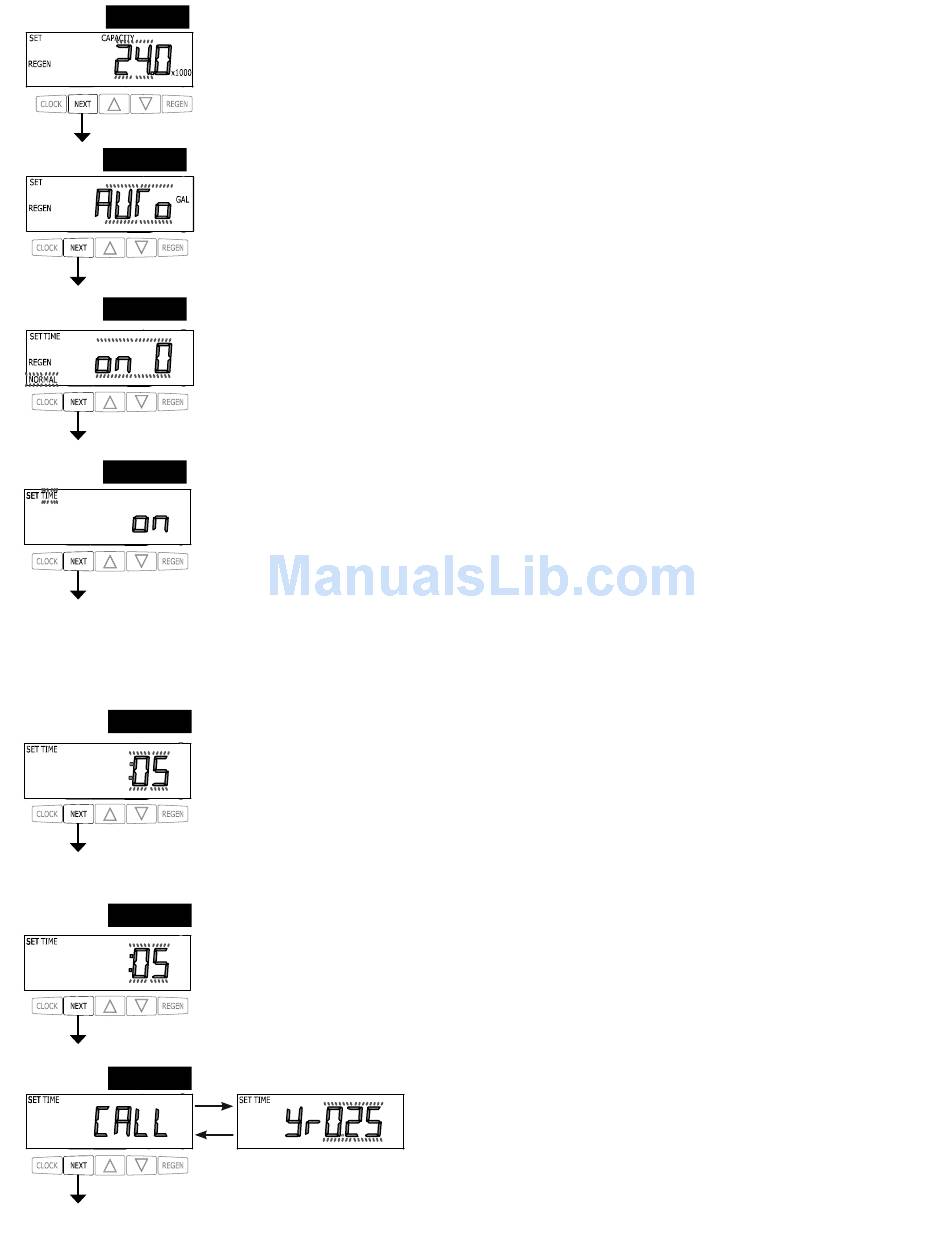

Step 8S –Set Grains Capacity using the ▼ or ▲ button. The ion exchange capacity is in grains of hardness as
calcium carbonate for the system based on the pounds of salt that will be used. Calculate the pounds of salt using
the fi ll time previously selected. The allowable grains capacity range varies from 5000 to 500,000 grains. Grains
capacity is affected by the fi ll time. The grains capacity for the selected fi ll time should be confi rmed by OEM
testing. The capacity and hardness levels entered are used to automatically calculate reserve capacity when gallon
capacity is set to AUTO. Press NEXT to go to Step 9S. Press REGEN to return to previous step.
Step 9S – Set Volume Capacity using the ▼ or ▲ button. If value is set to:
• "AUTO" capacity will be automatically calculated and reserve capacity will be automatically estimated;
• "oFF" regeneration will be based solely on the day override set (see Installer Display Settings Step 3I); or
• as a number (allowable range 20 to 250,000) regeneration initiation will be based off the value specifi ed.
If "oFF" or a number is used, hardness display will not be allowed to be set in Installer Display Settings Step 2I.
See Table 8 for more detail. Press NEXT to go to Step 10S. Press REGEN to return to previous step.
Step 10S – Set Regeneration Time Options using the ▼ or ▲ button. If value is set to:
• "NORMAL" means regeneration will occur at the preset time;
• "on 0" means regeneration will occur immediately when the gallons capacity reaches 0 (zero); or
• "NORMAL + on 0" means regeneration will occur at one of the following:
— the preset time when the gallons capacity falls below the reserve or the specifi ed number of days between
regenerations is reached, whichever comes fi rst; or
— after 10 minutes of no water usage when the gallons capacity reaches 0 (zero). See Table 8 for more detail.
Press NEXT to go to Step 11S. Press REGEN to return to previous step.
Step 11S – Set Relay operation using the ▼ or ▲ button. The choices are:
• Relay Actuation Time: After the start of a regeneration the amount of time that should pass prior to activating the
relay. The start of regeneration is defi ned as the fi rst backwash cycle, Dn brine cycle or UP brine cycle which ever
comes fi rst.
• Set Gal Softening on: Relay activates after a set number of gallons have been used while in service and then
deactivates after a set period of time or after the meter stops registering fl ow, whichever comes fi rst.
• Set Gal Softening Regen on: Relay activates after a set number of gallons have been used while in service
or during regeneration and then deactivates after a set period of time or after the meter stops registering fl ow,
whichever comes fi rst.
• Set Gal HoLd: Relay closes every set number of gallons and releases when the ▲ button is pressed.
• Set Off: If set to Off, Steps 12S and 13S will not be shown.
Press NEXT to go to Step 12S. Press REGEN to return to previous step.
Step 12S: Set Relay Actuation Time or Gallons using the ▲ or ▼ buttons. The choices are:
• Relay Actuation Time: After the start of a regeneration the amount of time that should pass prior to activating
the relay. The start of regeneration is defi ned as the fi rst backwash cycle or Dn brine cycle, which ever comes fi rst.
Ranges from 1 minute to 500 minutes.
• Relay Actuation Gallons: Relay activates after a set number of gallons have passed. Ranges from 1 to 100
gallons.
• Relay HoLd: Relay closes every set number of gallons. Ranges from 1,000 to 99,000,000 gallons.
Press NEXT to go to Step 13S. Press REGEN to return to previous step.
Step 13S: Set Relay Deactivate Time using the ▲ or ▼ buttons.
• If Set Time on is selected in Step 11S the relay will deactivate after the time set has expired. Ranges from 1
second to 500 minutes.
• If Set Gal Softening on or Set Gal Softening Regen on is selected in Step 11S the relay will deactivate after the
time set has expired or after the meter stops registering fl ow, whichever comes fi rst. Ranges from 1 second to 500
minutes.
• Does not display for Gal HoLd selection.
Press NEXT to go to Step 14S. Press REGEN to return to previous step.
Step 14S: Set the Service Call Indicator by using the ▲ or ▼ buttons. Range is
in ¼ of a year increments from 0.25 to 9.75 years. Selecting OFF will disable this
feature.
Press NEXT to exit OEM Softener System Setup. Press REGEN to return to
previous step.
