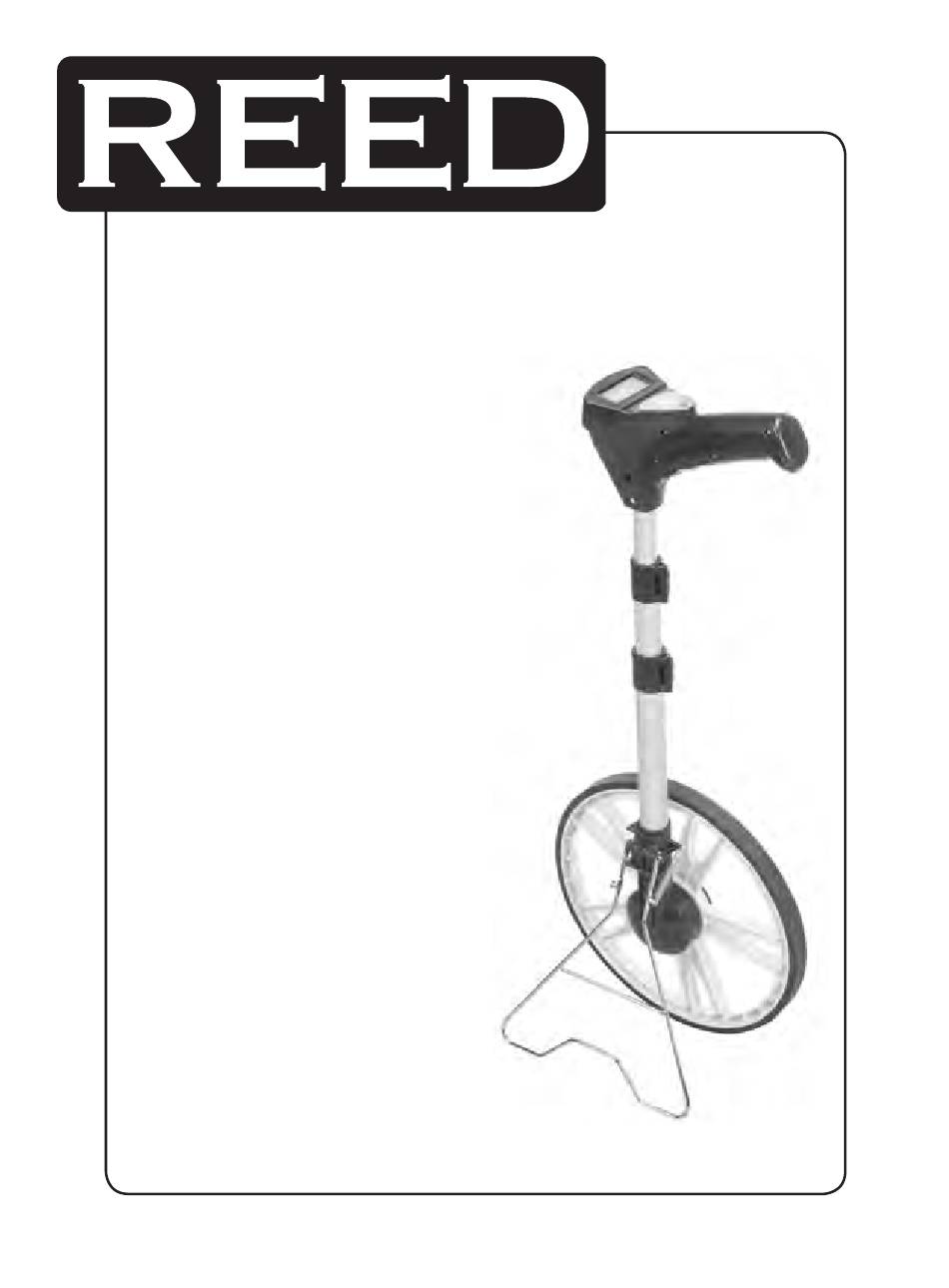

- Page 1 INST R8000 Model Distance Measuring INST Wheel Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Table of Contents Features ..................3 Applications ................... 3 Specifications ................4 Instrument Description ..............5 Display Operation ................6 Operating Instructions ..............6-7 Unit of Measure Toggle ............... 6 Storing Measurements ..............6 Reviewing Stored Measurements ..........7 Clearing Internal Memory and Current Measurement ....7 INSTRUMENTS GlobalTestSupply www.
- Page 3 Features • Measures in feet or meters • Accuracy of ±0.5% • Backlit LCD Display • Ergonomical pistol grip designed for comfort • Adds forward, subtracts in reverse • Telescopic handle • Internal memory stores up to 5 measurements • Spring-loaded kick stand • Includes soft carrying case and batteries Applications • Road distance measuring • Construction sites INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 4 Specifications Measuring Distance: Up to 99999.9 (m/ft) Units of Measure: Meters, Feet Accuracy: ±0.5% Resolution: Wheel Diameter: 12.5" (318mm) Display: Backlit Display: Internal Memory: Yes (up to 5 data points) Low Battery Indicator: Power Supply: 3 x AAA batteries Product Certifications: Operating Temperature: 14 to 113°F (-10 to 45°C) Storage Temperature: -4 to 122°F (-20 to 50°C) Dimensions: 28.3 x 12 x 2.8" (720 x 318 x 70mm) Weight: 40.92oz (2.6lbs) INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

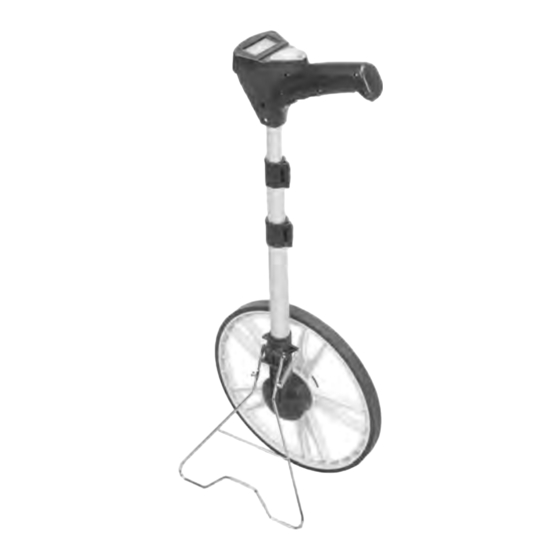

- Page 5 Instrument Description 1. Unit of Measure Toggle 6. LED Display 2. Recall Memory 7. Handle 3. Clear Memory 8. Battery Cover 4. On/Off 9. Telescope Locks 5. Store Measurement 10. Measuring Wheel 11. Stand INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 6 Display Description 3. Meters 1. Low Battery Indicator 4. Feet 2. Stored Memory Indicator 5. Measured Value Operating Instructions Unit of Measure Toggle • Press the M/FT button to switch between meters and feet. Storing Measurements • The R8000 can store up to 5 measurements in memory. Once a measurement has been taken, press the SM button to store the measurement. memory empty 1 measurement stored 5 measurements stored (memory full) continued ... INSTRUMENTS GlobalTestSupply www.
- Page 7 Reviewing Stored Measurements • To recall stored memory, press the RM button. For example, if you stored 5M in M1 and 1M in M2 while the current measured data is 120.7M, after you press RM once, it will display the data of M1. After several seconds, it will display the current measured data again. If you press the RM button twice, the data of M2 will appear. Continue pressing RM to toggle through stored measurements. Clearing Internal Memory and Current Measurement • Press the ON/OFF to power off the instrument. When turned back on, internal memory will be erased. • Press the CLR button to clear the current measured data. For service or information on this or any other REED product, contact REED Instruments at info@reedinstruments.com. INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 8 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
