Summary of Contents for Wilson Electronics DT4G SmartTech III 460020

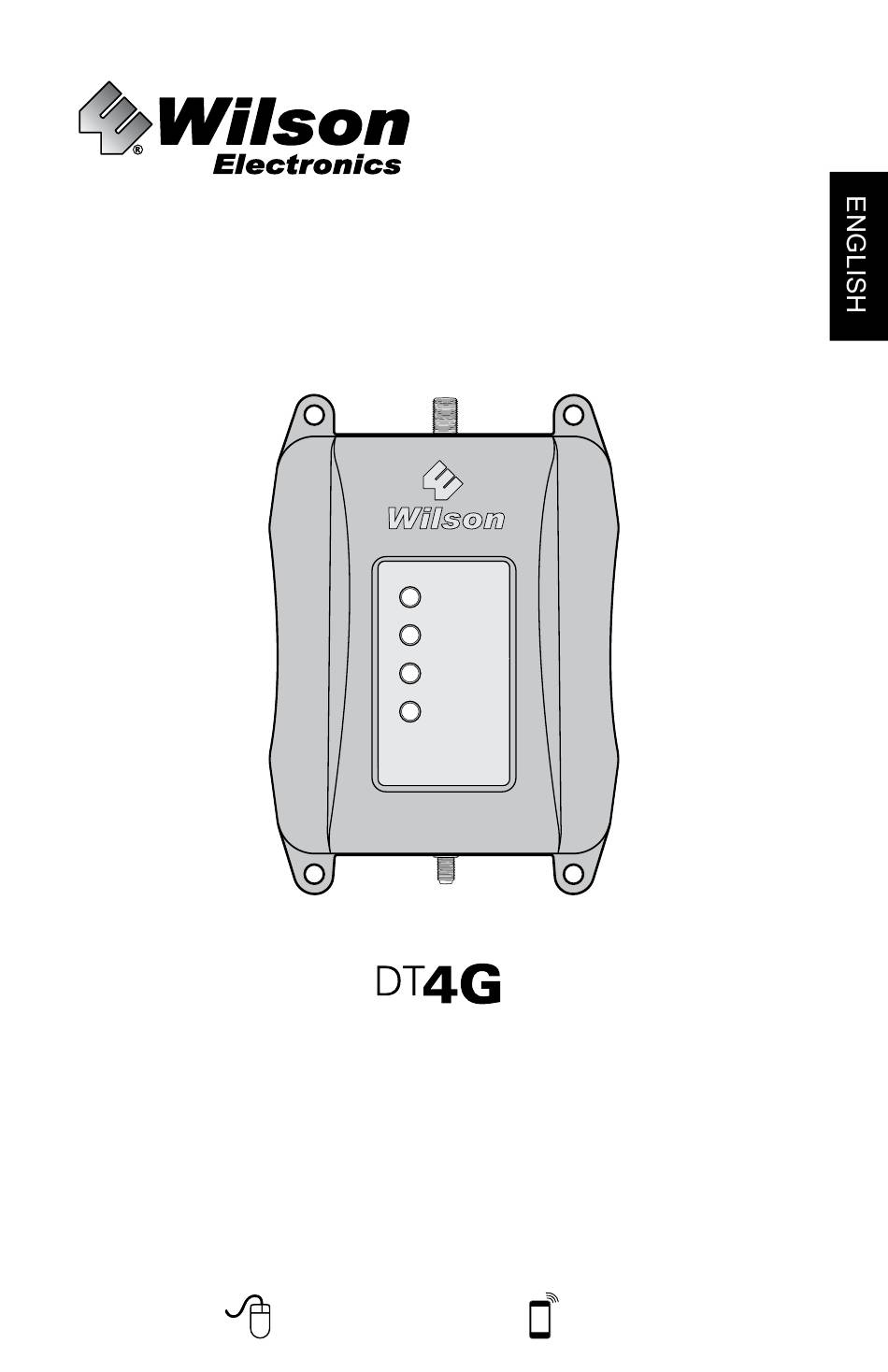

- Page 1 Cellular Signal Booster 460020 Need help? www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST...
-
Page 2: Table Of Contents
FAILURE TO DO THIS WILL VOID YOUR WARRANTY IN THE EVENT OF A POWER SURGE OR LIGHTNING STRIKE. Installation Instructions for the Following Wilson Electronics Signal Booster: DT4G™ 700 MHz Band 13 & 17, 800 / 1900 (Ext. PCS) AWS (1700 / 2100) SmartTech ™ Signal Booster... -
Page 3: Package Contents
Package Contents DT4G Desktop Antenna Outside Panel Antenna Kit 30’ RG6 Cable ™ AC Power Supply Coax Cable Connector (5’ RG-174 comes attached) Outside Panel Antenna 5V / 2.5A (301211) 30’ RG6 coax cables (950630) (971129) (Not included with some models) (314473-0630) (859948) Appearance of device and accessories may vary. -
Page 4: Find The Strongest Signal
Find the Strongest Cellular Signal Rotate in 45° increments Before you install your DT4G signal booster, you must determine the location of the best available cellular signal. This will affect the location of your Outside Antenna and will help you get the best performance from your DT4G. -
Page 5: Quick Install - Inside Window Mount Option
Quick Install - Inside Window Insert the Outside Antenna into the cradle. Mount Option Additional installation options on pg. 6-8 Find the Strongest Cellular Signal (See page 4 for suggested methods.) Ready to Install Inside Window Mount Select a location on the inside of a window as high as possible and at least 20 feet from where the DT4G will be located. -
Page 6: Installation Options
Installation Options Connect the DT4G to a surge protected AC power strip with at least a 1000 Joule Outside Pole Mount Option rating. If your DT4G is working correctly, (Best Option) the lights will be green. Select a location on the roof where the Outside Antenna can be mounted on a pole maintaining at least 20 feet of vertical or horizontal separation from the inside... -
Page 7: Outside Wall Mount Option
Fit the assembly onto the pole in your desired location by sliding the second half of the bracket onto the U-bolt and securing it with the lock washers and nuts provided. Be sure the cradle is at the desired height and rotated toward the strongest cellular signal before tightening the nuts. -
Page 8: Rafter Mount Option
Rafter Mount Option Additional Considerations Select a location in the building’s rafters Whichever installation you choose, where the Outside Antenna can be keep the following guidelines in mind to mounted directly above the Desktop maximize your signal strength: Antenna with at least 20 feet vertical Always turn the Outside Antenna so or horizontal separation. -
Page 9: Dt4G And Desktop Antenna Placement
DT4G and Desktop Antenna Keep the DT4G and the Desktop Antenna at least 18 inches away Placement from each other with the Wilson logo Select a location for the DT4G that on the Desktop Antenna facing away is away from excessive heat, direct from the DT4G. -
Page 10: Troubleshooting & Understanding Lights
Troubleshooting & Understanding Lights The DT4G includes four indicator lights, one for each band. All indicator lights will be green, orange or red. Green indicates that the booster is Note powered and operating at maximum Face Inside Antenna away from DT and gain. -
Page 11: Additional Faq
too small with a green/red blinking and the 1900 MHz bands? How do I know which MHz band my cell phone uses? light indicating reduced gain, contact the Customer Support Team for The DT4G works with all major North American assistance: 866-294-1660. -
Page 12: Optional Accessories
Inside Antenna Expansion Kit Kit 311129-5840 • 8000 MHz Yagi Directional Kit 309900-50N • 40’ RG58 Cable • 2 - Wall Panel antennas Kit 311203-5820 • 1 - 50 ohm 3-Way Splitter • Omni-Directional antenna Kit 309905-50N • 20’ RG58 Cable •... - Page 13 • 800 MHz Yagi Directional Kit 314475-0630 • 60’ RG6 Cable • 75 Ohm Wide Band Directional • N-Male to F-Female adapter • 30’ RG6 Cable Kit 311124-0650 Kit 314475-1175 • 1900 MHz Yagi Directional • 75 Ohm Wide Band Directional •...
-
Page 14: Safety Guidelines & Recommendations
Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. WARNING: Use only the power supply provided in this package. Use of a non-Wilson Electronics product may damage your equipment. WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). -
Page 15: Signal Booster Specifications
Signal Booster Specifications Model Number 470020 Connectors SMA-Female on the Inside Antenna / F-Female on the Outside Antenna Antenna Impedance 75 Ohms / 50 Ohms Frequency 698-716 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz 700 MHz 700 MHz 800 MHz 1700/2100 MHz 1900 MHz... - Page 16 Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.
