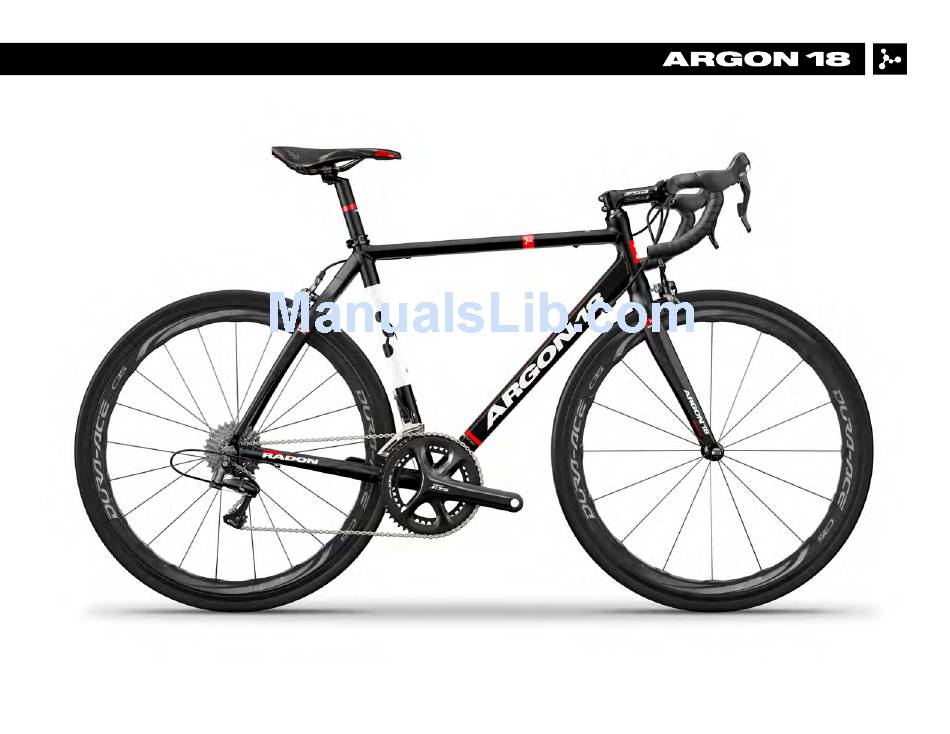

- Page 1 RADON : ASSEMBLY GUIDE Révision 3.0 - 06-02-2016...
- Page 2 4. Parts listing......... . .9-10 For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components, particularly carbon parts, need extra care when assembled.
-
Page 3: Assembly Overview
RADON : Assembly overview 1. Frame inspection 2. Cable housing installation 3. Seatpost adjustment IMPORTANT NOTICE: It is easier to install the cables and cable housings before the bearings. 4. Parts listing... -
Page 4: Frame Inspection
RADON : 1. Frame inspection When assembling a new frame, be sure to check if the following parts are assembled correctly. Parts installed on the frame Description Screw Tork Detail type Seatpost, Ø 31.6mm Seatpost Carbon paste Rear derailleur hanger... -
Page 5: Cable Housing Installation
RADON : 2. Cable housing installation 1. Install the front and rear derailleur cable starting at the top of the down tube. 2. Install the rear brake cable starting at the head tube. For the derailleur and brake housing, measure a sufficient length of housing to be able to turn the handlebar both ways correctly. - Page 6 RADON : 2. Cable housing installation (continued) Rear brake cable housing Font section: Measure the necessary cable housing to ensure proper rotation of the handlebar. Insert the cable through the shifter, then insert the cable housing into the top tube cable stopper.
-
Page 7: Cable Housing Installation
RADON : 2. Cable housing installation (continued) Front & rear derailleur: Pass the cables under the downtube then into the cable guide (5). -
Page 8: Saddle Adjustment
RADON : 3. Saddle adjustment 9.1 Install the saddle on the rocker (3f) and tighten the rail clamp (3g) using the screw (3d) 9.2 Adjust the angle, the offset of the saddle and tighten the bolt (3b). GREASE 9.3 The rocker and the rail clamp (3f- 3g) can be flipped to change the saddle offset. -
Page 9: Saddle Adjustment
RADON : 3. Saddle adjustment Seat clamp offset (5mm) by flipping the rail clamp (3g) and rocker (3f). - Page 10 RADON : 4. Parts Images are for reference only. Proportions are not accurate.
- Page 11 RADON : 4. Parts Name A18 SKU# Frameset Parts Radon frame Radon fork FK.RADON.XS.237A Seat post with the following parts assembled Radon seat post (ASP-1550) SP.RADON.237A Hex cap screw (M6*40mm S) Cylinder nuts SP special bolt (M6*45mm) Convexe M6 washer...
