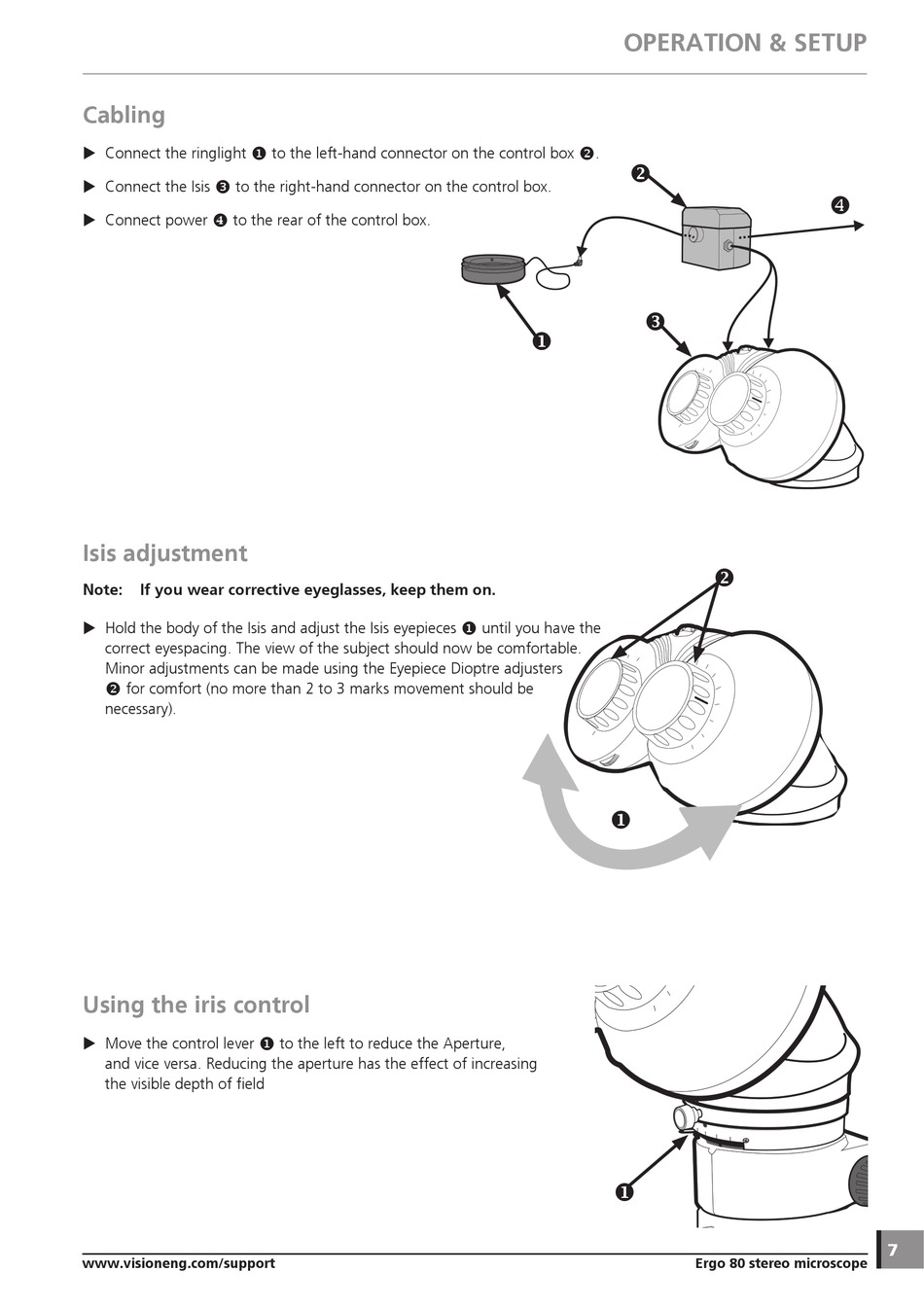

Cabling

X Connect the ringlight u
X Connect the Isis w to the right-hand connector on the control box.
X Connect power
x to the rear of the control box.

Isis adjustment

Note: If you wear corrective eyeglasses, keep them on.
X Hold the body of the Isis and adjust the Isis eyepieces
correct eyespacing. The view of the subject should now be comfortable.
Minor adjustments can be made using the Eyepiece Dioptre adjusters
v for comfort (no more than 2 to 3 marks movement should be
necessary).

Using the iris control

X Move the control lever
and vice versa. Reducing the aperture has the effect of increasing
the visible depth of field
