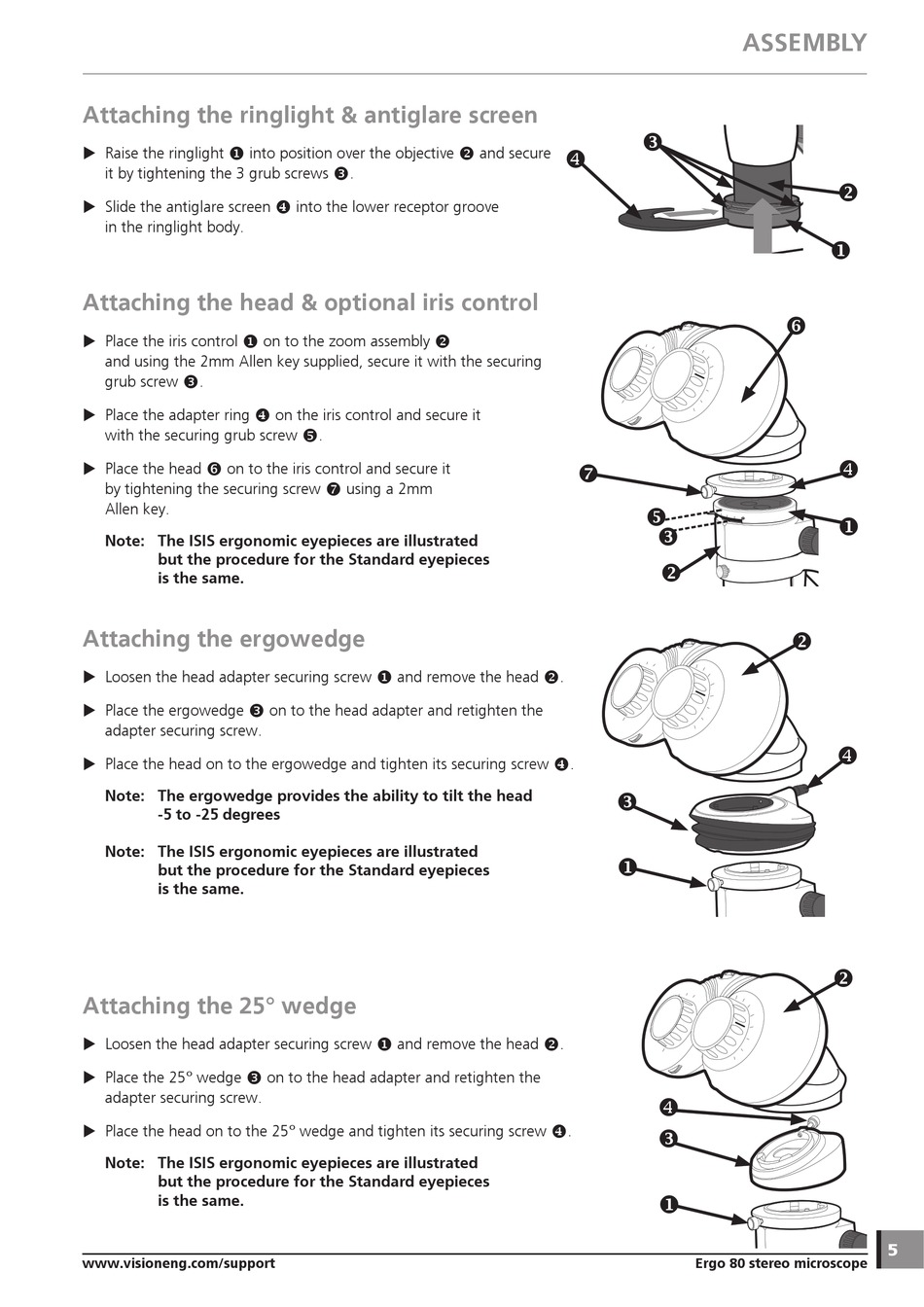

Attaching the ringlight & antiglare screen
X Raise the ringlight
u
into position over the objective
it by tightening the 3 grub screws
X Slide the antiglare screen
in the ringlight body.
Attaching the head & optional iris control
X Place the iris control
u
and using the 2mm Allen key supplied, secure it with the securing
grub screw
w
.
X Place the adapter ring
x
with the securing grub screw
X Place the head
z
on to the iris control and secure it
by tightening the securing screw
Allen key.
Note: The ISIS ergonomic eyepieces are illustrated
but the procedure for the Standard eyepieces
is the same.
Attaching the ergowedge
X Loosen the head adapter securing screw
X Place the ergowedge
w
adapter securing screw.
X Place the head on to the ergowedge and tighten its securing screw
Note: The ergowedge provides the ability to tilt the head
-5 to -25 degrees
Note: The ISIS ergonomic eyepieces are illustrated
but the procedure for the Standard eyepieces
is the same.
Attaching the 25° wedge
X Loosen the head adapter securing screw
X Place the 25° wedge
w
adapter securing screw.
X Place the head on to the 25° wedge and tighten its securing screw
Note: The ISIS ergonomic eyepieces are illustrated
but the procedure for the Standard eyepieces
is the same.
