Chapter I. Chelsio Unified Wire
3. After completion, a log file MassDeploy.log containing the summary of the process will be
created. Click OK on the dialog box that appears to exit the installer and view the log.
 Flashing Option ROM
1. Run the following command to flash Option ROM:
PS C:\Users\Administrator> .\ChelsioUwire-x.x.x.x.exe –action flashoptionrom
2. Flashing Option ROM is possible only if UM Agents were installed on nodes using this
installer. Click Yes to continue.
Chelsio T5/T4 Unified Wire for Windows

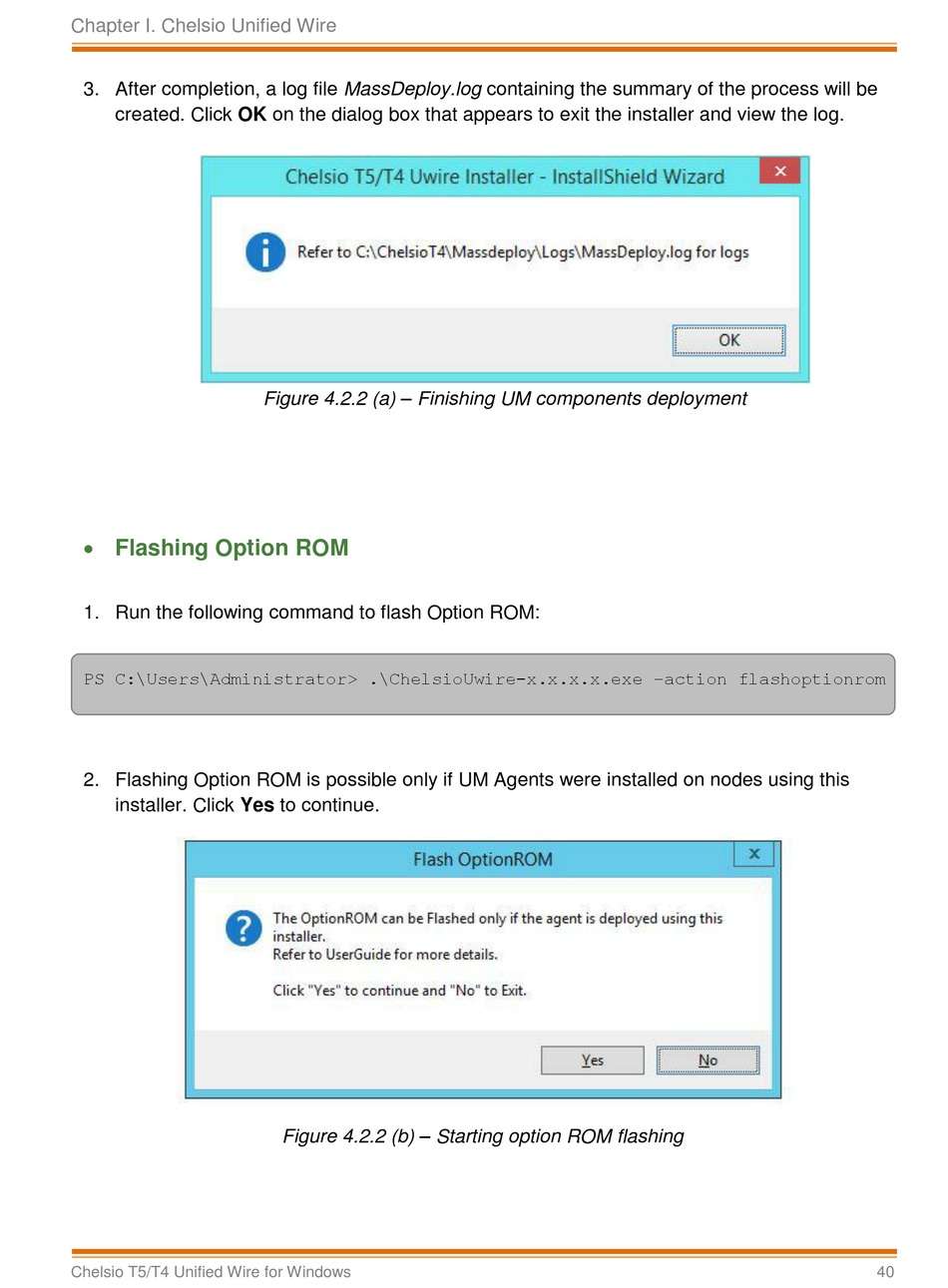

Figure 4.2.2 (a) – Finishing UM components deployment
Figure 4.2.2 (b) – Starting option ROM flashing
