Chapter III. Unified Wire Manager (UM)
Bypass Configuration
In the Bypass Configuration module, you can view the status and start/stop the BA server
accordingly. The adapter will redirect packets using the mode speciffied in the Default bypass
mode field unless otherwise specified in the Current bypass mode.
The Watchdog timer is used to ensure that if there is a software failure, the switch will enter the
default state. The Watchdog timeout value should be provided in milliseconds.

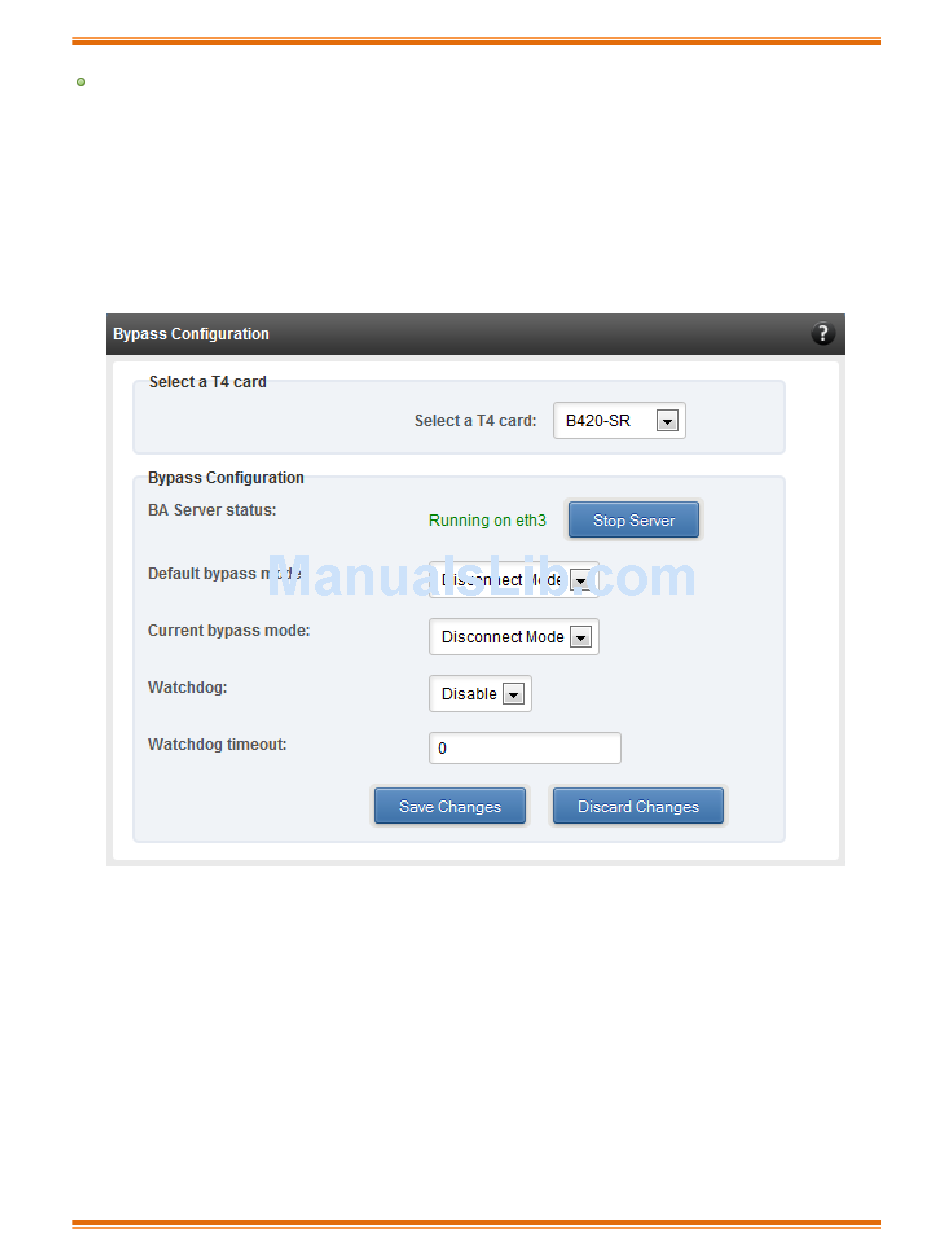

Figure 8.8.8 (a) - Bypass Configuration module
