Chapter I. Chelsio Unified Wire

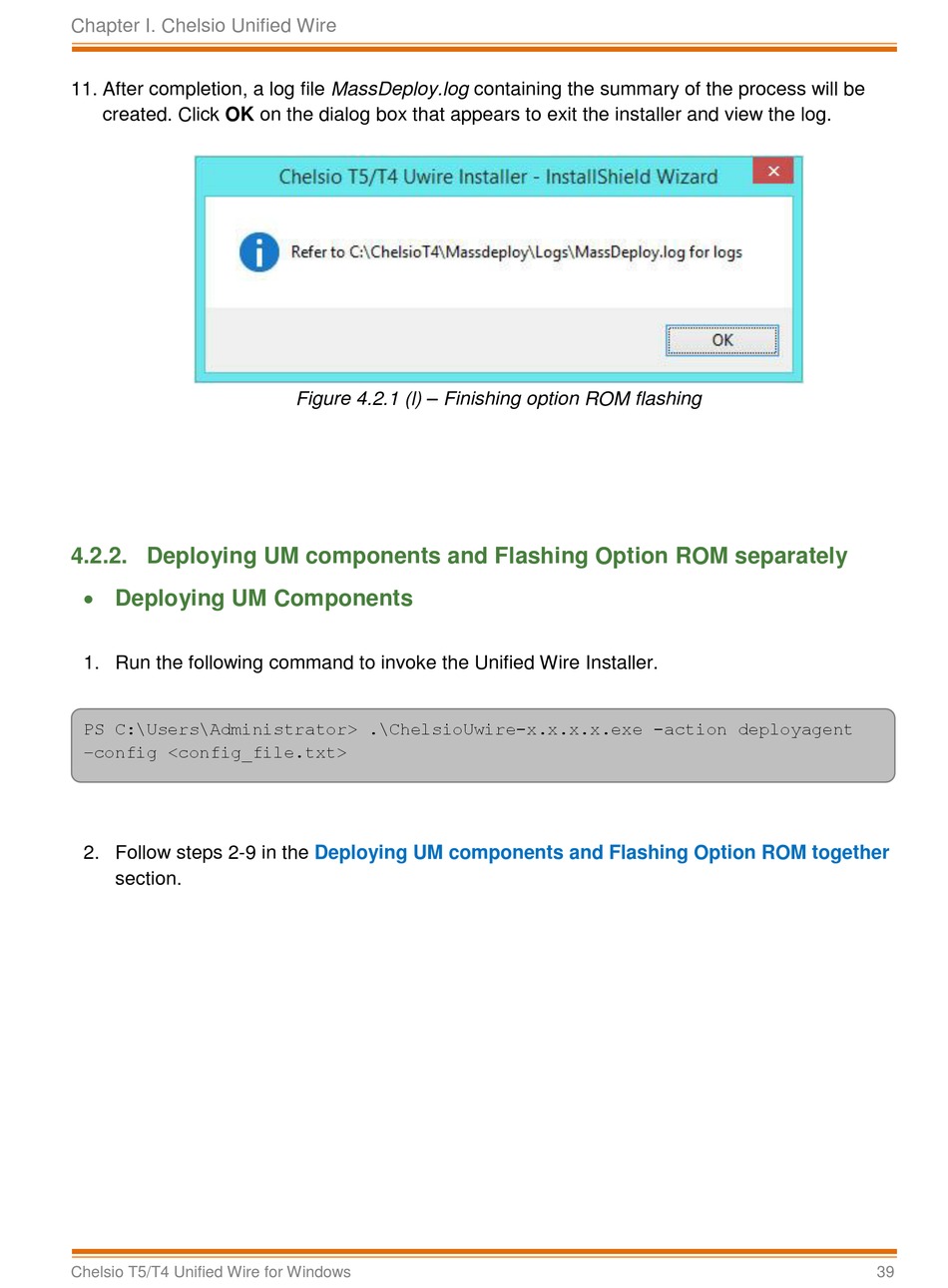

11. After completion, a log file MassDeploy.log containing the summary of the process will be
created. Click OK on the dialog box that appears to exit the installer and view the log.
4.2.2. Deploying UM components and Flashing Option ROM separately
 Deploying UM Components
1. Run the following command to invoke the Unified Wire Installer.
PS C:\Users\Administrator> .\ChelsioUwire-x.x.x.x.exe -action deployagent
–config <config_file.txt>
2. Follow steps 2-9 in the
section.
Chelsio T5/T4 Unified Wire for Windows
Figure 4.2.1 (l) – Finishing option ROM flashing
Deploying UM components and Flashing Option ROM together
