Chelsio T5 Installation And User Manual page 123

Chapter III. Unified Wire Manager (UM)
8.7.1.1. FCoE Initiator Card
FCoE Card Summary
Details pertaining to the card used such as model, firmware/hardware version etc, are provided
in this module.
FCoE Attributes
Information such as Interrupt modes (MSI/MSI-X/INTx), SCSI mode and the card state are
provided in this module.
Chelsio T5/T4 Unified Wire for Windows

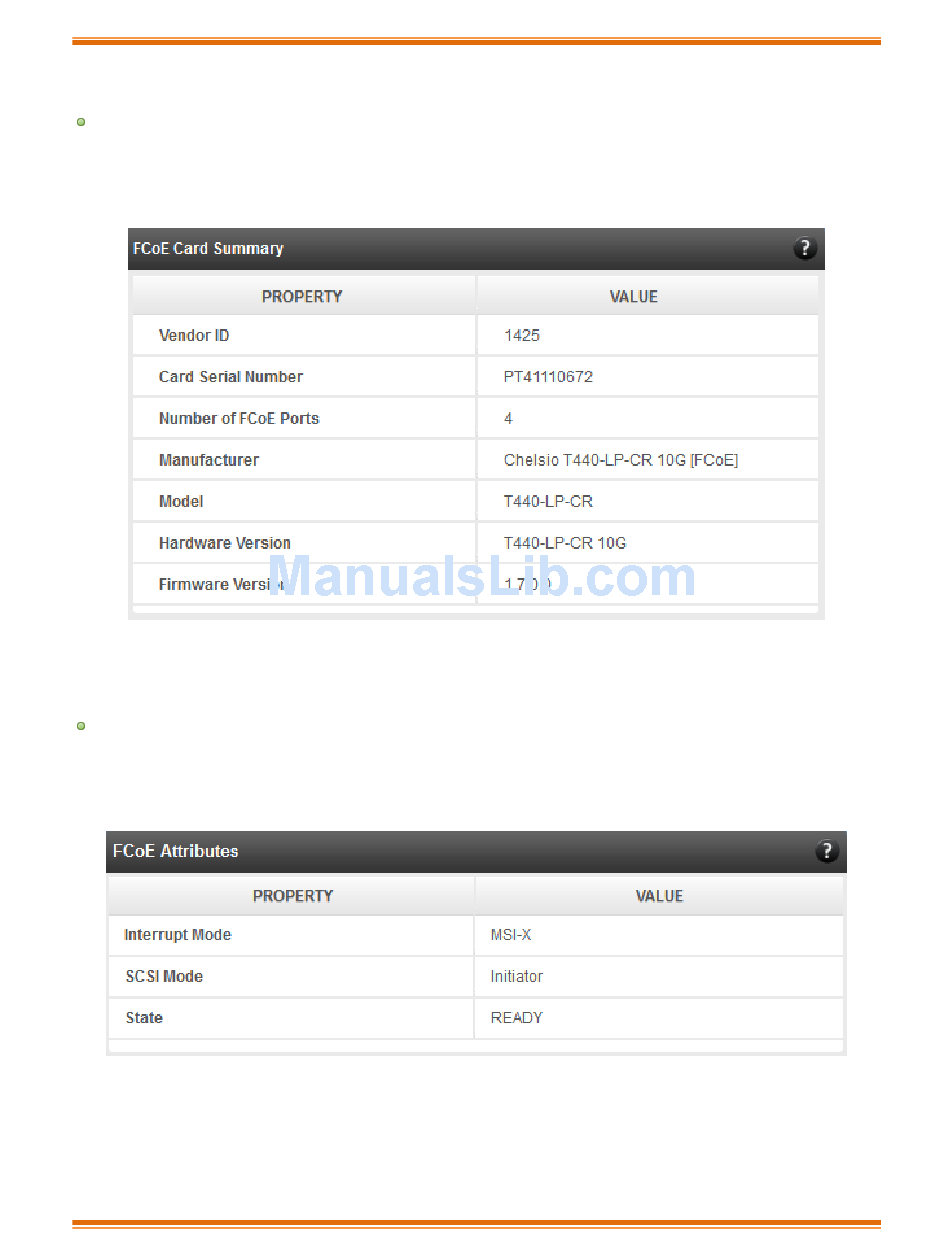

Figure 8.7.1.1 (a) – FCoE Card Summary module
Figure 8.7.1.1 (b) – FCoE Attributes module
123
