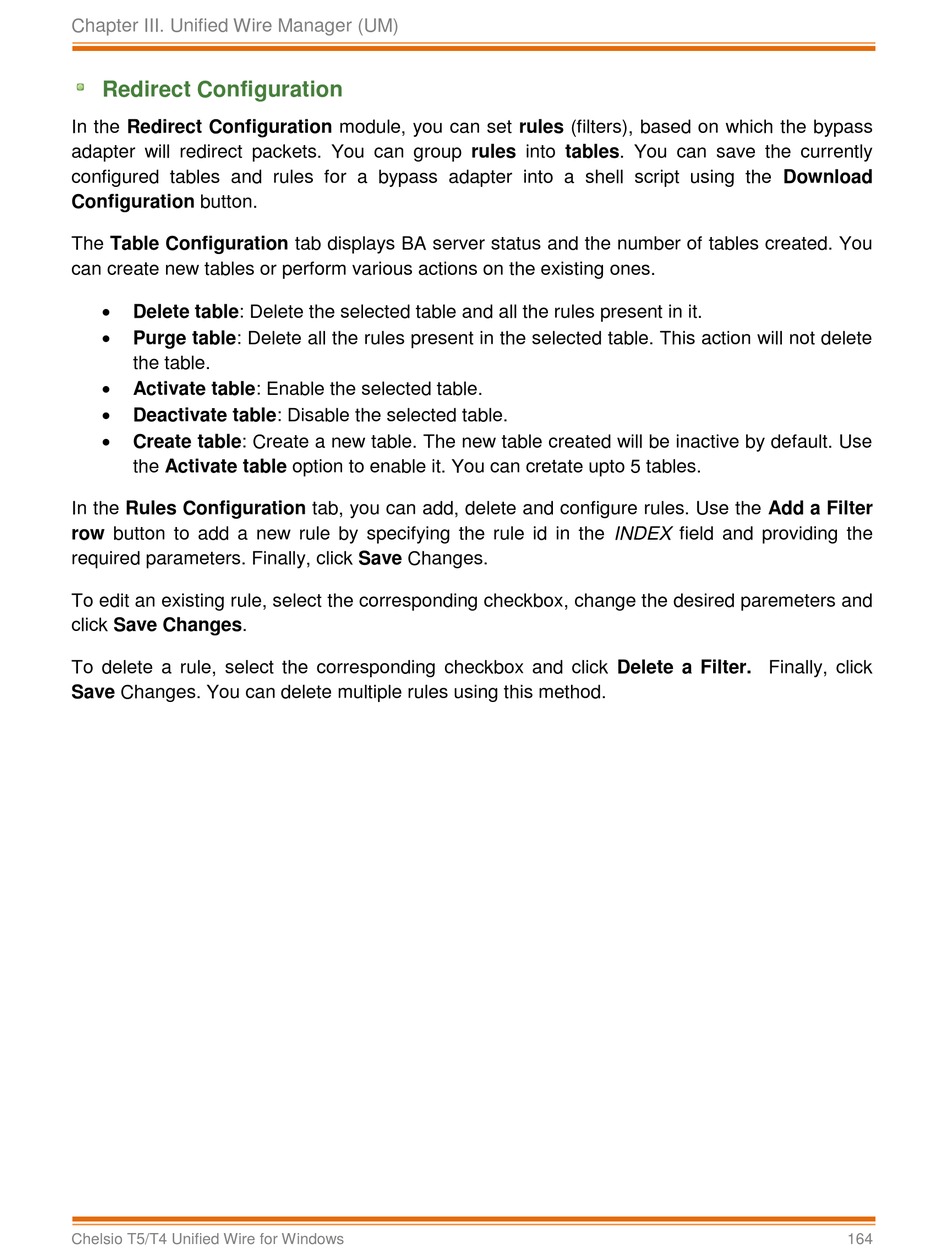

Chelsio T5 Installation And User Manual page 164

Chapter III. Unified Wire Manager (UM)
Redirect Configuration
In the Redirect Configuration module, you can set rules (filters), based on which the bypass
adapter will redirect packets. You can group rules into tables. You can save the currently
configured tables and rules for a bypass adapter into a shell script using the Download
Configuration button.
The Table Configuration tab displays BA server status and the number of tables created. You
can create new tables or perform various actions on the existing ones.

Delete table: Delete the selected table and all the rules present in it.

Purge table: Delete all the rules present in the selected table. This action will not delete
the table.

Activate table: Enable the selected table.

Deactivate table: Disable the selected table.

Create table: Create a new table. The new table created will be inactive by default. Use
the Activate table option to enable it. You can cretate upto 5 tables.
In the Rules Configuration tab, you can add, delete and configure rules. Use the Add a Filter
row button to add a new rule by specifying the rule id in the INDEX field and providing the
required parameters. Finally, click Save Changes.
To edit an existing rule, select the corresponding checkbox, change the desired paremeters and
click Save Changes.
To delete a rule, select the corresponding checkbox and click Delete a Filter. Finally, click
Save Changes. You can delete multiple rules using this method.
