Page 1: User Manual
CPA12 - 24 - 36 Power Amplifier AUDAC PROFESSIONAL AUDIO EQUIPMENT CPA12 - 24 - 36 Power amplifier User Manual & Installation Guide... - Page 2 A U D A C P R O F E S S I O N A L A U D I O E Q U I P M E N T User Manual & Installation Guide AUDAC http://www.audac.eu info@audac.eu...
-
Page 3: Table Of Contents
Index INTRODUCTION ............................................3 ENVIRONMENT............................................. 4 SAFETY REQUIREMENTS ......................................... 5 CAUTION – SERVICING..........................................5 OVERVIEW FRONT AND REAR PANEL OF THE CPA12 - 24 - 36..........................6 FRONT ................................................6 REAR ................................................6 FRONT PANEL – DETAIL........................................... 7 REAR PANEL – DETAIL..........................................7 GETTING STARTED............................................. -
Page 4: Introduction
(70V, 100V) output with EURO block terminal, a built-in 400Hz high-pass filter and a power output of 120W for the CPA12; 240W for the CPA24 and 360W for the CPA36. They have a frequency range of 40Hz to 16kHz ± 3dB, a low distortion and low noise level and an adjustable input level (from -12dB to 0dB). -
Page 5: Environment
Chapter Environment Do not place this unit in an enclosed environment such as a bookshelf or closet. Ensure that there is adequate ventilation to cool the unit. Do not block the ventilation openings. Do not place the unit in environments which contain high levels of dust, heat, moisture or vibration. -
Page 6: Safety Requirements
Safety Requirements Always handle the unit with care. Only use a grounded socket outlet and a power cord with grounding plug to plug in the unit. This unit is not a toy. It should not be operated by children. Do not stick objects through the openings of the CPA12 - 24 - 36. Do not open the unit (risk for electrical shock). -

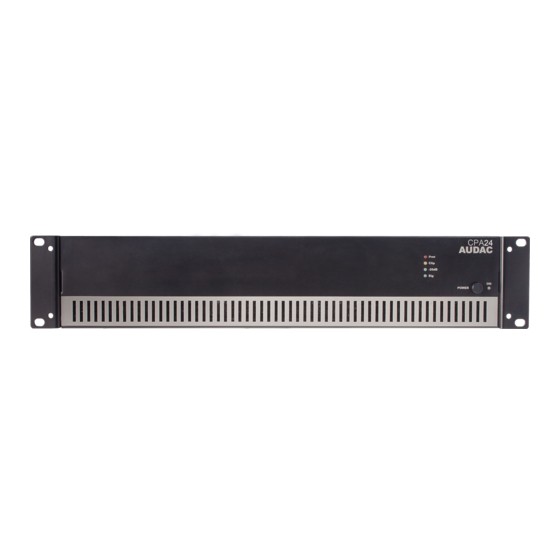

Page 7: Overview Front And Rear Panel Of The Cpa12 - 24 - 36
Chapter Overview front and rear panel of the CPA12 - 24 - 36 FRONT Idem CPA 12 & 24 REAR Idem CPA 12 & 24 6 6 6 6... -
Page 8: Front Panel - Detail
Air flow Level adjustment knob ground loop) fuse holder Voltage 115/120 Vac 220/230/240 Vac Model CPA12 T4AL / 250V T3.15AL / 250V CPA24 T8AL / 250V T4AL / 250V CPA36 T12AL / 250V T6.3AH / 250V 7 7 7 7... -
Page 9: Getting Started
Chapter Getting Started Before you install the CPA12 - 24 - 36 power amplifier, make sure you disconnect it: if the device is powered-up, you push the power button to switch it off. Turn the level control down (minimal level). When installed, the CPA12 - 24 - 36 can be switched on by pushing the power button on the front panel. -
Page 10: Connections
Connect the COM terminal to the negative (-) speaker lead; connect one of the other terminals to the positive (+) speaker lead. Impedance and output voltage are shown below: CPA12 4 / 22V 41 / 70V 83 / 100V CPA24 4 / 31V 21 / 70V 41 / 100V CPA36 4 / 38V 13.6 / 70V 27.8 / 100V... -
Page 11: Wrong Connection
WRONG CONNECTION The figure below shows a WRONG connection. Caution: NEVER use both the low-Z (4 ) and Hi-Z (70V and 100V) terminals at the same time. -
Page 12: Block Diagram
Block diagram... -
Page 13: Additional Information Cpa12 - 24 - 36
Chapter Additional information CPA12 - 24 - 36 TECHNICAL SPECIFICATIONS CPA12 CPA24 CPA36 Rated output 120W 240W 360W (at T.H.D. 1.0%, 1kHz) Gain control -12dB ~ 0dB Input sensitivity 1.0 ± 0.1Vrms / 10Kohm (at balanced line) High-pass filter -3dB... -
Page 14: Personal Notes
Personal notes...
