- Page 1 PRE116/126 User Manual www.audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu.
-
Page 3: Table Of Contents
Index Introduction Precautions Safety requirements Caution servicing EC Declaration of Conformity Waste of Electrical and Electronic Equipment (WEEE) Caution Chapter 1: Pin connections and connectors Connection standards Chapter 2: Front & rear panel Front panel overview Front panel description Rear panel overview Rear panel description Chapter 3: Additional information Technical specifications... -
Page 5: Introduction

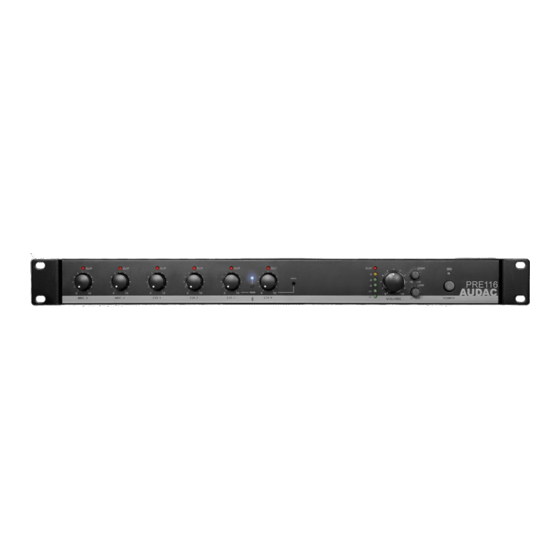

Introduction 6-Channel stereo preamplifiers The PRE1xx series are simple but versatile preamplifiers, offering a multifunctional solution for installations where multiple voice and music sources need to be mixed to one or two (only PRE126) output zones. The stereo design with six inputs allows connecting any type of audio source such as microphones, portable devices with Bluetooth and various balanced or unbalanced line level audio sources. -
Page 6: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE. DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET. -
Page 7: Waste Of Electrical And Electronic Equipment (Weee)
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) The WEEE marking indicates that this product should not be disposed with regular houshold waste at the end of its life cycle. This regulation is created to prevent any possible harm to the environment or human health. -
Page 9: Chapter 1: Pin Connections And Connectors
Chapter 1 Pin connections and connectors CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed corresponding to international wiring standards for professional audio equipment. Cinch (RCA): For unbalanced line input connections Tip: Signal Sleeve: Ground White: Left... -
Page 10: Chapter 2 Front & Rear Panel
LED will start blinking for about 2 minutes. During this period, the device can be discovered and is indicated as Bluetooth ID ‘AUDAC PRE series’. When both devices have been paired before, the transmitter will be recognized by the receiver and it will allow continuous pairing... -
Page 11: Rear Panel Overview
Output master control: Each output section (only one for PRE116) contains a master volume control, two band tone control and 6-segment VU LED bar. The master volume control allows regulation of the overall output level, while two-band tone control allows bass / treble adjustment within a range of ±... - Page 12 Priority mute contact: A priority mute contact is provided with each output, allowing to completely mute the music at presence of a contact closure between both terminals. This contact is convenient for situations where a separate emergency system is installed and complete background music muting is required at occasion of a (fire) alarm.
-
Page 13: Chapter 3: Additional Information
Chapter 3 Additional information Technical specifications Inputs Mic 1 & 2 Type Balanced microphone Connector Female XLR Sensitivity -6 dB ~ -50 dB Other 3-Band tone control Phantom power (15V DC) Talkover Channel 1 Type Balanced stereo line Connector Female XLR (2x) Sensitivity +4 dB ~ -20 dB Other... - Page 14 Power supply Type Switching mode Range 100-240V AC - 50/60 Hz Power consumption 12 Watt Dimensions (W x H x D) 482 x 44 x 330 mm Unit height 1 HE Weight 4.1 Kg...
-
Page 15: Notes
Notes... - Page 16 Notes...
