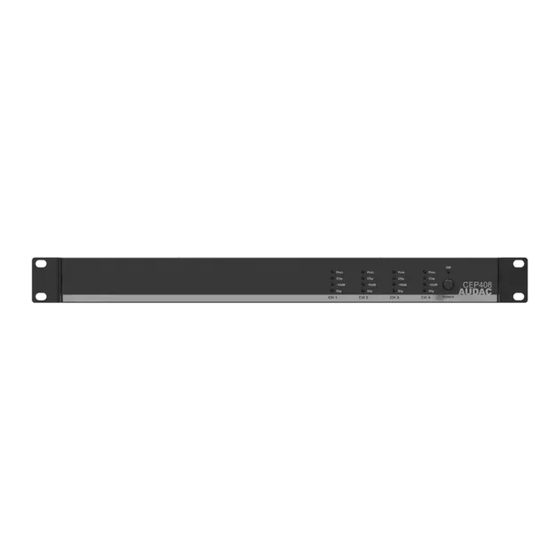

AUDAC CEP Series Quick Start Manual

CEP series
Multi-zone Amplifier
The quick start guide gives you an overview of all the front and rear panel controls and connections on the
CEP series amplifiers. The CEP series include the CEP408 (4 x 80 Watt) and the CEP 803 (8 x 30 Watt).
It allows you to get started with the installation of it in your project.
To get a detailed explanation of all functions, please check the complete manual which is available on the
web page https://manuals.audac.eu/CEP408 or scan the QR code as shown on top of this page.
Front:
1) Indicator LED (VU):
The (VU) indicator leds indicate the output level and status
of the amplifier (Signal / -10dB / Clip / Protect).
Back:
1
1) AC Power inlet:
The mains power supply (100-240V AC - 50/60 Hz) has
to be applied to this AC power inlet. The connection is
made by an IEC C14 power connector.
CEP series
CH 1
2) Power switch with LED:
Allows to power the system ON and OFF. The indicator LED
illuminates in blue when switched ON.
standby (energy-saving) mode, the power LED will illuminate
in orange colour. The amplifier switches automatically to
standby mode when no signal is available for 30 minutes.
SPEAKER OUTPUT
CH 4 CH 3 CH 2 CH 1
Auto
Standby
100V 100V 100V 100V
70V 70V 70V 70V
COM COM COM COM
3
2) Rackspace enclosure
The CEP series is equipped with mounting options for a 19"
1HE rackspace.
Quick start guide
1
Prot Prot Prot Prot
Clip Clip Clip Clip
-10dB -10dB -10dB -10dB
Sig Sig Sig Sig
CH 2 CH 3 CH 4
LINK
4/3
Input adj.I
CH 4
ON
CEP408
2
When switched to
2
INPUT
LINK LINK
3/2 2/1
Input adj. Input adj. nput adj.
CH 3 CH 2 CH 1
4
audac.eu
