Figure 6-36: A30 Clock Board Or A50 Pg & Output Board Troubleshooting Procedure - Tektronix DG2030 Service Manual

Troubleshooting
6 60

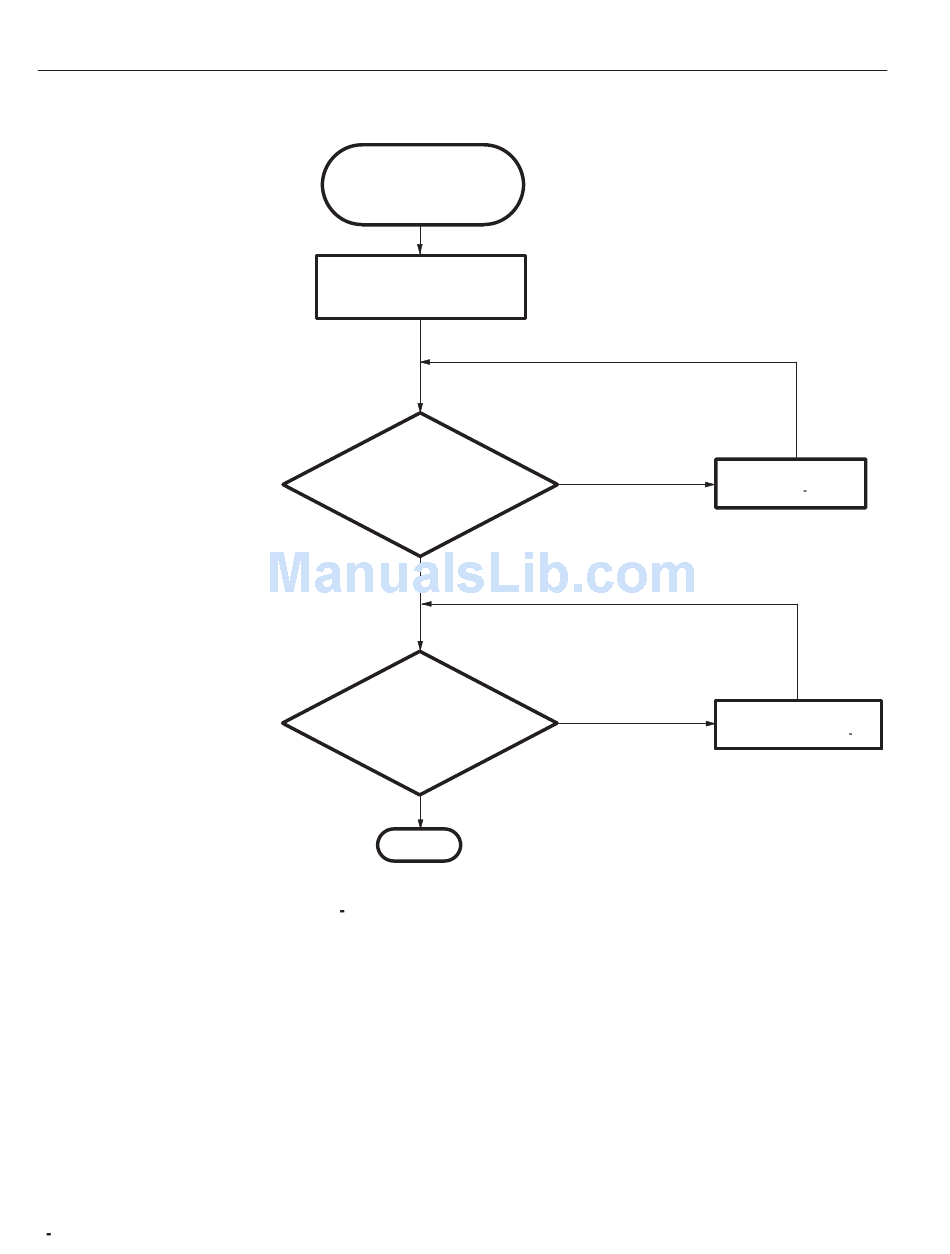

Use this procedure to determine if
the A30 Clock board or A50 PG &
Clock board is bad.
Perform the Repeat Mode Check
procedure described in Section 4
"Performance Verification".
Are the DATA Outputs (Ch0 to Ch4)
and Clock Output signal output?
Yes
Are the DATA Outputs (Ch0 to Ch4)
and Clock Output voltages normal ?
Yes
Done.
Figure 6 36: A30 Clock board or A50 PG & Output board troubleshooting procedure
No
Replace the A30 Clock
board (page 6 38).
No
Replace the A50 PG &
Output board (page 6 38).
DG2030 Service Manual
