UNiK A
Professional Power Amplif iers
Active
Active
UNiK A
Clip
Clip

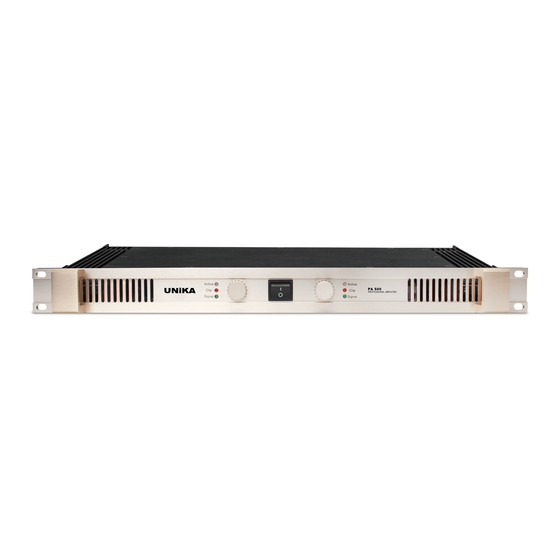

PA 500
PROFESSIONAL AMPLIFIER
Signal
Signal
Index
02 Important Precautions
02
Introduction
03 Front Panel
04 Rear Panel
05 Set Up
07 Operating Modes
08 Protection
08 Features
09 Specifications
User Instructions
This booklet contains important information concerning the proper and safe operation of your new amplifier.
PA-Series
PA-500
Made in Taiwan
Advertisement
Related Manuals for Unika PA Series
Summary of Contents for Unika PA Series
- Page 1 UNiK A Professional Power Amplif iers Active Active UNiK A Clip Clip PA 500 PROFESSIONAL AMPLIFIER Signal Signal User Instructions This booklet contains important information concerning the proper and safe operation of your new amplifier. Index PA-Series PA-500 Made in Taiwan 02 Important Precautions Introduction 03 Front Panel...
- Page 2 UNiKA PA-500 This symbol is intended to alert the user to the presence of This symbol is intended to alert the user of non insulated "dangerous voltage" within the product's the presence of important operating and CAUTION enclosure that may be of sufficient magnitude to constitute...
-
Page 3: Installation
Congratulations and thank you for purchasing PA-500 amplifier. This moisture. amplifier is representation of UNiKA’s continuing commitment to produce Do not spill water or other liquids into or on to your unit. the best and highest quality audio products at an affordable price. This amplifier is designed to provide a big impact in sound reproduction. - Page 4 At this point the channel will begin to distort. Under heavy clipping activity, lower the channel's gain 2. Rack Handle - PA Series amplifiers are designed with rack handle control to reduce the risk of damage to your speakers and at two each side.
- Page 5 UNiKA PA-500 Rear Panel Important Precautions Introduction Front Panel Set Up Operating Modes Protection Features Specifications PA-500 REAR PANEL CAUTION: REPLACE WITH SAME TYPE FUSE AND RATING BRIDGE CH 2 INPUT CH 1 INPUT PUSH Balanced PUSH Balanced CH 2...
- Page 6 UNiKA PA-500 Set Up Important Precautions Introduction Front Panel Rear Panel Operating Modes Protection Features Specifications SET UP INPUTS - The PA-500 amplifier allows you to use two types of input connectors per channel, a XLR female jack for balanced connections and a 1/4”...
- Page 7 UNiKA PA-500 Set Up Important Precautions Introduction Front Panel Rear Panel Operating Modes Protection Features Specifications BANANA PLUG: (Figure 6) When connecting your speakers to the amplifier using banana plugs, be sure that the red and black caps on the binding post are completely screwed in. Insert the banana plugs into the caps of the binding post, be sure Figure that the banana plugs are inserted securely to avoid the risk of popping out.
- Page 8 UNiKA PA-500 Operating Modes Important Precautions Introduction Front Panel Rear Panel Set Up Protection Features Specifications OPERATING MODES STEREO OPERATION : Page 7/Figure 10 details an example of a typical stereo set-up. Connect your inputs into channels one and two of the amplifier.
- Page 9 UNiKA PA-500 Protection Features Important Precautions Introduction Front Panel Rear Panel Set Up Operating Modes Specifications PROTECTION SAFE POWER LEVELS AT DIFFERENT OUTPUT LOADS: 8-Ohm Loads: The amplifier can operate at its rated power level without risk of overheating. However, it may caused excessive temperature if it is pushed hard enough to continually light the “CLIP”...
-
Page 10: Specifications
UNiKA PA-500 Specifications Important Precautions Introduction Front Panel Rear Panel Set Up Operating Modes Protection Features SPECIFICATIONS PA-500 R.M.S. Output Power 2 Ch Driven 4ohms 250W 4ohms/8ohms 1KHz 1% THD 8ohms 150W R.M.S. Output Power Bridged Mono 500W 8ohms 1KHz 1% THD Input Sensitivity 0.775V... - Page 11 UNiKA PA-500 Important Precautions Introduction Front Panel Rear Panel Set Up Operating Modes Protection Features Specifications page 10...
- Page 12 UNiK A Professional Power Amplif iers...
