Summary of Contents for DAPAudio MMIX-4

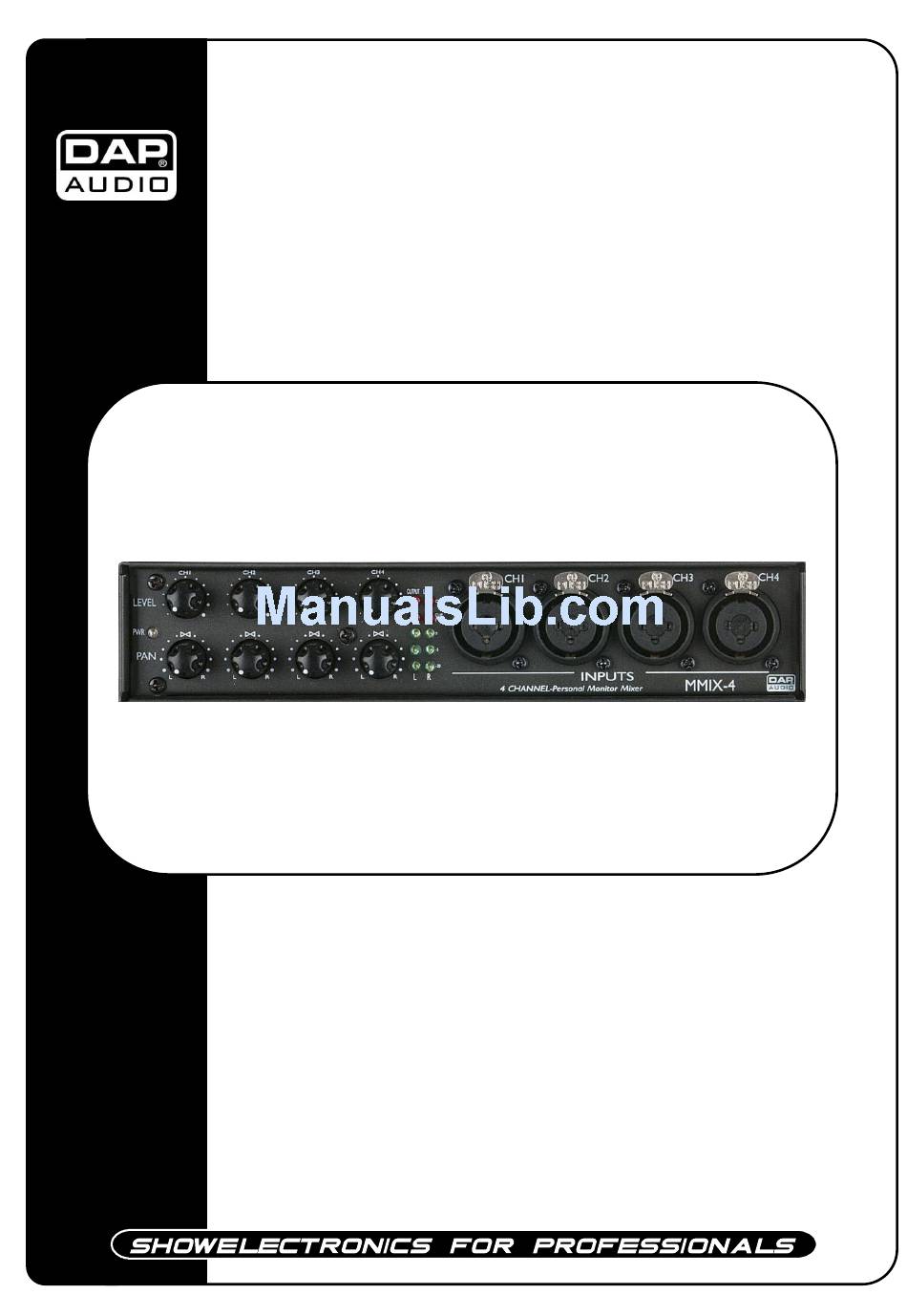

- Page 1 MMIX-4 ORDERCODE D1965 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP MMIX-4 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP MMIX-4 Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................5 Claims ..................................5 Description of the device ............................. 6 Features ..................................6 Overview ..................................6 Frontview ................................ -
Page 4: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: • DAP MMIX-4 • AC-adapter DC16V • User manual... -
Page 5: Operating Determinations
Never leave any cables lying around. Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. ... -
Page 6: Connection With The Mains
Connection with the mains. Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description Of The Device
Description of the device The DAP MMIX-4 is a basic 4 channel mixer that can be used for many applications. Because of the split outputs it is ideal to use as sub-mixer or monitor mixer when you use in ear systems. It has 4 combo inputs for line or instrument signals and an aux input which makes it easy to expand if you like to combine more MMIX-4 mixers. -
Page 8: Frontview
Frontview Fig. 2 1. Channel 1 level control Use this control to adjust the level of channel 1. 2. Channel 2 level control Use this control to adjust the level of channel 2. 3. Channel 3 level control Use this control to adjust the level of channel 3. 4. -
Page 9: Rear
19. Main mix stereo outputs Connect these outputs to a (headphone)amplifier with unbalanced inputs or to the aux (20) inputs of another MMIX-4. 20. Aux stereo/mono inputs Connect a mono or stereo signal source to this aux bus. Make sure to use the left input if you want to connect a mono signal source. -
Page 10: Installation
Make sure to power-up your MMIX-4 before your power amplifiers are switched on in order to avoid loud transients, which could damage your speakers or annoy your audience. Setup examples Example 1: personal in ear mix Fig. -
Page 11: Example 2: Expanding Your Mixer With Additional Monitor Groups
Example 2: Expanding your mixer with additional monitor groups Fig. 5... -
Page 12: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 13: Maintenance
Compensation of interference with balanced connections Maintenance DAP MMIX-4 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Product Specifications
Product Specifications Input connectors: XLR / Jack combo Main output connectors: 6,3mm Jack Aux input connectors: 6,3mm Jack Split output connectors: Output level (max): 13 dB Frequency response: 22-22.000 Hz Distortion: <0.025% Noise: <61dB Input impedance: 5.9 KOhm Aux impedance: 18,2 KOhm Output impedance: 1KΩ...
