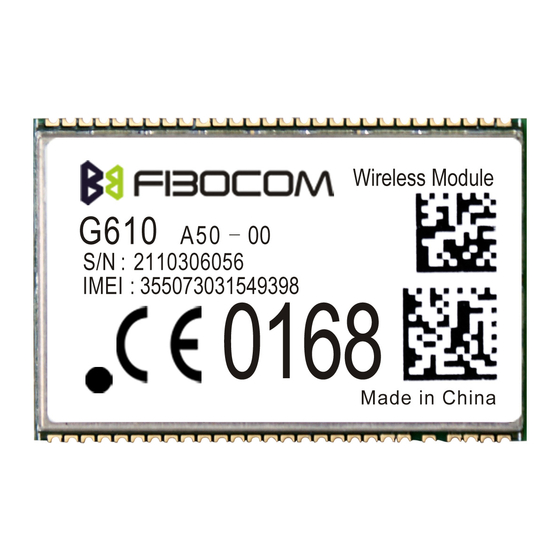

Fibocom G610 Hardware User Manual

Gprs module
Hide thumbs Also See for G610:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Hardware User Manual
G610 GPRS Module
Hardware User Manual
Version: V1.1.4
Date: 2013-01-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fibocom G610

Summary of Contents for Fibocom G610

  • Page 1 G610 GPRS Module Hardware User Manual Version: V1.1.4 Date: 2013-01-07...

  • Page 2: Revision History

    Copyright ©2013 Fibocom Wireless Inc. All rights reserved. Trademarks Notice The FIBOCOM Logo is registered by Fibocom Wireless Inc. All other product or service names or logos are the property of their respective owners. Copyright ©2013 Fibocom Wireless Inc. All rights reserved.

  • Page 3: Table Of Contents

    Power On/Off Operation ..............................16 3.4.1 Turning the G610 on ..............................16 3.4.2 Turning the G610 off ..............................18 3.4.3 Turning the G610 off Using AT Command ....................... 18 Sleep Mode ................................... 19 3.5.1 Activating Sleep Mode ............................19 3.5.2 Serial Interface during Sleep Mode ........................19 3.5.3 Terminating Sleep Mode ............................
  • Page 4 Application Interface Pin Assignment by Number ....................37 Mechanical Design .................................... 39 G610 Mechanical Specifications ........................... 39 Recommended PCB Layout ............................40 Antenna Design ................................... 41 Reflow Temperature Profile ............................. 43 G610 GPRS Module Hardware User Manual Page 4 of 43...

  • Page 5: Preface

    G610 GPRS module in a host application. This manual gives a complete set of hardware features and functions that may be provided by G610. The availability of any feature or function, which is described in this manual, depends on the hardware revision and software version of a specific G610 GPRS module.
  • Page 6 ETSI TS 100 977 (GSM 11.11 version 6.3.0 Release 1997) ITU-T V.25ter ETSI EN 300 908 (GSM 05.02 version 8.5.1 Release 1999) ETSI TS 101 356 (3GPP TS 07.60 version 7.2.0 Release 1998) G610 GPRS Module Hardware User Manual Page 6 of 43...

  • Page 7: Introduction

    G610 A50-00 & G610 A50-01: Dual band (900/1800 MHz)  The G610 is similar to a condensed cellular phone core, which can be integrated into any system or product that needs to transfer voice or data information over a cellular network. Thus, it significantly enhances the system's capabilities, transforming it from a standalone, isolated product to a powerful high-performance system with global communications capabilities.

  • Page 8: Product Specifications

    2.2 Product Specifications Product Features Quad band (Model: G610 Q50-00) 850/900/1800/1900 MHz Operating systems: Dual band (Model: G610 A50-00 & G610 A50-01) 900/1800 MHz Physical Characteristics Size: 31.3 x 20.2 x 3.0 mm Mounting: SMT, 55 pin Weight: 3.5grams Operational temperature: -40°C to +85°C...
  • Page 9 Low Temperature: 25±2ºC Damp Heat Cycling Humidity: 95% IEC60068 Repetition Times: 4 Test Duration: 12 h + 12 h Low Temperature: –40±2ºC High Temperature: 85±2ºC Temperature Shock IEC60068 Temperature Change Interval: < G610 GPRS Module Hardware User Manual Page 9 of 43...
  • Page 10 Clash Test Pulse Duration: 6 ms IEC60068 Repetition Time: 6 directions. 1000 times for each direction. Others Detect BATT voltage Detect extend analog voltage RTC inside Flexible status indicator Extend reset G610 GPRS Module Hardware User Manual Page 10 of 43...

  • Page 11: Hardware Interface Description

    The following paragraphs describe in details the hardware requirements for properly interfacing and operating the G610 module. 3.1 Architecture Overview The G610 consists of the following blocks: 3.1.1 Digital Block Micro-controller Unit (MCU) for system and application code execution ...

  • Page 12: Gsm Transceiver Block

    Filter - Quad-band SAW filter that selects the required receive band  3.2 Operating Modes The G610 incorporates several operating modes. Each operating mode is different in the active features and interfaces. The table summarizes the general characteristics of the G610 operating modes and provides general guidelines for operation.

  • Page 13: Power Supply

    3.3 Power Supply The G610 power supply must be a single external DC voltage source of 3.3V to 4.5V. The power supply must be able to sustain the voltage level during a GSM transmit burst current serge, which may reach 2.0A.

  • Page 14: Power Consumption

    To minimize the losses and transients on the power supply lines, it is recommended to follow these guidelines: Use a 1000uF or greater, low ESR capacitor on the G610 supply inputs. The capacitor should be located as ...
  • Page 15 2000 GSM voice GSM850/900 PCL=5 1 TX slot 1 Rx slot DCS/PCS PCL=0 1400 GSM850/900 PCL=5 Average current GPRS Class I gprs-avg DCS/PCS PCL=0 2 TX slot 2 Rx slot G610 GPRS Module Hardware User Manual Page 15 of 43...

  • Page 16: Power On/Off Operation

    3.4.1 Turning the G610 on When the G610 is powered off, the PMU operates at low power mode, with only the RTC timer active. G610 will power on again when the POWER_ON signal is falling edge. Asserting the POWER_ON signal low for a minimum of 800 milliseconds will turn G610 on in default power on mode.
  • Page 17 The figure illustrates the G610 power on is succeeded. The figure illustrates the G610 power on is failed. G610 GPRS Module Hardware User Manual Page 17 of 43...

  • Page 18: Turning The G610 Off

    3.4.2.1 Turning the G610 off Using POWER_ON The POWER_ON signal is set high using an internal pull up resistor when power is applied to G610. When the POWER_ON signal is falling edge and keeping low for a minimum of 3 seconds will turn G610 off. This will initiate a normal power-off process, which includes disabling of all applications interfaces (UART, SIM card, audio, etc.) and logout the network connection.

  • Page 19: Sleep Mode

    3.5.1 Activating Sleep Mode By default, the G610 powers on in Idle Mode. The ATS24 default is 0. In this mode the G610 interfaces and features are functional and the module is fully active. Sleep mode is activated by the ATS24 command. Such as ATS24 would be activated Sleep mode at soon.

  • Page 20: Terminating Sleep Mode

    During Sleep mode, G610 continues monitoring the GSM network for any incoming data, message or voice calls. When G610 receives an indication from the network that an incoming voice call, message or data is available, it automatically wakes up from Sleep mode to alert the application. When G610 wakes up to Idle mode all its interfaces are enabled.
  • Page 21 2) The G610 serial interface is set NONE FLOW (AT+IFC=0,0)(The default value) Most of serial data from DTE to G610 will be lost when the G610 serial interface is set NONE FLOW (default value). The G610 will receive the data and make responses after it go back to Idle mode.

  • Page 22: Real Time Clock

    When the main power supply and VBACKUP is disconnected from G610, the RTC timer will reset and the current time and date will be lost. On the next G610 power-up the time and date will need to be set again automatically or manually.

  • Page 23: Rtc Application

    G610 includes one completely independent serial communications interfaces (UART). The G610 UART is a standard 8-signal bus. This UART is used for all the communications with G610 - AT commands interface, GPRS/EGPRS data and CSD data, programming and software upgrades.

  • Page 24: Ring Indicate

    CTS_N Pin 41 DCD_N The G610 UART supports baud rates 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400bps. Auto baud rate detection is supported for baud rates up to 230400bps. All flow control handshakes are supported: hardware or none.

  • Page 25: Dcd Indicate

    GSM SIM card. The G610 does not incorporate an on-board SIM card tray for SIM placement. The SIM must be located on the user application board, external to the G610. The G610 SIM interface includes all the necessary signals, which are routed to the interface connector, for a direct and complete connection to an external SIM.

  • Page 26: Sim Design Guidelines

    3.8.2 SIM Design Guidelines The SIM interface and signals design is extremely important for proper operation of G610 and the SIM card. There are several design guidelines that must be followed to achieve a robust and stable design that meets the required standards and regulations.

  • Page 27: The First Audio Channel: Microphone

    3dB steps kΩ AC Input Impedance 3.9.2 The First Audio Channel: Speaker This channel is the G610 power-up default active output for voice calls and DTMF tones. It is designed as a differential output with 32Ω impedance. Parameter Conditions...

  • Page 28: The Second Audio Channel: Speaker

    1.38 3.9.5 Audio Design The audio quality delivered by G610 is highly affected by the application audio design, particularly when using the analog audio interface. Therefore, special care must be taken when designing the G610 audio interface. Improper design and implementation of the audio interface will result in poor audio quality.

  • Page 29: Switch Audio Channel By Io

    3.9.6 Switch Audio Channel by IO The G610 support switch audio channel by IO pin. The default level of this pin is high. This IO pin is took effect under 1st channel is activated. When the IO is pulled low, the audio channel will be switched from 1st channel to 2nd channel automatically.

  • Page 30: Controls And Indicators Interface

    The G610 incorporates a regulated voltage output VDD. The regulator provides a 2.85V output for use by the customer application. This regulator can source up to 10mA of current to power any external digital circuits. When the G610 started up by power on signal, The VDD is output. So it can be Illustrating module start up. Note: The VDD regulator is powered from the G610's main power supply, and therefore any current sourced through this regulator originates from the G610 BATT supply.

  • Page 31: External Reset

    50Hz - 20kHz 3.11.2 External Reset The RESET_N input signal would be power off the G610 immediately. This signal is set high after power up, when G610 is operating. It is set low when G610 is powered off. When the RESET_N signal is low, the G610 is powered off without the work net logging out.

  • Page 32: Trace Ports

    The GSM/GPRS network and G610 module is incorporated a complicated system. The G610 prepared the trace function for debugged or acquired the data of the system. The G610 transfer these data from SPI port. It can be operated on the PC software and execute by SPI adaptor to RS232.

  • Page 33: General Purpose I/O

    Trace Interrupt Input 3.11.5 General Purpose I/O The G610 incorporates 8 general purpose IO signals for the user application. Each GPIO signal may be configured and controlled by AT command. These signals may be used to control or set external application circuits, or to receive indications from the external application.

  • Page 34: Electrical And Environmental Specifications

    The table summarizes the DC electrical specifications of the application interface connector signals. Note: Interface signals that are not used by the customer application must be left unconnected. G610 incorporates the necessary internal circuitry to keep unconnected signal in their default state. Do not connect any components to, or apply any voltage on, signals that are not used by the application.
  • Page 35 DTR_N Data Terminal Ready CTS_N Clear To Send DCD_N Data Carrier Detect SIM Interface (3.0V) ±3% SIM_VCC SIM power 0.3V 1.8V 2.85V Output current <10mA SIM_CLK SIM clock 3.25MHz =0.35V G610 GPRS Module Hardware User Manual Page 35 of 43...
  • Page 36 General purpose IO VOHMIN=VDD-0.35V VILMAX=0.2V GPIO03 General purpose IO VIHMIN=0.7*VDD GPIO04 General purpose IO GPIO36 General purpose IO Note: CP=Center Pin; T= 3 Status; PD= Pull Down; PU=Pull Up; OD=Open Drain  G610 GPRS Module Hardware User Manual Page 36 of 43...

  • Page 37: Application Interface Pin Assignment By Number

    Pin 27 Signal name Signal name SIM_VCC GPIO36 SIM_CD PCM_DIN SIM_DATA PCM_CLK SIM_CLK PCM_DOUT SIM_RST PCM_FS RESET_N VBACKUP TR_INT HS_DET POWER_ON AUXI+ RXD_N AUXI- TXD_N MIC- CTS_N MIC+ RTS_N EAR+ DCD_N G610 GPRS Module Hardware User Manual Page 37 of 43...
  • Page 38 EAR- DTR_N AUXO- RING_N AUXO+ DSR_N ADC2 SCL/GPIO18 ADC1 SDA/GPIO19 GPIO01 GPIO02 RF_ANT GPIO03 GPIO04 GPIO07 CHARG_CS BATT CHARG_CDT BATT G610 GPRS Module Hardware User Manual Page 38 of 43...

  • Page 39: Mechanical Design

    5 Mechanical Design 5.1 G610 Mechanical Specifications G610 GPRS Module Hardware User Manual Page 39 of 43...

  • Page 40: Recommended Pcb Layout

    5.2 Recommended PCB Layout G610 GPRS Module Hardware User Manual Page 40 of 43...

  • Page 41: Antenna Design

    Antenna characteristics are essential for good functionality of the module. The radiating performance of antennas has direct impact on the reliability of connection over the Air Interface. Bad termination of the antenna can result in poor performance of the module. G610 GPRS Module Hardware User Manual Page 41 of 43...
  • Page 42 Do not use directivity antenna since the electromagnetic field radiation intensity is limited in some countries. Take care of interaction between co-located RF systems since the GSM transmitted power may interact or disturb the performance of companion systems. G610 GPRS Module Hardware User Manual Page 42 of 43...

  • Page 43: Reflow Temperature Profile

    A value of |S11| of about -6dB - (in the worst case) - is acceptable. 5.4 Reflow Temperature Profile G610 GPRS Module Hardware User Manual Page 43 of 43...
