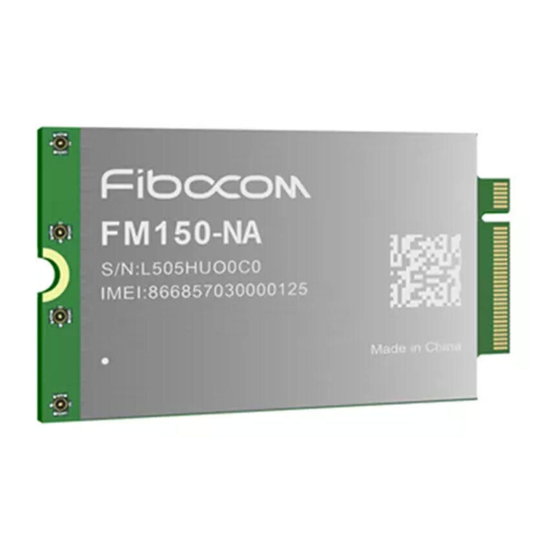

Summary of Contents for Fibocom FM150-NA Series
- Page 1 FIBOCOM_FM150-NA Hardware User Manual_Draft Version：1.0.0 Date：2019-11-12...
- Page 2 Applicability Table Product model Description FM150-NA-00 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 2 of...
- Page 3 Trademark The trademark is registered and owned by Fibocom Wireless Inc. Version Record Version Update date Remark V1.0.0 2019-11-12 Draft version Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 3 of...
-
Page 4: Table Of Contents
PCIe Interface Application ..................31 3.4.3 USB Interface ......................33 3.4.3.1 USB Interface Definition ..................33 3.4.3.2 USB2.0 Interface Application ................33 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 4 of... - Page 5 GNSS ..........................49 Antenna Design Requirement .................... 50 Structure Specification ........................52 Product Appearance ......................52 Dimension of Structure ...................... 52 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 5 of...
- Page 6 Storage ..........................54 5.5.1 Storage Life ........................ 54 Packing ..........................54 5.6.1 Tray Package ......................54 5.6.2 Tray size ........................56 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 6 of...
-
Page 7: Foreword
3GPP TS 31.11 V10.16.0: Universal Subscriber Identity Module (USIM) Application Toolkit(USAT) ⚫ 3GPP TS 36.124V10.3.0: Electro Magnetic Compatibility (EMC) requirements for mobile Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 7 of... -
Page 8: Related Documents
PCI Express M.2 Specification Rev1.1 1.3 Related Documents ⚫ FM150 System Driver Integration and Application Guidance ⚫ FM150 AT Commands Manual Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 8 of... -
Page 9: Overview
Storage temperature: -40°C ～+85°C Interface: M.2 Key-B Physical Dimension ： 30 x 52 x 2.3mm characteristics Weight: About 8.2 g Interface Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 9 of... -
Page 10: Ca Combinations
4+5, 12,46, 71 Inter-band 12+66 48+66 Intra-band(non-contiguous) 2, 4,48,66 Intra-band(contiguous) 2, 48, 66 2A-2A-4A;2A-2A-12A;2A-2A-66A;2A-2A-71A;2A-4A- 4A;2A-4A-5A;2A_4A_12A ;2A-4A-71A;2A-12A-66A;2A- Inter-band 46C;2A-46A-46A; 2A-46A-48A; 2A-46A-66A;2A-48A- 66A;2A-48A-48A;2A-48C;2C-66A;2A-66A-66A;2A-66A- 71A;2A-66C Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 10 of... - Page 11 Intra-band(contiguous) 2A-2A-4A-12A;2A-2A-4A-71A;2A-2A-12A-66A;2A-2A- 66A-66A;2A-2A-66A-71A;2A-2A-66C;2A-4A-4A-12A;2A- 12A-66C;2A-12A-66A-66A;2A-46A-46A-66A;2A-46C- 66A;2A-46D Inter-band 2A-66C-71A;2A-66A-66A-71A;2C-66A-66A 4A_46A_46C;4A-46D 46A_46C_66A;46D-66A Intra-band(non-contiguous) Intra-band(contiguous) 2A_46A_46C_66A;2A-46A-46D;2A-46C-46C;2A-46D- 66A;2A_46E 4A-46A-46D Inter-band 12A_46E 46E_66A Inter-band 2A_46E_66A;2A-46D-66C Inter-band 2A_46E_66C Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 11 of...
-
Page 12: Application Framework
Application interface RF contains the followings: RF Transceiver RF Power/PA RF Front end RF Filter Antenna Connector Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 12 of... -
Page 13: Antenna Configuration
M.2 Interface Figure 2-2 Hardware Block Diagram 2.6 Antenna Configuration FM150 module support four antennas and the configuration is as below table: Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 13 of... -
Page 14: Application Interface
MIMO DRX、LAA B46_DRX 3 Application Interface 3.1 M.2 Interface TheFM150 module applies standard M.2 Key-B interface, with a total of 75 pins. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 14 of... -
Page 15: Pin Map
3.1.1 Pin Map Figure 3-1 Pin Map Note: Pin “Notch” represents the gap of the gold fingers. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 15 of... -
Page 16: Pin Definition
NC, FM150 M.2 module is configured as the WWAN – PCIe, USB3.0 CONFIG_0 interface type I2S_RX I2S Serial receive data, CMOS 1.8V Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 16 of... - Page 17 PCIe TX Differential signals PETn0 Negative CMOS UIM2_DATA I/O L SIM2 data input/output 1.8V/3V PETp0 PCIe TX Differential signals Positive Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 17 of...
- Page 18 PCIe Reference Clock signal REFCLKP Positive MIPI Interface Tunable ANT, RFFE1_SCLK CMOS 1.8V RFFE1 clock Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 18 of...
- Page 19 WWAN – PCIe, USB3.0 CONFIG_1 interface type +3.3V Power input Power Supply Power Supply +3.3V Power input Power Supply Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 19 of...
-
Page 20: Power Supply
3.2.1 Power Supply The FM150 module should be powered through the +3.3V pins, and the power supply design is shown in Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 20 of... - Page 21 300mV in design. Because module support 7CA download, when module operates with the maximum data transfer throughput, the maximum operating current can reach to upper Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual...
-
Page 22: Logic Level
-0.3 3.2.3 Power Consumption In the condition of 3.3V power supply, the FM150 power consumption as shown in the following table: Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 22 of... - Page 23 LTE FDD Data call Band 14 @+23dBm LTE FDD Data call Band 17 @+23dBm LTE FDD Data call Band 18 @+23dBm Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 23 of...
- Page 24 (10MHz,1RB) RMS Current n78@max power (10MHz,1RB) Note： The data above is an average value obtained by testing some samples. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 24 of...
-
Page 25: Control Signal
GPIO port should use a reset value is low or pull down port and reserved external pull-down resistors.The circuit design is shown in Figure3-4: Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual... -
Page 26: Start-Up Timing Sequence
If the RESET# has a residual voltage, then 100ms is necessary 100ms 400ms PERST# should de-asserted after FULL_CARD_POWER_OFF# 3.3.2 Module Shutdown Module can be shut down by following control: Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 26 of... -
Page 27: Module Reset
RESET# function, the PMU remains its power inside the module. The recommended circuit design is shown in the Figure 3-7: Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 27 of... - Page 28 Figure 3-9; +3.3V FULL_CARD_POWER_OFF# RESET# res1 res2 PERST# typical 10s Module State Restart Activation PMU RESET Activation Figure 3-8 Reset control timing1 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 28 of...
-
Page 29: Pcie Reset
L2@S0/S0ix/S3 ->D0 timing is shown in figure 3-10: +3.3V FULL_CARD_POWER_OFF# RESET# PERST# Module State D3cold L2@S0/S0ix/S3 Figure 3-10 PCIe reset timing Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 29 of... -
Page 30: Pcie Interface
Asserted to wake up system and reactivate PEWAKE# 1.8V/3.3V PCIe link from L2 to L0, it depends on system whether supports wake up functionality. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 30 of... -
Page 31: Pcie Interface Application
1-3 grounding signal via holes and the lines shall never cross the segment of plane; Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual... - Page 32 The length match should be close to the signal pin and pass the small- angle bending design. Correct match Dismatched end Matched end Incorrect match Figure 3-13 Length Match Design of PCIe Difference Pair Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 32 of...
-
Page 33: Usb Interface
Since the module supports USB 2.0 High-Speed, it is required to use TVS diodes with equivalent capacitance of 1pF or smaller ones on the USB_D-/D+ differential signal lines, it is recommended to use Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual... -
Page 34: Usb3.0 Interface Application
The FM150 module support dual SIM card single standby, has dual built-in USIM card interface, which supports 1.8V and 3V SIM cards. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 34 of... -
Page 35: Usim1 Pins
3.5.3.1 N.C. SIM Card Slot The reference circuit design for N.C. (Normally Closed) SIM card slot is shown in Figure 3-15: Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 35 of... -
Page 36: Sim Card Slot
When the SIM card is inserted, it connects the short circuit between CD and SW pins, and drives the SIM_DETECT pin high. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 36 of... -
Page 37: Usim Hot-Plugging
The SIM card slot with a metal shielding housing can improve the anti-interference ability. The trace length between the SIM card slot and the module should not exceed 100mm, or it could Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 37 of... -
Page 38: Status Indicator
Figure 3-17 LED Driving Circuit Note: The resistance of LED current-limiting resistor is selected according to the driving voltage and the driving current. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 38 of... -
Page 39: Wowwan
W_DISABLE1# signal is as below table: W_DISABLE1# signal Function High/Floating WWAN function is enabled, the module exits the Flight mode. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 39 of... -
Page 40: Bodysar
GPO interface. Through cooperating with external antenna adapter switch via ANT Tunable, it can flexibly configure the bands of LTE antenna to improve the antenna’s working efficiency and save space for the antenna. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 40 of... -
Page 41: Configuration Interface
Please refer to PCI Express M.2 Specification Rev1.1” for more details. 3.10 Other Interfaces The module does not support other interfaces yet. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 41 of... -
Page 42: Radio Frequency
4.1.2 RF Connector Characteristic Rated Condition Environment Condition Frequency Range DC to 6GHz Temperature Range 50Ω –40° C to +85° C Characteristic Impedance Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 42 of... -
Page 43: Rf Connector Dimension
2*2*0.6m. The connector dimension is shown as following picture: Figure 4-2 RF connector dimensions Figure 4-3 0.81mm coaxial antenna dimensions Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 43 of... -
Page 44: Operating Band
Band 66 1700MHz NR/LTE FDD 1710 - 1780 2110 - 2200 Band 71 600MHz NR/LTE FDD 663 - 698 617 - 652 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 44 of... -
Page 45: Transmitting Power
Band 30 23± 2.7 23 dBm Band 66 23± 2.7 23 dBm Band 41 23± 2.7 23 dBm Band 42 23+2.7/-3.2 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 45 of... -
Page 46: Receiver Sensitivity
Band 4 -106.7 Band 5 -104.7 Band 8 -103.7 Band 2 -94.3 Band 4 -96.3 Band 5 -94.3 Band 7 -94.3 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 46 of... - Page 47 The above values are measured in dual antennas condition (Main+Diversity). For single main antenna (without Diversity), the sensitivity will drop about 3dB for each band of LTE. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual...
-
Page 48: Four Antenna Receiver Sensitivity
Band 17 Band 25 Band 26 Band 29 Band 30 Band 66 Band 41 Band 42 Band 48 Band 46 Band 71 Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 48 of... -
Page 49: Gnss
Parameter Description Result Unit Note Acquisition Sensitivity Tracking C/No -130dBm dB-Hz Cold Start TTFF Warm Start Hot Start Static accuracy Note: Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 49 of... -
Page 50: Antenna Design Requirement
LTE band 41(2500): 194 MHz LTE band 42(3500): 200 MHz LTE band 46(5GHz): 775 MHz LTE band 66(1700): 490MHz LTE band 71(600): 35MHz Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 50 of... - Page 51 ANT on B30 suggestion: Peak gain<1dBi, for FCC EIRP requirement, Efficient>50% for carrier TRP requirement. If integrator doesn't follow the instruction, May cause FCC EIRP or carrier TRP certification fail. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 51 of...
-
Page 52: Structure Specification
5.2 Dimension of Structure The structural dimension of the FM150 module is shown in Figure 5-2: Figure 5-2 Dimension of Structure Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 52 of... -
Page 53: Interface Model
The FM150 module connects to AP via M.2 connector, it is recommended to use M.2 connector from LOTES company with the model APCI0026-P001A as shown in Figure 5-3. The package of connector, please refer to the specification. Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 53 of... -
Page 54: Storage
The FM150 module uses tray package, 20 pcs are packed in each tray, with 5 trays including one empty tray on top in each box and 5 boxes in each case. Tray packaging process is shown in Figure 5-4: Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual... - Page 55 Figure 5-4 Tray Packaging Process Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 55 of...
-
Page 56: Tray Size
5.6.2 Tray size The pallet size is 315*170*6.5mm, as shown in Figure 5-5: Figure 5-5 Tray Size (Unit: mm) Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved. FIBOCOM_FM150-NA Hardware User Manual Page 56 of...
