Blood Glucose Monitoring System
GM260
BIONIME CORPORATION
No. 100, Sec. 2, Daqing St., South Dist.,
Taichung City 40242, Taiwan
Tel: +886 4 23692388
Fax: +886 4 22617586
http: //www.bionime.com
E-mail: info@bionime.com
BIONIME GmbH
USER'S MANUAL
Tramstrasse 16, 9442 Berneck
Switzerland
E-mail: info@bionime.ch
GM260
0197
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for BIONIME rightest GM260
Summary of Contents for BIONIME rightest GM260
- Page 1 Blood Glucose Monitoring System GM260 BIONIME CORPORATION No. 100, Sec. 2, Daqing St., South Dist., Taichung City 40242, Taiwan Tel: +886 4 23692388 Fax: +886 4 22617586 http: //www.bionime.com E-mail: info@bionime.com BIONIME GmbH USER’S MANUAL Tramstrasse 16, 9442 Berneck Switzerland E-mail: info@bionime.ch...
- Page 3 The Rightest™ Blood Glucose Monitoring System GM260 was manufactured and supported by Bionime Corporation and its authorized representative. If you have any questions or concerns, please contact your Bionime authorized representative or email to rightest@bionime.com.
- Page 4 Precaution Precaution - Before using the Rightest™ Blood Glucose Monitoring System GM260 to test your blood glucose, - Not to be exposed dripping or splashing. please read all the instructions and practice the tests including quality control test ( Refer to P .35). - The minimum blood sample size of Rightest™...
-
Page 5: Table Of Contents
Table of Contents Table of Contents About Rightest™ System Quality Control The Rightest™ Blood Glucose Monitoring System GM260 Quality Control Test The Rightest™ Blood Glucose Meter GM260 Performing a Quality Control Test The Rightest™ Blood Glucose Test Strip GS260 Review Your Test Memory Being Ready for Test Recalling Test Result and Average Meter activation and Battery change... -
Page 6: The Rightest™ Blood Glucose Monitoring System Gm260
The Rightest™ Blood Glucose Monitoring System GM260 The Rightest™ Blood Glucose Monitoring System GM260 3 ＊ Package of System Kit Your Rightest™ Blood Glucose Monitoring System GM260 consists of several items. Please identify each item of your system and learn what they're called and how they're used. 4 ＊... -

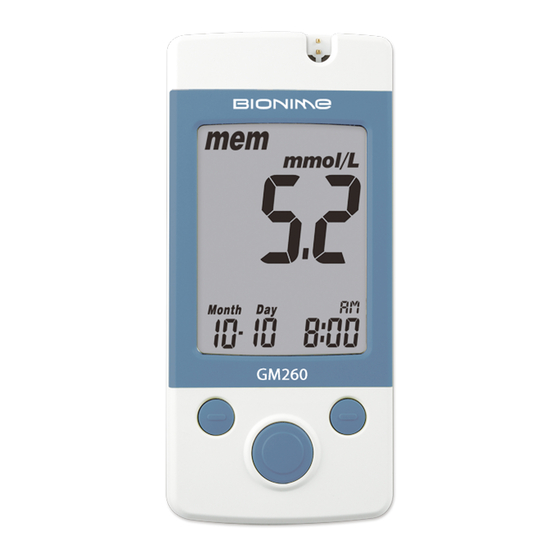

Page 7: The Rightest™ Blood Glucose Meter Gm260
The Rightest Blood Glucose Meter GM260 The Rightest Blood Glucose Meter GM260 Test Strip Port Insert test strip here until you hear a click. Battery Cover Slide cover to change batterry. Display Window Product name Show your test result, messages Meter Battery and relative information. - Page 8 The Rightest Blood Glucose Meter GM260 The Rightest Blood Glucose Meter GM260 Indicates a test result stored in memory Tell when to apply the blood sample Indicates a test result, not joining into the Average Appears after you insert test strip into meter function of this meter Indicates with the average result Appears when an error occurs...
-
Page 9: The Rightest™ Blood Glucose Test Strip Gs260
The Rightest Blood Glucose Test Strip GS260 The Rightest Blood Glucose Test Strip GS260 The Rightest™ Blood Glucose Meter GM260 can only be used with the Rightest™ Blood Glucose Test Strips GS260. The application of other Test Strips or control solutions can lead to incorrect results. Electrode Contacts Sensing signal output terminals. -
Page 10: Meter Activation And Battery Change
Meter activation and Battery change Meter activation and Battery Change Your Rightest™ Blood Glucose Meter GM260 comes with one CR2032, 3volt, battery installed. One new battery will provide power to perform about 1000 tests under normal use. You can press the main button or insert a strip to activate your meter. -
Page 11: Setting Up Your Meter- Setting The Time, Volume And Date
Setting Up Your Meter- Setting the Time, Volume and Date Setting Up Your Meter- Setting the Time, Volume and Date You can enter Setting Mode by the following two ways. 1. Year setting 1. Reload battery With the year format blinking, press the Left or Right button to adjust it. Then After removing the battery, please press the main button for several times until no signal on screen, press the Main button to confirm it. - Page 12 Setting Up Your Meter- Setting the Time, Volume and Date Setting Up Your Meter- Setting the Time, Volume and Date 4. Time format 12/24H selection 8. Setting the Unit of Measurement With the time format blinking, press the Left or Right button With milligrams per deciliter(mg/dL) or millimoles to adjust it.
-
Page 13: Turning On/Off The Meter
Turning On/Off the Meter Handling the Rightest™ Test Strip GS260 1. How to turn on the Rightest™ Blood Glucose Meter GM260 How to handle the Rightest™ Blood Glucose Test Strip GS260? Press the Main button or insert a test strip. Inserting the Rightest™... -
Page 14: Getting Ready For Testing
Handling the Rightest™ Test Strip GS260 Getting Ready for Testing Removing the Rightest™ Blood Glucose Test Strip GS260: Before performing a blood glucose test, 1. Hold the Rightest™ Blood Glucose Test Strip GS260 same as insert it. you have to prepare the items below : - Rightest™... -
Page 15: Performing A Blood Test
Performing a Blood Test Performing a Blood Test 1. Hold the adjustable cap in one hand and hold the hub in the other hand. 6. Choose a depth of penetration by rotating the top portion of the depth adjustable cap until the setting depth matches the window. Settings are Bend the cap towards the down side. - Page 16 Performing a Blood Test Performing a Blood Test 11. A blood drop symbol appears and is accompanied by a 15. Pull off the depth adjustable cap. Without touching the used disposable lancet, stick the lancet tip into the protective further beep (if volume is turned on). Now you can apply cover.
- Page 17 Performing a Test in Order Performing a Test in Order Alternative site testing-palm or forearm blood sampling Palm PRECAUTION - The glucose test results of blood samples taken from different sites might be varied in - To do the alternative site testing, please install the clear cap for your Rightest™...
-
Page 18: View Window Appearance
View Window Appearance Comprehending Test Results and Messages If your blood glucose result is unusually high or low, or if you question your testing results, repeat Make sure your blood sample covers the whole area of the View Window to get an accurate the test with a new Rightest™... -
Page 19: Comprehending Test Results And Messages
Comprehending Test Results and Messages Quality Control Test The Rightest™ Blood Glucose Meter GM260 displays results between 10 Please use Rightest Control Solution tested with Rightest Blood Glucose Monitoring System GM260 under Control Solution Mode. If the test result is within the Control Solution Range printed on and 600 mg/dL. -
Page 20: Performing A Quality Control Test
Then open the bottle and put the cap on the table. the range still exist, do not use the Blood Glucose Monitoring System GM260 to test your blood glucose and contact your Bionime Customer service. 6. Drip a drop of Rightest Control Solution on the top of the cap. -
Page 21: Recalling Test Result And Average
Performing a Quality Control Test Recalling Test Result and Average 9. Tightly replace the cap on the Rightest Control Solution bottle. Rightest Blood Glucose Meter GM260 is able to store 500 test results with time and date CLOSE 10. The Control Solution result appears. Compare your Quality Control Test result to automatically. - Page 22 Recalling Test Result and Average Recalling Test Result and Average 4. Quick Searching: If you want to see all values automatically displayed in sequence, first enter the memory mode. Then keep pressing the Right or Left button for 2 seconds. (Right button is for searching the tests the latest value to the oldest one;...
-
Page 23: Caring For Your Meter
If after turning on the Meter, you do not see Er5, your meter is test to ensure the Rightest Blood Glucose Meter GM260 is working properly. functioning properly and able to perform a test. If one of the above error messages still appears, please contact your Bionime authorized representative or email to rightest@bionime.com. -
Page 24: Error Messages And Trouble Shooting
Error messages and Trouble shooting Error messages and Trouble shooting Battery Error CAUTION 1. The " " symbol is blinking when the battery power is low. Please A blood sample should ONLY be applied to the test strip after the test strip has been change the meter battery as soon as you can. - Page 25 Glucose Meter GM260 can not do the test and the " " symbol will blink with If not, please contact your local Bionime customer service. thermograph symbol displaying on screen in this condition. Please move the meter to environment with temperature between 50~104°F 10~40°C...
-
Page 26: Limitations
Limitations Specification - Store the Rightest Blood Glucose Test Strips GS260 in the original capped vial at temperatures between 39°F to 86°F (4°C to 30°C) and relative humidity below 90%. Do not freeze. Measurement Technology Oxidase Electrochemical Sensor - Rightest™ Blood Glucose Test Strips GS260 are designed for using with capillary whole blood Measurement Calibration Plasma samples. -
Page 27: Customer Service
If you have any questions or in case Hematocrit 30-60% of problems with the Rightest GM260 products, please contact your local Bionime customer service. 1 CR2032 battery Power Supply Meter Battery Life... -
Page 28: Warranty
E-mail: info@bionime.ch Please complete and return the enclosed warranty card to your local Bionime affiliate. If the Rightest GM260 Meter and strip are exposed to a high temperature difference, please wait 30 Lancing device minutes before measurement. Manufacturer: Bionime Corporation No.
