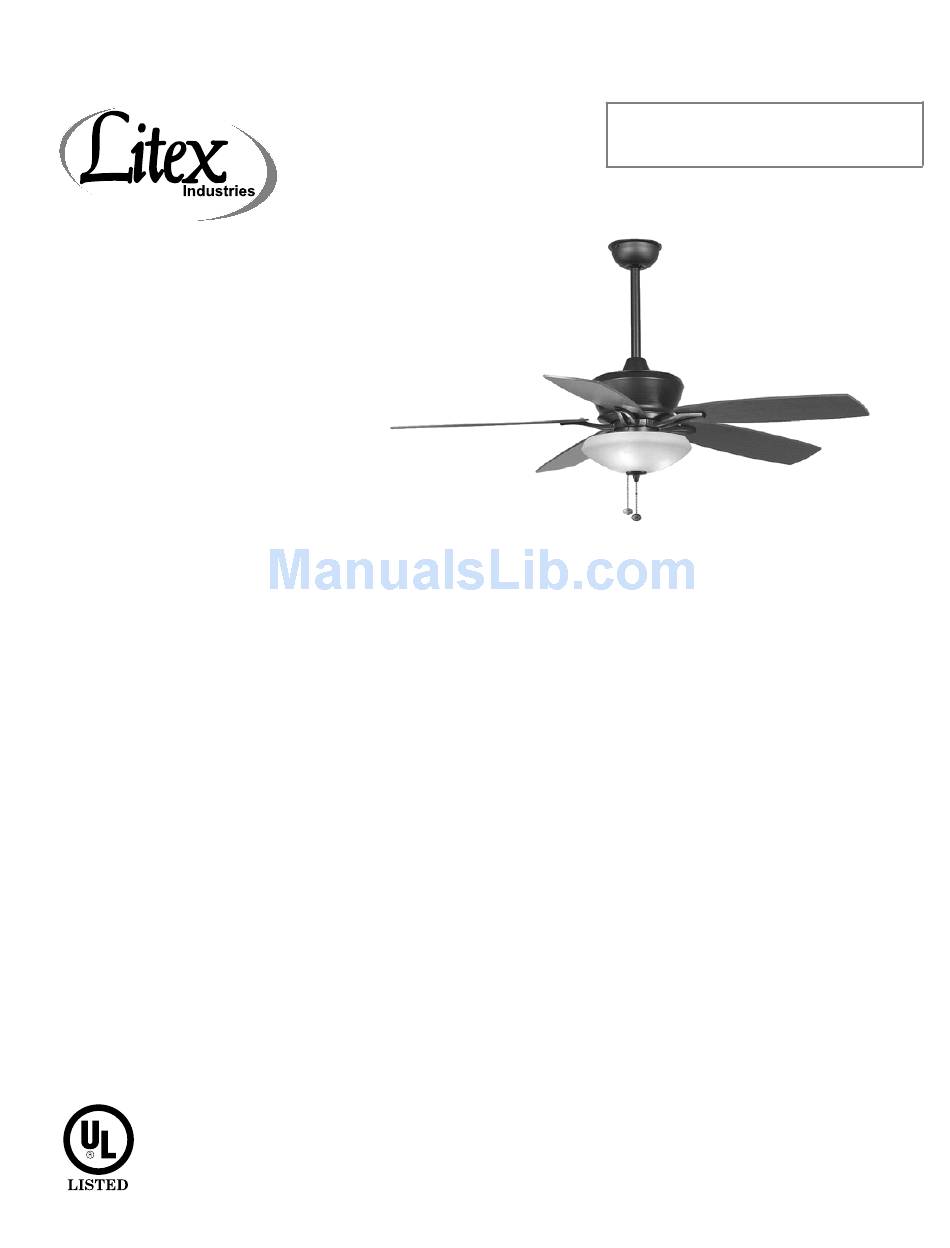

Installation Guide
For Model:
KA52NI5CM
E192641
net weight of fan: 20.94 lb. (9.5 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Warranty. pg. 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KA52NI5CM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Litex KA52NI5CM

Summary of Contents for Litex KA52NI5CM

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Model: KA52NI5CM Table of Contents: Safety Information. pg. 1 Package Contents. pg. 2 Preparation. pg. 3 Initial Installation. pg. 3 Normal or Angle Style Fan Mounting. pg. 4 Wiring.

  • Page 2: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, install or operate the product. If you have any questions regarding the product, please call customer service at 1-800-527-1292, 8:30 a.m.-5:00 p.m., CST, Monday-Friday. 1. Before you begin installing the fan, disconnect the power by removing fuses or turning off circuit breakers. CAUTION: Read all instructions and safety information before installing your new fan.

  • Page 3: Package Contents

    PACKAGE CONTENTS Part Description Quantity Downrod Canopy Mounting Bracket Light Kit Fitter Motor Housing Yoke Cover Blade Arm Blade Glass Shade Motor Screw (in motor) 3/16 Blade Screw (in hardware pack) 5.4M/M Lock Washer (in motor) Blade Washer (in hardware pack) E3 Wire Connector (in hardware pack) Blade Balancing Kit (in hardware pack) Canopy Mounting Screw...

  • Page 4: Preparation

    PREPARATION 1. Before beginning assembly and installation of product, make sure all parts are present. Compare parts with "Package Contents" list and diagrams on the previous page. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts as indicated at the bottom of page 2.

  • Page 5: Normal Or Angle Style Fan Mounting

    NORMAL OR ANGLE STYLE FAN MOUNTING 1. Choose downrod (A) length you wish to use.* If you choose to use the 12 in. downrod (A), remove hanging ball from the 6 in. downrod (A) Hanging and attach the hanging ball to the 12 in. downrod (A). Insert downrod Ball (A) through canopy (B) and yoke cover (F).

  • Page 6: Final Installation. Pgs

    WIRING (continued from previous page) 2. Connect green wire from downrod (A) to green wire on mounting bracket (C). [Fig. 2] 3. Strip 3/4 of an inch of insulation from ends of white wire. Twist stripped ends of each strand of wire within the insulation with pliers. [Fig.
  • Page 7 FINAL INSTALLATION (continued from previous page) (5. cont.) If you do NOT wish to use the fan with the light kit, locate cap (W) in hardware pack. Remove the hex nut and lock washer from the threaded rod on the light kit fitter (D). Locate BLUE and WHITE Male Plug wires in switch housing labeled FOR LIGHT.

  • Page 8: Fan Operation

    FAN OPERATION 1. The fan pull chain (located to one side) has four positions to control fan speed. One pull is HIGH, two is MEDIUM, three is LOW and four turns the fan OFF. [Fig. 1] Fig. 1 2. Pull the light pull chain (located in the middle) to turn the light ON or OFF.

  • Page 9: Warranty

    Contact Litex Customer Service at 1-800-527-1292 to arrange for return of fan. Return fan, shipping prepaid, to Litex Industries, Ltd. We will repair or ship you a replacement fan, and we will pay the return shipping cost.
