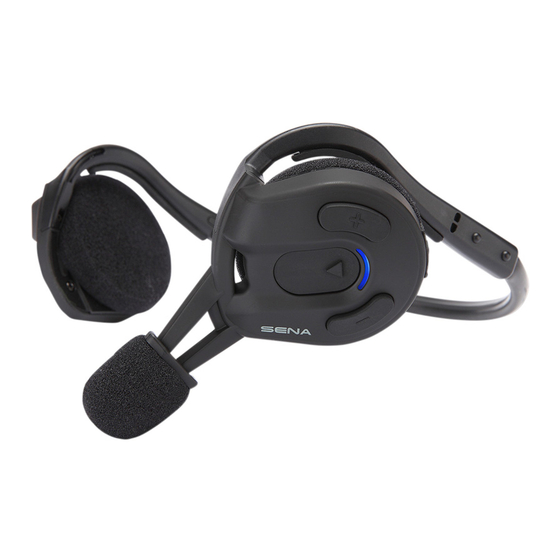

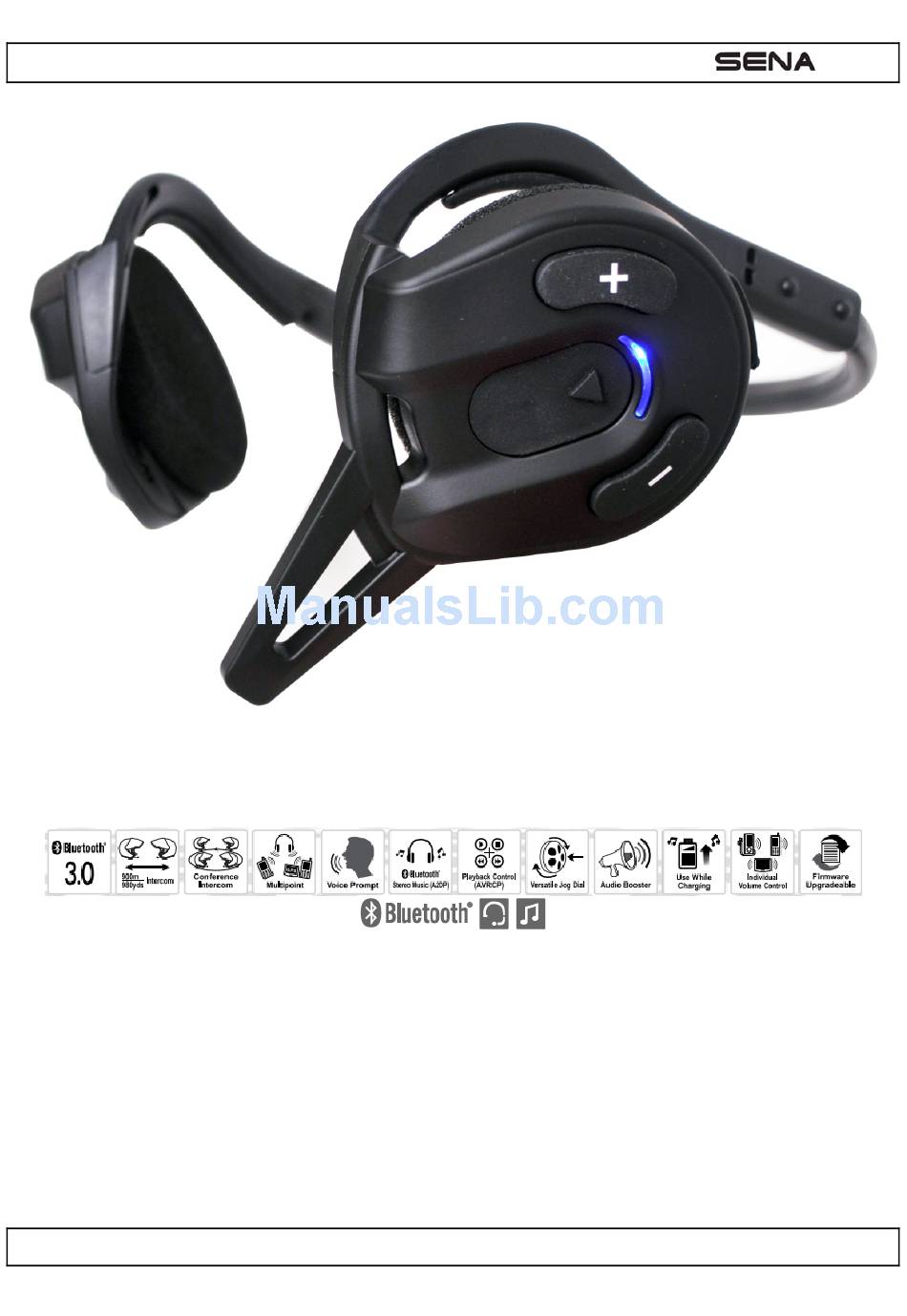

- Page 1 | EXPAND EXPAND Bluetooth Stereo Headset & Intercom SENA www.senabluetooth.com User’s Guide...
-
Page 2: Powering On/Off And Charging
The charging LED beside the charging port turns on red while charging, and turns to blue when the headset is fully charged. It takes about 2.5 hours to be completely charged. You can use the EXPAND while charging. It is especially helpful when you use a cigarette charger for a long road trip. - Page 3 3. EXPAND CONFIGURATION SETTING You can set the configuration of the EXPAND by the voice menu instruction as below. 1. To enter into voice configuration menu, press and hold the Center Button for 10 seconds until the LED shows solid blue and you hear high tone double beeps.
-
Page 4: Multipoint Pairing
| EXPAND To go into mobile phone pairing mode, tap the (+) Button or the (-) Button until you hear a voice prompt, “Phone pairing”. Please refer to section 7.1 for details on mobile phone pairing. If you tap the (+) or (-) Button, you can exit from the phone pairing mode. -
Page 5: Enabling/Disabling Voice Activated Intercom
| EXPAND Enable / Disable Tap the Center Button Tap the (+) Button or the (-) Button until you hear a voice prompt, “VOX phone”. If this feature is enabled, you can answer incoming calls by simply saying a word loudly enough, unless you are connected to intercom. For example, when you hear a series of beeps for an incoming call, you can answer the phone by saying “Hello”... -
Page 6: Delete All Bluetooth Pairing Information
Execute Tap the Center Button To delete all Bluetooth pairing information on the EXPAND, tap the (+) Button or the (-) Button until you hear a voice prompt, “Delete all pairings”. Tap the Center Button to confirm. 3.10 Reset to Factory Default Setting Voice Prompt “Factory reset”... -
Page 7: Pairing The Expand With Bluetooth Devices
4. PAIRING THE EXPAND WITH BLUETOOTH DEVICES Before using the EXPAND Bluetooth headset with any of Bluetooth devices for the first time, you need to do the pairing operation. It can be paired with Bluetooth mobile phones, Bluetooth stereo devices such as MP3, or motorcycle specific Bluetooth GPS, and with Bluetooth adapter or transmitter such as Sena SR10 or SM10. -
Page 8: Bluetooth Stereo Device Pairing
HFP devices at the same time. So, when you already have a mobile phone connected with the EXPAND, you can also pair and connect a second mobile phone or other HFP devices such as GPS or Sena SR10, Bluetooth adapter. -
Page 9: Pairing With The Sena Sr10, Bluetooth Two-Way Radio Adapter
If GPS is not only used for turn-by-turn voice instructions but also is your preferred Bluetooth stereo music source, you can pair the GPS to the EXPAND by following the simple procedures in “7.1 Mobile Phone Pairing”. When you do this, the EXPAND thinks the GPS is a mobile phone. -
Page 10: Pairing With Selective Profile: Hfp Or A2Dp Stereo
EXPAND to their smartphones only with one selective profile: A2DP stereo for music or HFP for phone call. If you have previously paired a mobile phone to the EXPAND, you must clear the previous pairing list on both devices; the mobile phone and EXPAND. -
Page 11: Pairing With Other Sena Headset Models For Intercom Conversation
6.2 Pairing with Other Sena Headset Models for Intercom Conversation The EXPAND can be paired with all other Sena headset models such as the SMH10, SPH10 and the SMH5 for intercom conversation. Please follow the same procedure as above to pair with these headset models. -
Page 12: Function Priority
Audio/Video Remote Control Profile (AVRCP), so if your Bluetooth audio device also supports the AVRCP, you can use the EXPAND to remotely control music playback. You not only can adjust the volume but also use the functions such as play, pause, next track and previous track. -
Page 13: Start And End Two-Way Intercom
Press the Center Button for 3” If you have second mobile phone connected with the EXPAND by multipoint connection, you can answer the incoming call to the second mobile phone by tapping the Center Button while you are on the line of the first mobile phone. In this case, the first call is on call waiting. -
Page 14: Voice Activated Intercom (Vox Intercom)
10.4 Intercom and GPS If you pair a Bluetooth GPS to the EXPAND as described in 6.3 of this user's guide, you can hear the turn-by-turn voice instruction of the GPS while having an intercom conversation. The GPS voice instruction interrupts intercom conversation, but it is automatically reestablished after the GPS voice instruction ends. -
Page 15: Three-Way Conference Intercom
| EXPAND As described in 6.4 of this user's guide, you can use a two-way radio and EXPAND Bluetooth intercom simultaneously by using the Sena SR10, a Bluetooth Two-way Radio Adapter, along with the EXPAND. Incoming audio from the two-way radio is not interrupting an intercom conversation but is heard in background. -
Page 16: End Three-Way Intercom
12.1 Start Four-way Intercom You can have four-way conference intercom with three other EXPAND users by adding one more intercom participant to the three-way intercom. While you are having three-way intercom as above in section 14.1, a new participant (D), who is an intercom friend of your intercom friend (C), may join the conference intercom by making an intercom call to your intercom friend (C). -
Page 17: End Four-Way Intercom
| EXPAND 12.2 End Four-way Intercom As same in the case of three-way intercom, you can completely get out of the four-way conference intercom or just disconnect a single intercom connection. Press the Center Button for 1 second until you hear a beep to terminate four-way conference intercom. It terminates the intercom connections between you (A), and your intercom friends (B) and (C). -
Page 18: Intercom Failure
Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure. The EXPAND will be switched off, and you have to turn the system back on and try again. -
Page 19: Battery Information
BATTERY INFORMATION The EXPAND has an internal, non-removable external, rechargeable battery. Do not attempt to remove the battery from the device as you may damage the device. The battery can be charged and discharged hundreds of times, but it will eventually wear out. -
Page 20: Certification And Safety Approvals
| EXPAND prevent possible harm to the environment or human health from uncontrolled waste disposal, please do not dispose of these products as unsorted municipal waste, but hand it in at an official collection point for recycling. CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC Rules. - Page 21 Bluetooth License ® The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. Other trademarks and trade names are those of their respective owners ® The EXPAND is compliant with and adopts the Bluetooth Specification 3.0 and has successfully passed all...
- Page 22 Sena hereby notifies you that using this Device may also be in contravention to local, federal, state or national laws or regulations, and that any use of the Device is entirely at your sole risk and responsibility.
- Page 23 (a) any misapplication or misuse of the Product; (b) failure of Customer to adhere to any of Sena’s specifications or instructions; (c) neglect of, abuse of, or accident to, the Product; or (d) any associated or complementary equipment or software not furnished by Sena.
- Page 24 | EXPAND Sena informs that using this device in public traffic may not be authorized by the law. Please check your local law and use this device only out of public traffic such as private properties or closed circuits. If the simultaneous use of both ear speakers while riding a motorcycle is prohibited by your local law, please use only a single ear speaker while riding.
- Page 25 | EXPAND SENA www.senabluetooth.com User's Guide for Firmware v1.0...
