Summary of Contents for Sena EXPAND MESH

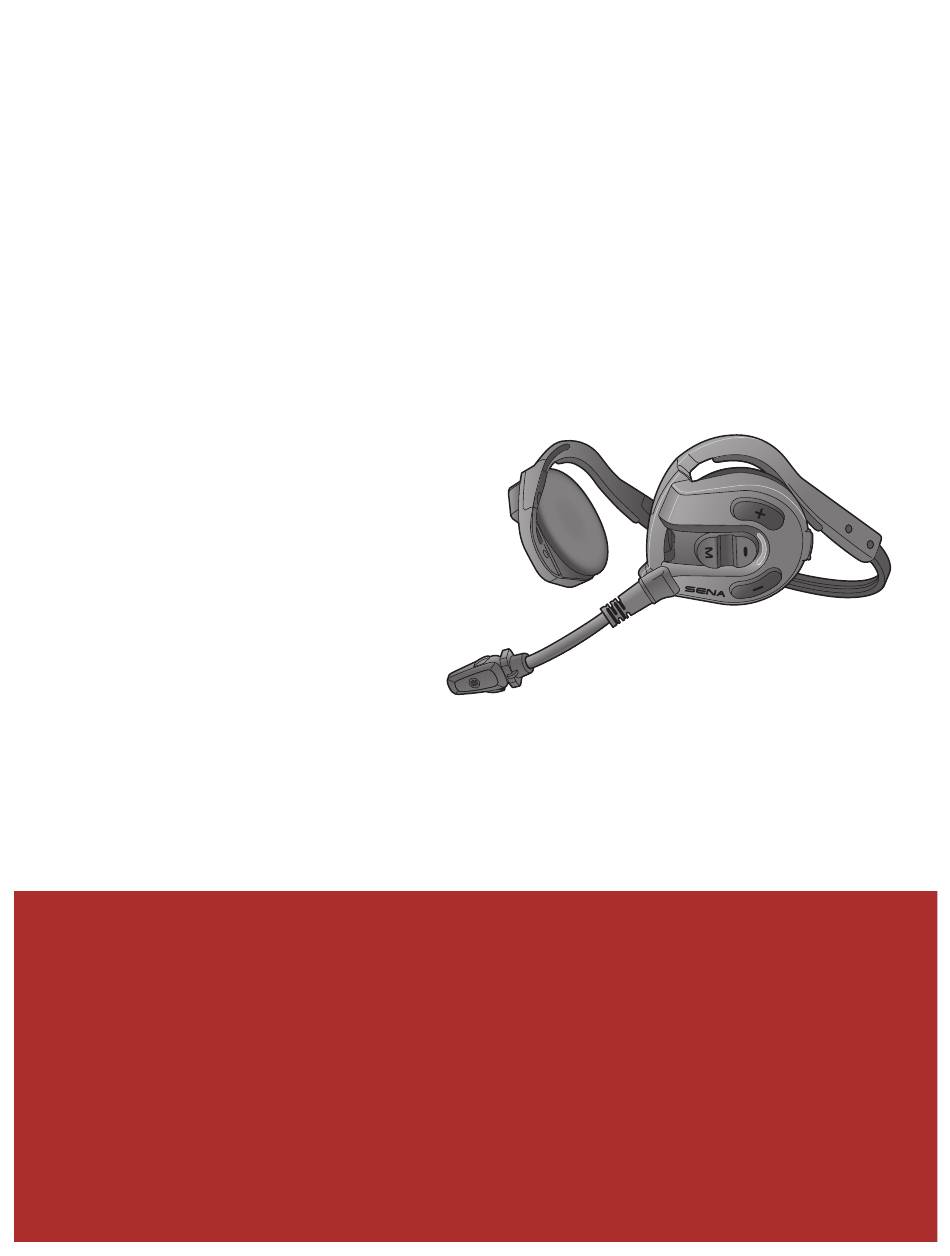

- Page 1 SENA EXPAND MESH BLUETOOTH HEADSET WITH MESH INTERCOM™ ® QUICK START GUIDE ENGLISH 1.2.0...
-
Page 2: Downloadable Sena Software
Downloadable Sena Software Download the Sena Outdoor App at Google Play Store Store. Sena Outdoor • Device configuration setting Download the following items at sena.com. Sena Device Manager • Firmware upgrade • Device configuration setting Quick Start Guide, User’s Guide Follow us on Facebook, YouTube, Twitter and Instagram to check the latest information and helpful tips. -
Page 3: Product Details

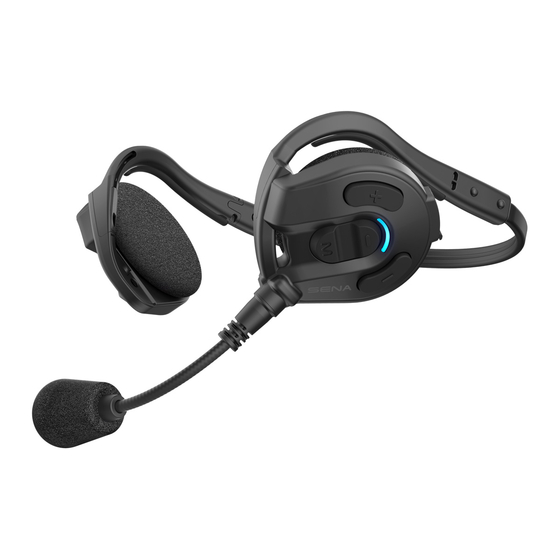

Product Details Speakers Status & Charging LED DC Power Charging & Firmware Upgrade Port Microphone (+) Button Center Button (-) Button Mesh Intercom Button Left Side... -
Page 4: Wearing The Headset
Wearing the Headset Right Left Left Side Front • For more information about installation, refer to the User’s Guide. Icon Legend Tap button the specified Press and Hold button for the HOLD number of times specified amount of time “Hello” Audible prompt... -
Page 5: Basic Operations
Basic Operations Powering On Powering Off HOLD Volume Up Volume Down Checking the Battery Level Powering On... -
Page 6: Phone Pairing
Phone Pairing Blinking ① HOLD “Phone pairing” ② Select Expand Mesh in the list of Bluetooth devices detected. Bluetooth Expand Mesh Device B • The headset will enter the Phone Pairing mode automatically when you initially turn on the headset. -
Page 7: Using The Phone
Using the Phone Answer a Call End a Call HOLD Reject a call Call a Voice Assistant HOLD HOLD stand-by mode Music Control Play/Pause HOLD Track forward Track backward HOLD HOLD... - Page 8 Open Mesh, channel 1” Mesh Intercom Off “ Mesh intercom off” Note: When Mesh Intercom is on, the Expand Mesh will automatically connect to nearby Expand Mesh users and the headset will be in Open Mesh (default: channel 1) initially.
- Page 9 ① Enter into the Channel Setting. “ Channel setting, 1” ② Navigate between channels. ••• Exit •••) “ #” ③ Save the channel. “ Channel is set, channel #” Using the Sena Outdoor App You can select the channel through the Sena Outdoor App.
- Page 10 Group Mesh Group Mesh is a closed group intercom function that allows users to join, leave, or rejoin a group intercom conversation without pairing each headset. 1) Creating a Group Mesh Creating a Group Mesh requires two or more Open Mesh users.
- Page 11 2) Joining an Existing Group Mesh One of the current users in an Existing Group Mesh can allow users (one or more) in Open Mesh to join the Existing Group Mesh. Existing Group Mesh Open Mesh Existing Group Mesh One (You) of the current users in the Existing Group Mesh and ①...
- Page 12 Button or the Sena Outdoor App. [Caller] [Caller] “Mesh reach-out request” [Nearby Friends] “ Mesh intercom requested” ③ Friends who receive the request message need to manually turn on their Mesh Intercom using the headset’s Button or the Sena Outdoor App.
-
Page 13: Configuration Menu
Reset Mesh If a headset in an Open Mesh or Group Mesh resets the Mesh, it will automatically return to Open Mesh (default: channel 1). HOLD “ Reset Mesh” Configuration Menu Accessing the Configuration Menu HOLD “ Configuration menu” Navigating Between Menu Options Execute Menu Options... -
Page 14: Troubleshooting
Troubleshooting Factory Reset ① HOLD “Configuration menu” ② “Factory reset” “ Headset reset, ③ good-bye” Fault Reset Note: Fault Reset will not restore the headset to the factory default settings. -
Page 15: Quick Reference
Quick Reference TYPE OPERATION BUTTON COMMANDS HOLD Power on Power off Basic Operations Volume up/Volume down Answer phone call HOLD End/reject phone call Mobile Phone HOLD Call a Voice Assistant HOLD Play/Pause music HOLD Track forward Music HOLD Track backward... - Page 16 TYPE OPERATION BUTTON COMMANDS Mesh Intercom on/off Channel setting HOLD Mesh Grouping Mesh HOLD Enable/Disable Mic Intercom™ Mesh Reach-Out Request HOLD Reset Mesh 1.2.0_EN_July2023...
