Page 1: User Guide

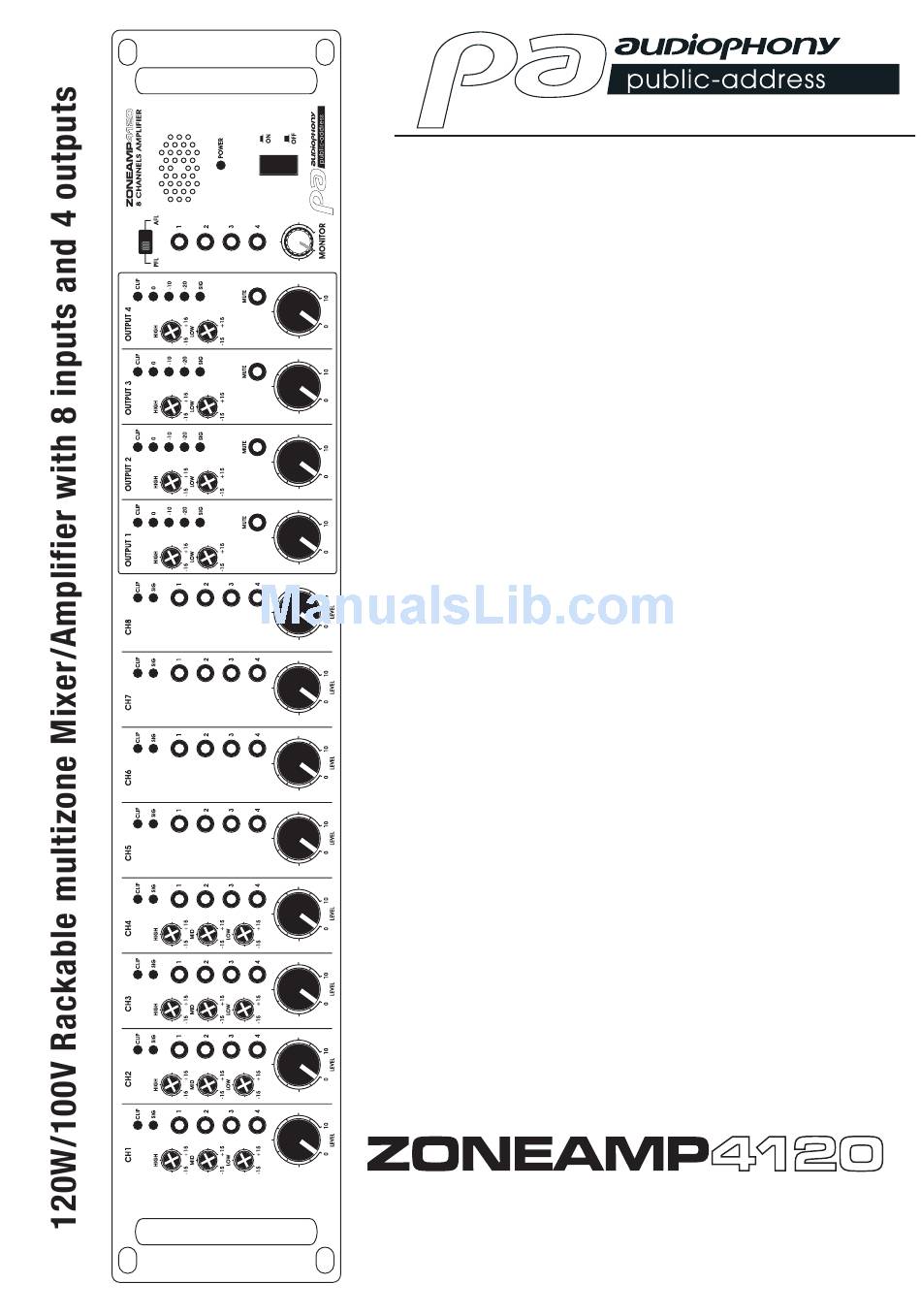

USER GUIDE 10513 - Version 1.0 / 08-2016... -
Page 2: Safety Information
English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. - Page 3 English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation.
-
Page 4: Main Characteristics
ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs 2 - Introduction The ZONEAMP4120 was clearly thought-out for professionals, and offers 4 micros/line mono inputs via XLR or Jack and 4 stereo inputs via RCA or Jack. -

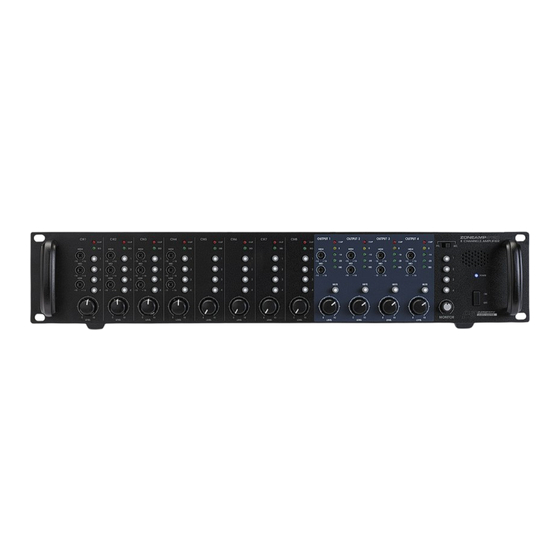

Page 5: Front Panel
English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs 4 - Presentation Front panel 10 11 Input equalization Output equalization Each channel features a 3-way signal equalization. - HIGH (High Frequency control): Allows you to adjust These knobs allow you to increase or decrease basses the output signal trebles from -15 to +15 dB at 12kHz. - Page 6 English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs POWER LED Indicates your device is ON or OFF. POWER button Allows you to activate or deactivate your device. MONITOR knob Allows you to adjust monitoring levels.
-
Page 7: Rear Panel
English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs REAR PANEL Power input LINE Outputs Connect here the supplied IEC power cord, then Connect here an amplifier in order to power up speakers. connect the other end to an electrical outlet after having... - Page 8 English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs 5 - Possible setup Microphone CD player WP-1 to power up and control zone 4 WP-1 to control zone 2 MIC-DESK4 for announcements via all zones CD player...
-
Page 9: Microphone Inputs
English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs 6 - Connectors 6.1 - Microphone inputs The microphone inputs are accessible via XLR chassis and can receive both balanced and unbalanced low-level signals Both low-impedance condenser and dynamic microphones can be connected (channels 1 to 4). -
Page 10: Wiring Outputs
English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs 7 - Wiring outputs Please make sure to respect the polarities when connecting your speakers to your amplifier. Connect the speakers equipped with transformers to COM and 100V terminals. -
Page 11: Technical Specifications
English ZONEAMP4120 - 120W/100V Rackable multizone Mixer/Amplifier with 8 inputs and 4 outputs 8 - Technical specifications Speaker OUTPUT 1 to 4 120W Power output and impedance Balanced LINE 1 to 4 outputs 0 dB / 600 Ohms Microphone channels... - Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
