  • Page 1: User Guide

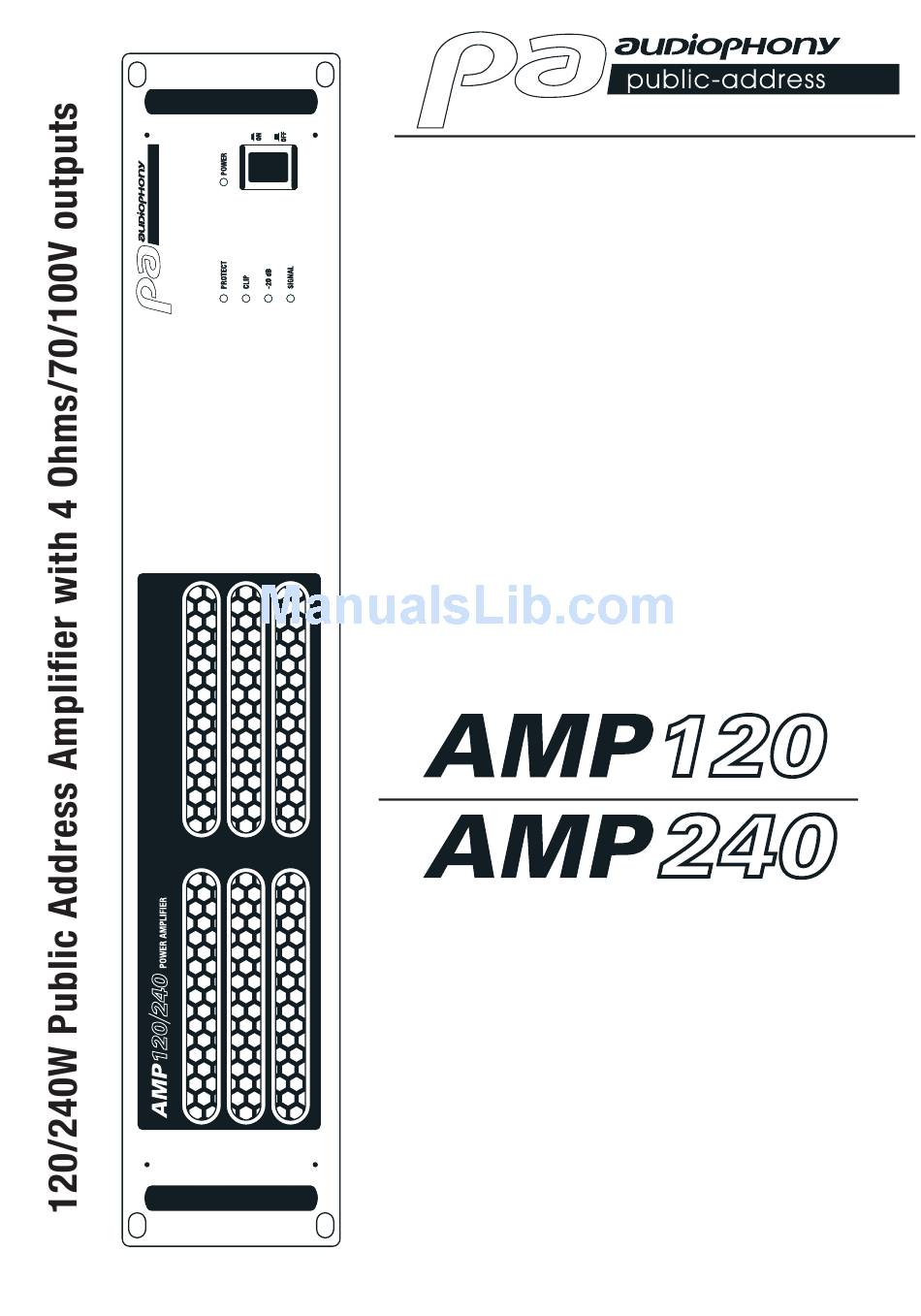

    USER GUIDE 9903 / 9904 - December 2011 Version 1.0...

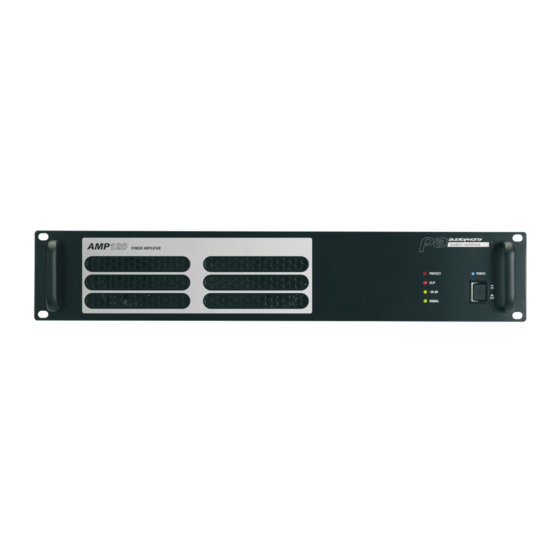

  • Page 2 AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English Page 2...

  • Page 3: Safety Information

    AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations.
  • Page 4 AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation.
  • Page 5 AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English 2 - Introduction The new AMP amplifiers series is dedicated to permanent installations and combines sound quality with ease of use. These amplifiers have been developed to fit any installation: low impedance, 70 or 100V, they will adapt to your needs.

  • Page 6: Ground Switch

    AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English HPF Switch Indicator LEDs This switch allows you to activate or deactivate the high- These LEDs indicate the status of your device: pass filter. - SIGNAL: Indicates an incoming signal.

  • Page 7: Getting Started

    AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English 4 - Getting started CAUTION: Before any cabling, please make sure the amplifier is not connected to an electrical outlet and the power switch is positioned onto OFF. Input connector The INPUT and LINE sockets are balanced.
  • Page 8 AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English Wiring and impedances Please make sure to respect the polarities when connecting your speakers to your amplifier. Connect the speakers equipped with transformers to COM, 100V or 70V terminals depending on the type of transformer.
  • Page 9 AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English 5 - Synoptic Page 9...

  • Page 10: Technical Specifications

    AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English 7 - Technical specifications AMP120 AMP240 ELECTRICAL SPECIFICATIONS Power 120 WattsΩ 240 Watts (T.H.D 1,0%, 1KHz) Gain settings -12 dB ~ 0 dB Input sensitivity 1.0 +/- 0.1 Vrms / 10 KΩ...
  • Page 11 AMP120/240 - 120/240W Public Address Amplifier with 4 Ohms/70/100V outputs English Page 11...
  • Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
