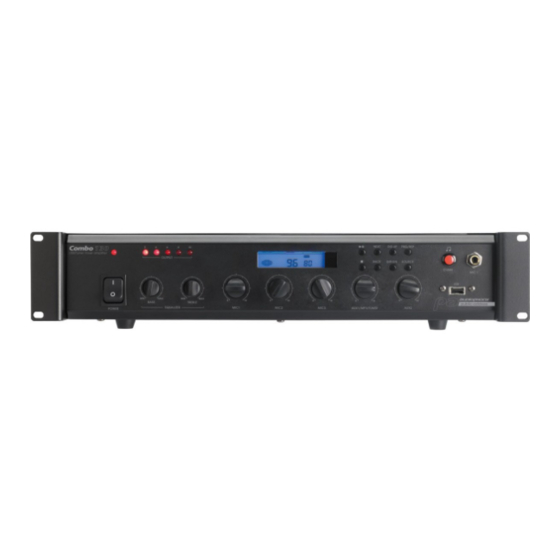

audiophony COMBO 130 User Manual

audiophony COMBO 130 User Manual

Mixer/amplifier with tuner and usb player for 100v line

Advertisement

USER GUIDE
9750 - Version 1 / 06-2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMBO 130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for audiophony COMBO 130

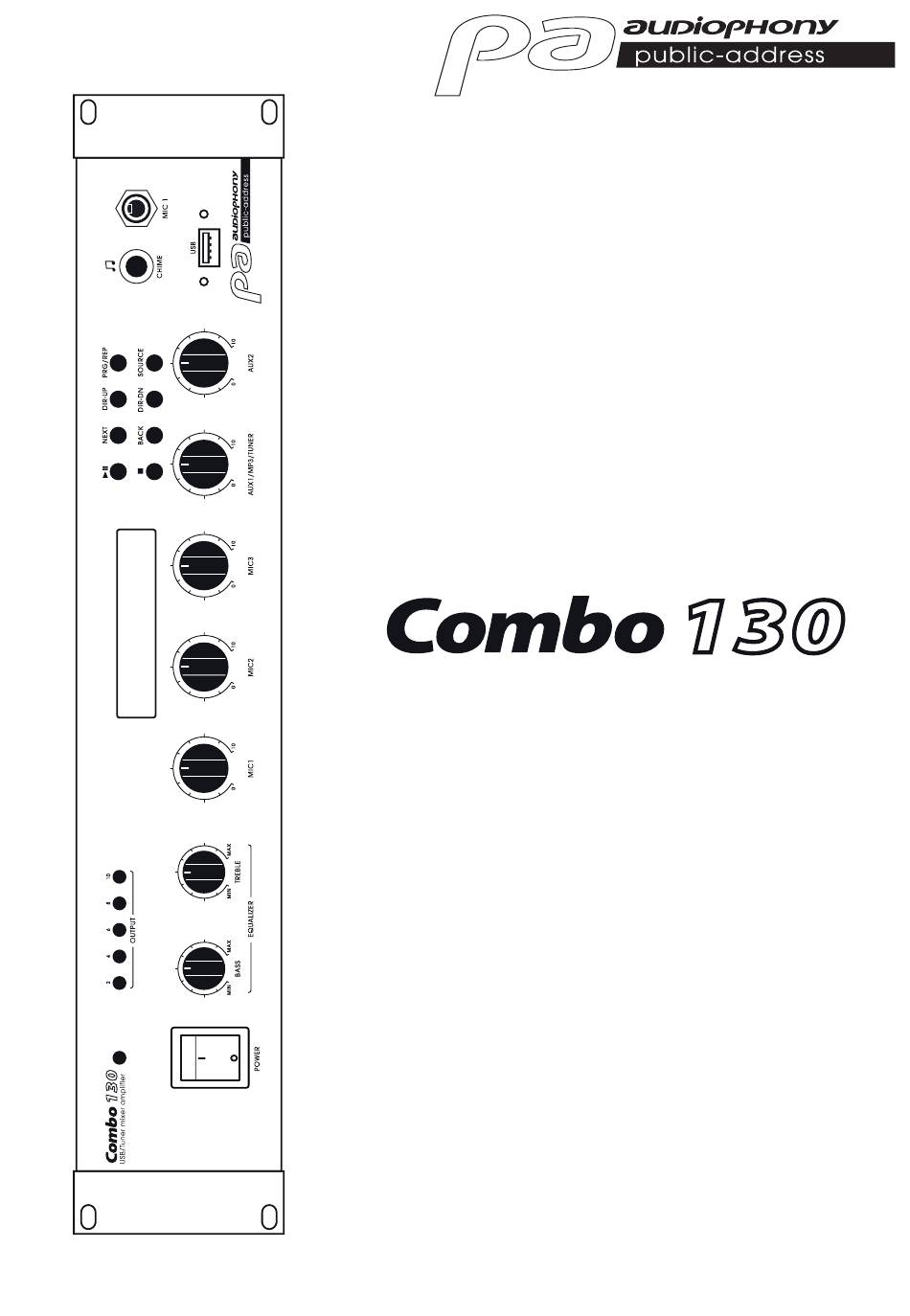

  • Page 1 USER GUIDE 9750 - Version 1 / 06-2010...
  • Page 2: Safety Information

    ENGLISH COMBO130 - Mixer/Amplifier with tuner and USB player for 100V line 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins- tructions could result in fire, electric shock, injury, or damage to WARNING : This unit contains no user-serviceable parts.
  • Page 3: Main Characteristics

    You are now in possession of a high-quality device which will bring you satisfaction. The Combo was inspired by the many years of experience of the Audiophony® brand. This user guide will allow you to understand and use all of its functions.
  • Page 4 ENGLISH COMBO130 - Mixer/Amplifier with tuner and USB player for 100V line 4 - Description 4.1 - Front panel 11 13 12 14 15 [1] Power LED [12] BACK button Indicates if the unit is ON or OFF. USB source: Goes back to the previous track. Tuner: Use this button to browse through the channels [2] Volume output indicators memorised by the tuner.
  • Page 5 ENGLISH AUDIOPHONY PUBLIC ADDRESS 4.4 - Rear panel [1] Fuse [7] Mute button If need to change the fuse, please replace it by a model Allows you to configure the mute level. The max value is with the exact same characteristics.
  • Page 6 ENGLISH COMBO130 - Mixer/Amplifier with tuner and USB player for 100V line 4.3 - Functions and additional information MUTE Chime The Mic 1 and the chime feature a priority function. The chime features 4 different tonalities. The chime Other sources will be dimmed while using the benefits from the priority function.
  • Page 7 ENGLISH AUDIOPHONY PUBLIC ADDRESS 5 - Cable diameter depending on the installation: WARNING : The SPEAKER OUTPUT delivers a dangerous voltage of 100 V Please turn your system off when changing cables. You will find below an indicative table of the cable diameter to use depending on the power and distance: Amplifier power: 100V 0,75mm²...
  • Page 8 ENGLISH COMBO130 - Mixer/Amplifier with tuner and USB player for 100V line 6 - Wiring a 100V line: Wiring the speakers: The COM terminal regroups the connectors of each zone. The speakers can be wired in parallel. The sum of the speakers must not exceed the power of the amplifier. The drawing below is an exemple of wiring across 3 zones.
  • Page 9: Technical Specifications

    ENGLISH AUDIOPHONY PUBLIC ADDRESS 7 - Technical specifications • Power: ° 130W • Amplifier settings range: ° BASS : 100 Hz (-/+10dB) • Loudspeakers output: ° TREBLE : 12 KHz (-/+10dB) ° 70 V(38 Ohms) DC ° 100 V (77 Ohms) DC •...
  • Page 10 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
