Summary of Contents for audiophony Wi SERIES
-

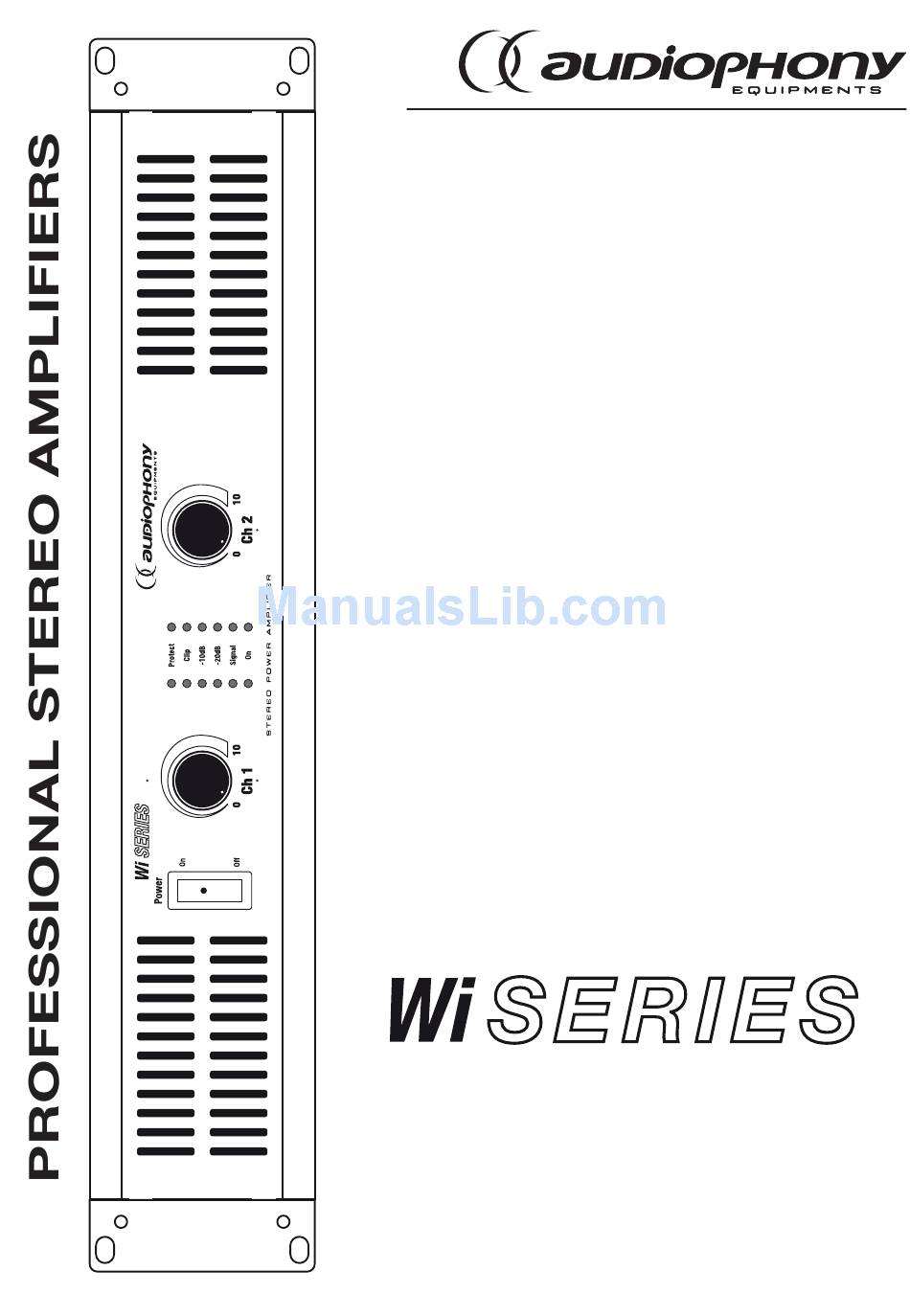

Page 1: User Guide
USER GUIDE 9561/9562/9563/9564/9565 - November 2009 Version 1.0... -
Page 2: Safety Information
ENGLISH Wi SERIES - Professional stereo amplifiers 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins-... - Page 3 ENGLISH Wi SERIES - Professional stereo amplifiers Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
-
Page 4: Main Characteristics
You are now in possession of a high-quality product which will meet your every need. These amplifiers were born from many years of Audiophony® experience and efforts. They are easy to use, fast, highly resistant: in brief, they are top-of-the-range, super-efficient products. - Page 5 ON. [2] - Cooling vents [7] - Protect LED Wi series amplifiers (apart from the Wi640) are This LED lights up to indicate the channel is in equipped with two fans located at the rear. protection mode, the output signal is interrupted by The air flow goes from the rear to the front and an internal relay.
- Page 6 ENGLISH Wi SERIES - Professional stereo amplifiers 4.2 - Rear panel 7 8 9 [1] - Cooling fan [5] - Switch Limiter The air flow goes from the rear to the front and Activates the "Limiter" function allowing you to lowers the temperature of internal components.
-
Page 7: Circuit Principle
ENGLISH Wi SERIES - Professional stereo amplifiers 5 - Circuit principle 5.1 - Wiring via terminals Stereo mode Parallel mode Mono-bridged mode 5.2 - Wiring via Speakon® connectors HP+ on 1 + HP- on 1 - Standard stereo mode HP+ on 1 +... -
Page 8: Bridge / Mono
ENGLISH Wi SERIES - Professional stereo amplifiers HP+ on 1 + HP- on 1 - Stereo mode via one single output HP+ on 2 + HP- on 2 - HP+ on 1 + HP- on 1 - Standard parallel mode... - Page 9 ENGLISH Wi SERIES - Professional stereo amplifiers 6 - Connectors 6.1 - Inputs Balanced Unbalanced 1 = Ground 1 = Ground Shunt between 3 = Coldspot (-) 2 = Hotspot (+) 2 = Hotspot (+) 1 and 3 pins Unbalanced TS...
-
Page 10: Protection Systems
ENGLISH Wi SERIES - Professional stereo amplifiers 7 - Protection systems - Short-circuits Wi series amplifiers feature multiple protection systems born from Audiophony's long experience In case of short-circuit (defective loudspeaker, in professional sound solutions, to ensure the poorly isolated cable, etc.) this system will best possible lifespan and protect the internal automatically protect the amplifier. -
Page 11: Technical Specifications
ENGLISH Wi SERIES - Professional stereo amplifiers 8 - Technical specifications Wi640 Wi900 Wi1200 Wi1500 Wi1800 Stereo output 8 Ohms 210 W 300 W 400 W 550 W 600 W 4 Ohms 320 W 450 W 600 W 750 W... - Page 12 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
