- Page 1 USER GUIDE 10412 - Version 1 / 10-2015...
-
Page 2: Safety Information
English Ti154 - 4-channel 4X150W amplifier at 4 Ohms 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins-... - Page 3 English Ti154 - 4-channel 4X150W amplifier at 4 Ohms Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
-
Page 4: Technical Specifications

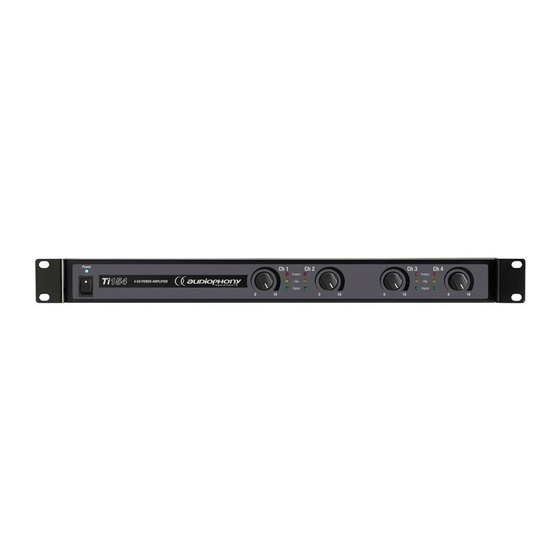

You are now in possession of a high-quality amplifier, which, we are quite certain, will bring you satisfaction. The Ti amplifiers are the fruit of many years of Audiophony® experience and efforts. Its easy to use, fast and very resistant. In brief: it is extremely efficient. - Page 5 English Ti154 - 4-channel 4X150W amplifier at 4 Ohms 1 - Description Front panel [4] - Input attenuator [1] - Mounting brackets Each channel features its own input attenuator allowing you Allow you to install your amplifier within 19" (482mm) racks..
- Page 6 English Ti154 - 4-channel 4X150W amplifier at 4 Ohms Rear panel OUTPUT BALANCED BALANCED INPUT INPUT CH 3 CH 1 BRIDGE BRIDGE BRIDGE PARALLEL BRIDGE PARALLEL CH 4 CH 3 CH 2 CH 1 CH 4 CH 2 STEREO STEREO...
-
Page 7: Cabling Principles
English Ti154 - 4-channel 4X150W amplifier at 4 Ohms 5 - Cabling principles 5.1 - Connections via rear terminal Stereo mode OUTPUT BALANCED BALANCED INPUT INPUT CH 3 CH 1 BRIDGE BRIDGE BRIDGE PARALLEL BRIDGE PARALLEL CH 4 CH 3... - Page 8 English Ti154 - 4-channel 4X150W amplifier at 4 Ohms 5.2 - Connections via Speakon® connectors Standard stereo mode Caution : Minimum impedance of 4 per channel for channels 1, 2, 3 and 4 OUTPUT BALANCED BALANCED INPUT INPUT CH 3...
- Page 9 English Ti154 - 4-channel 4X150W amplifier at 4 Ohms 6 - Connectors 6.1 - Inputs Balanced Unbalanced 1 = Ground 1 = Ground Shunt between 3 = Coldspot (-) 2 = Hotspot (+) 2 = Hotspot (+) 1 and 3 pins...
-
Page 10: Protection Systems
English Ti154 - 4-channel 4X150W amplifier at 4 Ohms 7 - Protection systems Because Audiophony knows what sound professionals - Short-circuits need, our Ti amplifiers are equipped with many protection This protection takes effect upon detection of a short-circuit systems to guarantee the best possible lifespan for the... - Page 11 English Ti154 - 4-channel 4X150W amplifier at 4 Ohms 8 - Technical specifications Power output for CH1, CH2, CH3 and CH4 8 Ohms 4 x 80 W RMS 4 Ohms (minimum) 4 x 150 W RMS Mono-bridged (CH1+CH2) and (CH3 + CH4) power output...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
