Summary of Contents for audiophony SMi Series

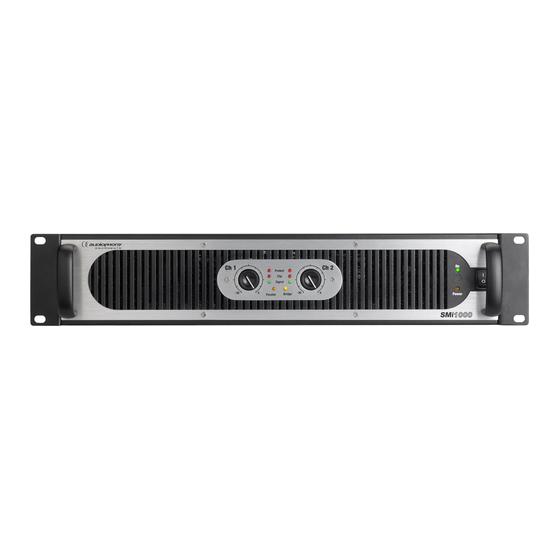

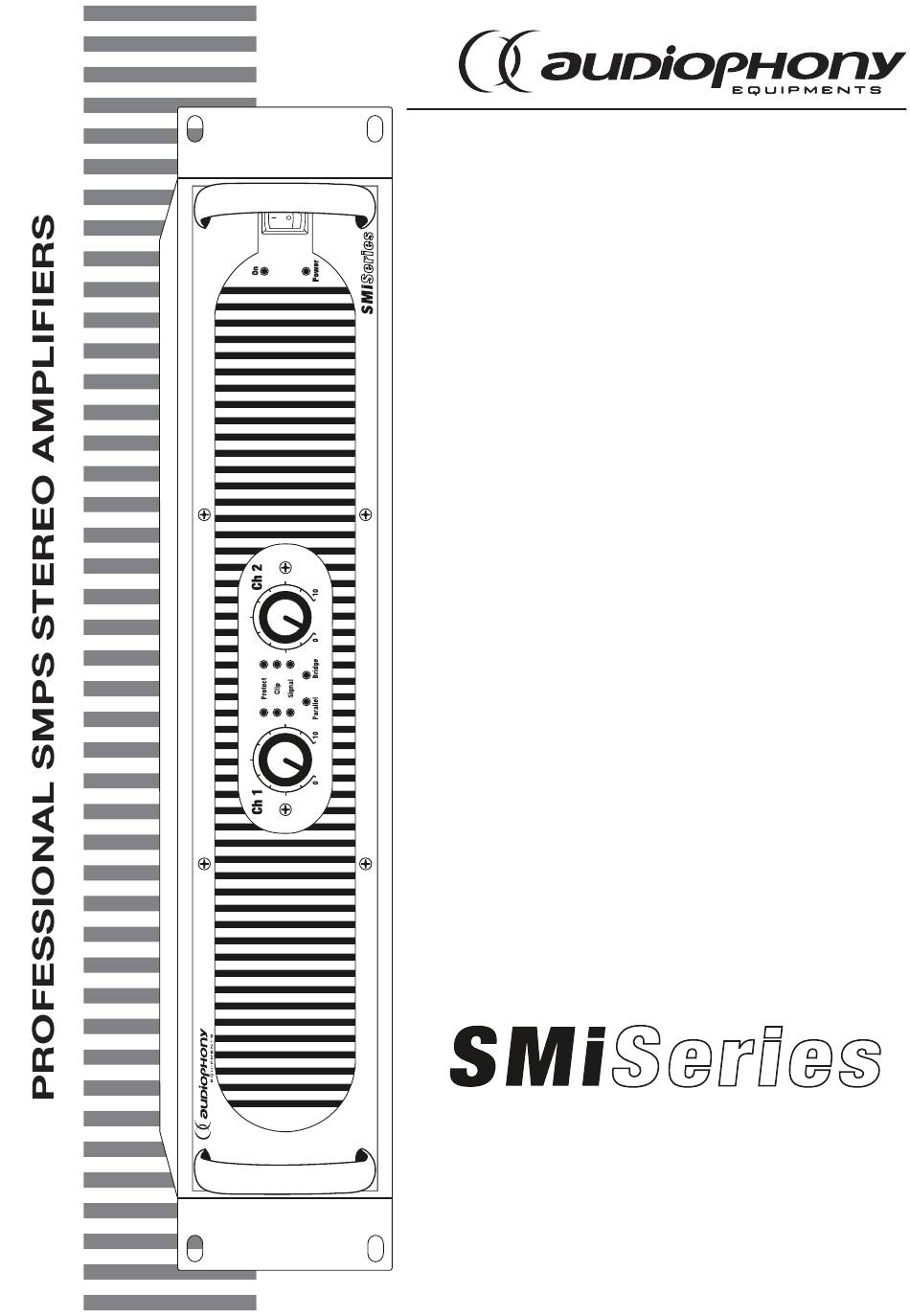

  • Page 1 USER GUIDE 9827/9828/9829 - December 2010 - Version 1.0...
  • Page 2: Important Safety Information

    English SMi series - Professional SMPS stereo amplifiers 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins-...
  • Page 3 SMi series - Professional SMPS stereo amplifiers English Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
  • Page 4: Technical Specifications

    You are now in possession of a high-quality amplifier, which, we are quite certain, will bring you satisfaction. The SMi amplifiers are the fruit of many years of Audiophony® experience and efforts. Nowadays, professional amplifiers tend to favour SMPS due to their low weight, proved reliability and their role in the preservation of the environment via low power consumption and low use of raw materials.
  • Page 5 SMi series - Professional SMPS stereo amplifiers English 4 - Description 4.1 - Front panel Mounting brackets ON/OFF Power switch Allow you to installl your amplifier within 19" (482mm) Activates/deactivates the power supply unit. racks. Input attenuator Cooling vents Each channel features an input attenuator allowing you Allow the air to flow through the amplifier to cool down to limit the incoming signal level.
  • Page 6 English SMi series - Professional SMPS stereo amplifiers 4.2 - Rear panel SMi600 SMi1000 SMi1500 and 2000 Page 6...
  • Page 7 SMi series - Professional SMPS stereo amplifiers English Unbalanced RCA input socket Parallel / Stereo / Bridge selector Allows you to receive asymmetrical line-level signals. Allows you to select the current amplifier mode: Signals are spread as follows: - Stereo: Standard mode, each channel amplifies its own signal.
  • Page 8: Connecting Your Amplifier

    English SMi series - Professional SMPS stereo amplifiers 5 - Connecting your amplifier 5.1 - Connection via Speakon® connectors in stereo mode In this mode, each channel amplifies the signal detected via its input. The signal volume output settings of each channel are independent.
  • Page 9 SMi series - Professional SMPS stereo amplifiers English 6 - Connectors 6.1 - Inputs Balanced Unbalanced 1 = Ground 1 = Ground Shunt between 3 = Coldspot (-) 2 = Hotspot (+) 2 = Hotspot (+) 1 and 3 pins...
  • Page 10: Protection Systems

    English SMi series - Professional SMPS stereo amplifiers 7 - Protection systems Because Audiophony knows what sound - DC Offset protection professionals need, our SMi amplifiers are equipped The output relays will open automatically to prevent with many protection systems to guarantee the best...
  • Page 11 SMi series - Professional SMPS stereo amplifiers English 8 - Technical specifications SMi600 SMi1000 SMi1500 Tolerance Power output in stereo mode 8 Ohms -2,5%, 10% 2 x 200 W RMS 2 x 310 W RMS 2 x 450 W RMS...
  • Page 12 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.

This manual is also suitable for:

Smi600 smi1000 smi1500 smi2000
