Page 1: User Guide
USER GUIDE 9672/9673 - September 2010 - Version 1.0... - Page 2 ENGLISH Ti SERIES - Professional stereo amplifiers Page 2...
-
Page 3: Safety Information
ENGLISH Ti SERIES - Professional stereo amplifiers 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins- tructions could result in fire, electric shock, injury, or damage to WARNING : This unit contains no user-serviceable parts. -
Page 4: Technical Specifications
You are now in possession of a high-quality amplifier, which, we are quite certain, will bring you satisfaction. The Ti amplifiers are the fruit of many years of Audiophony® experience and efforts. Its easy to use, fast and very resistant. In brief: it is extremely efficient. -
Page 5: Mounting Brackets

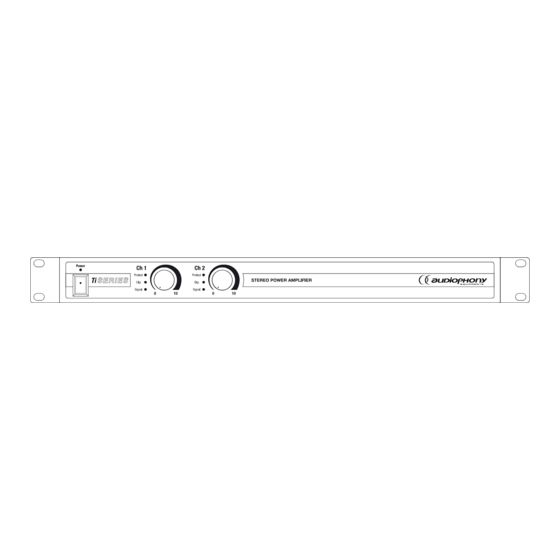

ENGLISH Ti SERIES - Professional stereo amplifiers 4 - Description Note: Ti amplifiers feature two identical 4.1 - Front panel channels (1 and 2), the description below refers to a single channel for legibility concerns. Protect LED: [1] - Mounting brackets Lights up to indicate the channel is in protection Allow you to install your amplifier within 19"... - Page 6 ENGLISH Ti SERIES - Professional stereo amplifiers 4.2 - Rear panel [1] - XLR input socket [4] - Jack input socket Allows you to receive line-level signals. This socket is able Allows you to receive line-level signals. This socket is able to receive both symmetrical and asymmetrical signals.
- Page 7 ENGLISH Ti SERIES - Professional stereo amplifiers Parallel mode Caution: Minimum impedance of 4 per channel. Mono-bridged mode Caution: Minimum impedance of 8 per channel. 5.2 - Connections via Speakon® connectors Standard stereo mode HP+ on 1 + Caution: HP- on 1 - Minimum...
- Page 8 ENGLISH Ti SERIES - Professional stereo amplifiers Caution: Stereo mode via one single output Minimum impedance of 4 per channel. HP+ on 1 + HP- on 1 - HP+ on 2 + HP- on 2 - HP+ on 1 + HP- on 1 - Caution: Minimum...
- Page 9 ENGLISH Ti SERIES - Professional stereo amplifiers 6 - Connectors 6.1 - Inputs Balanced Unbalanced 1 = Ground 1 = Ground Shunt between 2 = Hotspot (+) 3 = Coldspot (-) 2 = Hotspot (+) 1 and 3 pins Unbalanced TS Balanced TRS Ring Coldspot (-)
-
Page 10: Protection Systems
ENGLISH Ti SERIES - Professional stereo amplifiers 7 - Protection systems Because Audiophony knows what sound - Short-circuits professionals need, our SMi amplifiers are equipped This protection takes effect upon detection of with many protection systems to guarantee the best... - Page 11 ENGLISH Ti SERIES - Professional stereo amplifiers 8 - Technical specifications Ti300 Ti500 Volume and power output in stereo mode 8 Ohms 2 x 80 W RMS 2 x 130 W RMS 4 Ohms minimum 2 x 150 W RMS...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
