audiophony PREZONE642 User Manual

audiophony PREZONE642 User Manual

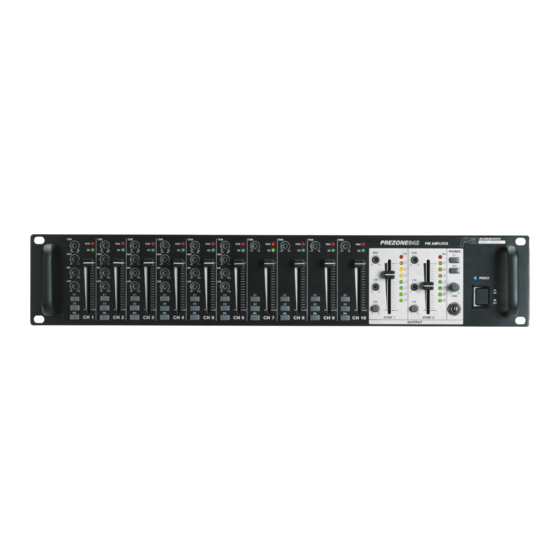

Multi-zone, mount-rackable mixer/preamplifier

Advertisement

Quick Links

USER GUIDE

9902 - December 2011 Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREZONE642 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for audiophony PREZONE642

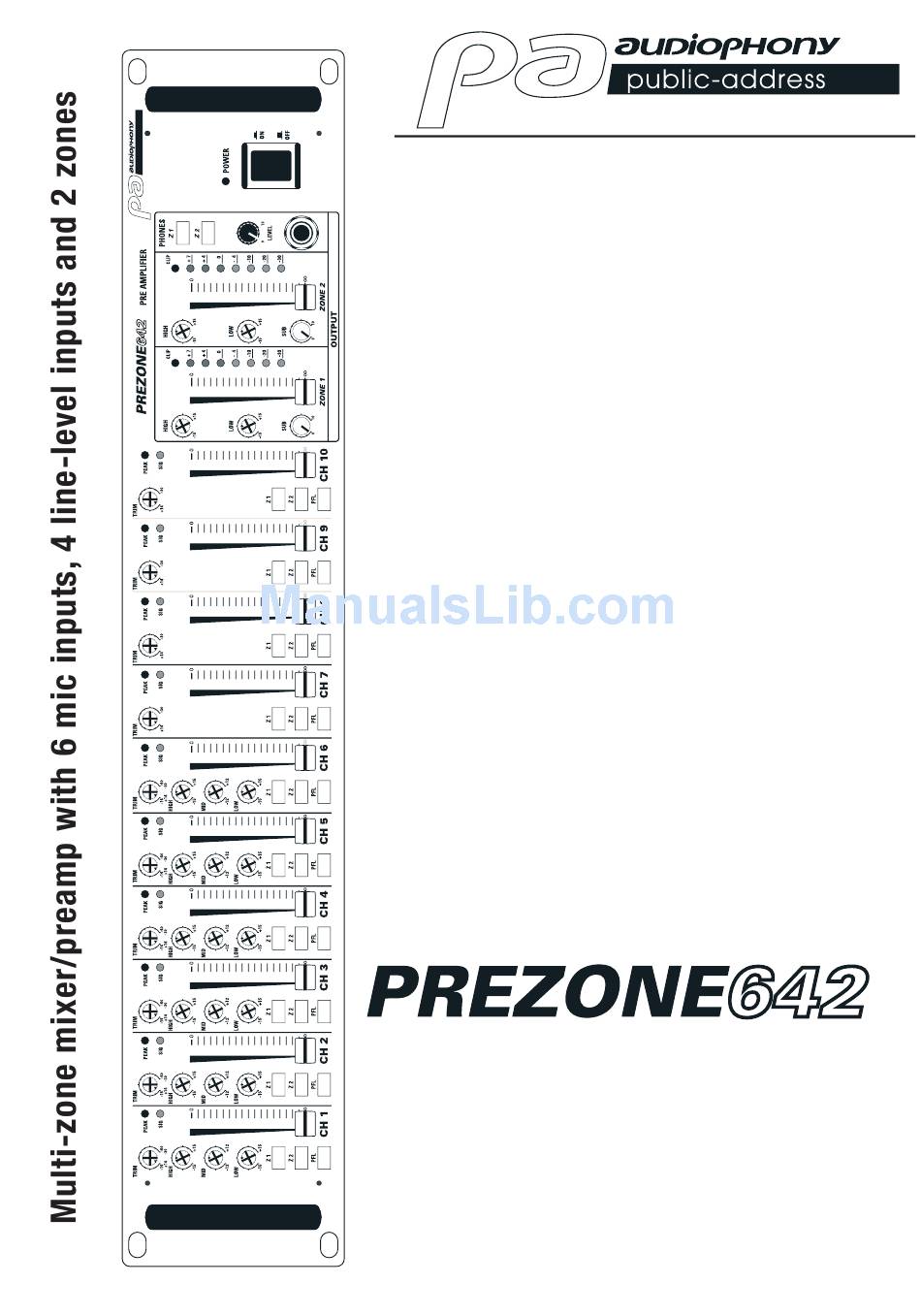

  • Page 1: User Guide

    USER GUIDE 9902 - December 2011 Version 1.0...
  • Page 2: Important Safety Information

    English PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins-...
  • Page 3 English PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
  • Page 4: Main Characteristics

    PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier 2 - Introduction The PREZONE642 is resolutely focused on professional installations: it features 6 XLR or Jack mono mic/line inputs and 4 RCA or Jack stereo inputs. Each input can see it signal sent to each zone, or both zones simultaneously in order to offer maximum possibilities.
  • Page 5: Front Panel

    English PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier 4 - Presentation Front panel 2 3 4 12 11 15 14 17 - HIGH (High Frequency control): Allows you to adjust TRIM Control knobs trebles of the corresponding channel from -15 to +15 dB Allow you to adjust input levels.
  • Page 6 English PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier PFL Buttons ZONE 1 and ZONE 2 faders Allow you to send the pre-fade signal (before channels Allows you to adjust ZONE 1 and ZONE 2 signals output alterations) to the monitoring area. volume.
  • Page 7: Back Pannel

    Back Pannel DC24V and LINK OUT connectors REC Output Your PREZONE642 may be installed in public places Connect here a recording device. and broadcast emergency signals. In order to remain The signal sent to this output is a mix of all signals activated in case of power failure, it is equipped with a received via the inputs.
  • Page 8: Standard Installation

    English PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier 6 - Standard installation Emergency system Power Amplifier CD player Cassette player Speakers Tuner Power Amplifier Speakers Page 8...
  • Page 9: Microphone Inputs

    English PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier 6 - Connectors 6.1 - Microphone inputs The microphone inputs are accessible via XLR chassis and can receive both balanced and unbalanced low-level signals. Both low-impedance condenser and dynamic microphones can be connected (channels 1 and 2).
  • Page 10 English PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier 6.3 - Insert The unbalanced insert point allows you to insert limiters, Insert plug on TRS jack compressors, special equalizers or any other processors on the signal path. The insert (Stereo Jack 6.35 mm) features a closed Ring contact.
  • Page 11: Technical Specifications

    English PREZONE642 - Multi-zone, mount-rackable mixer/preamplifier 7 - Technical specifications Balanced ZONE 1 and ZONE 2 outputs 0 dBm Output voltage Unbalanced SUB output 0 dBm Unbalanced REC output - 10 dBm Balanced microphone inputs - 60 dBm Balanced 1 to 6 line-level channels...
  • Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
