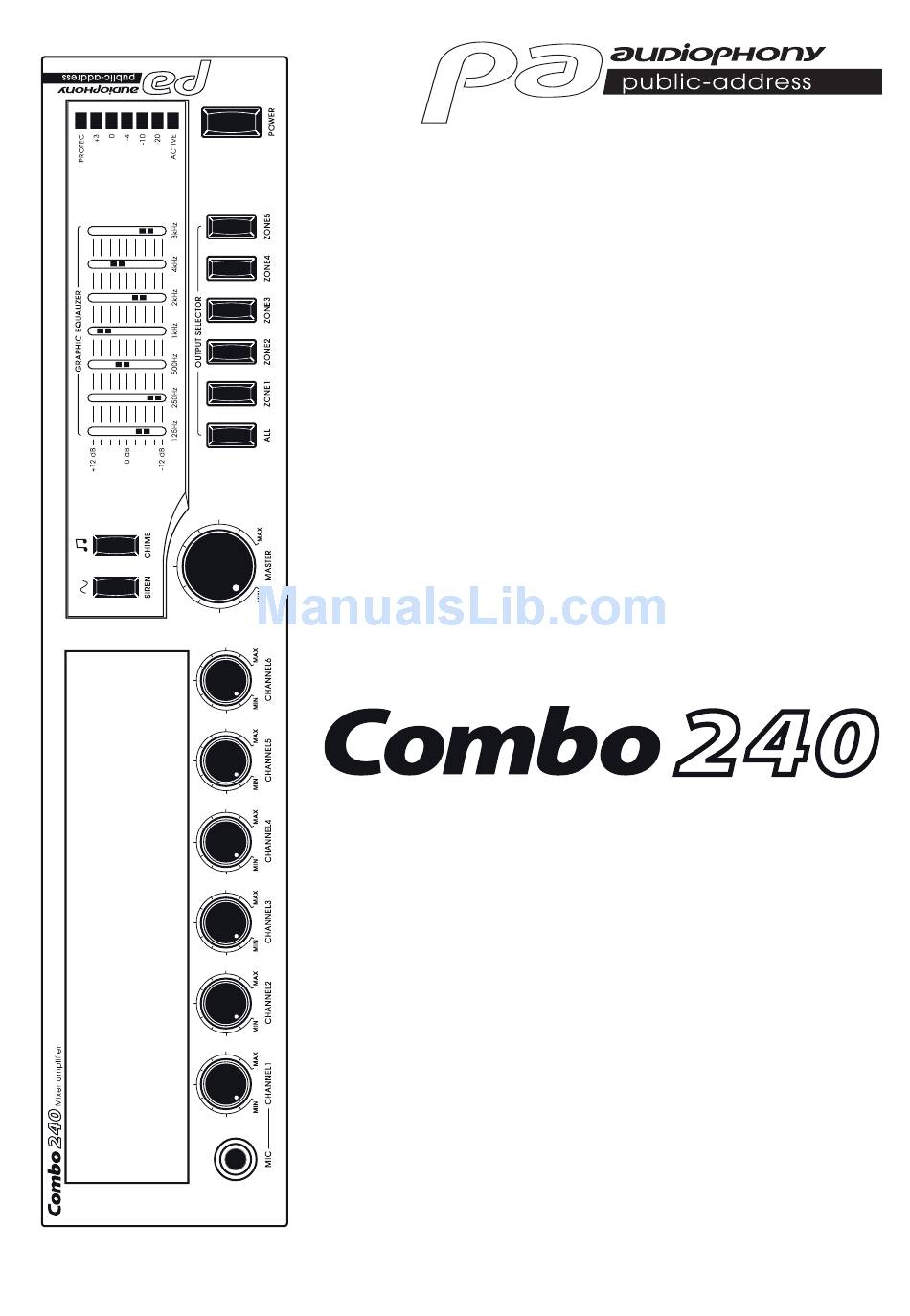

Page 1: User Guide
USER GUIDE 9751 - Version 1 / 06-2010... -
Page 2: Safety Information
ENGLISH COMBO240 - Multi-zone mixer/amplifier 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins- tructions could result in fire, electric shock, injury, or damage to WARNING : This unit contains no user-serviceable parts. -
Page 3: Main Characteristics

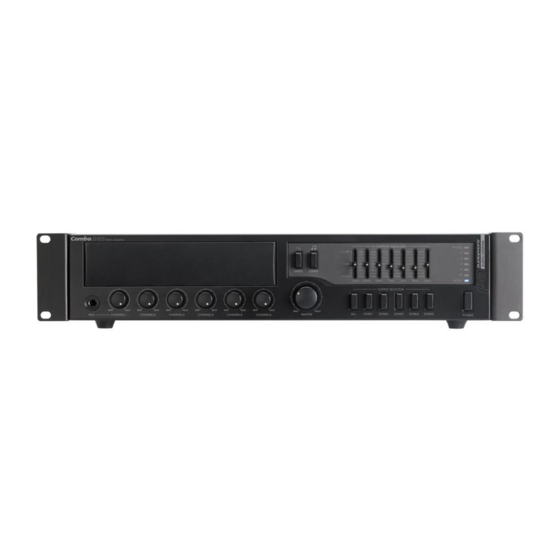

You are now in possession of a high-quality device which will bring you satisfaction. The Combo was inspired by the many years of experience of the Audiophony® brand. This user guide will allow you to understand and use all of its functions. - Page 4 ENGLISH COMBO240 - Multi-zone mixer/amplifier 4 - Description 4.1 - Front panel [1] Module compartment [6] Output/zone selectors Allows you to use an optional module. Caution: Each buttons allows you to activate/deactivate the please only use the module compatible with this corresponding output.
- Page 5 ENGLISH AUDIOPHONY PUBLIC ADDRESS 4.2 - Rear panel [1] AC power socket [5] PRIORITY switches Connect here the supplied power cord. Allow you to activate/deactivate the PRIORITY Connect the other end to a standard electrical function to the mic 1 & 2 inputs.
- Page 6 ENGLISH COMBO240 - Multi-zone mixer/amplifier WARNING: Dangerous output voltage [11] Loudspeakers output terminal (100V ) Connect your speakers here as follows: Please use electric cables compliant - When using 100V speakers, connect the com with the current safety regulations. to the COM connector and the positive to the connector corresponding to the chosen zone.
- Page 7 ENGLISH AUDIOPHONY PUBLIC ADDRESS 6 - Wiring a 100V line: Wiring the speakers: The COM terminal regroups the connectors of each zone. The speakers can be wired in parallel. The sum of the speakers must not exceed the power of the amplifier.
-
Page 8: Preparation And Installation
ENGLISH COMBO240 - Multi-zone mixer/amplifier 7 - Preparation and installation 7.1 - Installation within 19" racks First of all, get the two mounting brackets and the 6 supplied screws ready. You should also get a Phillips screwdriver to perform this procedure. •... - Page 9 It also features an AM-FM tuner. Note: We strongly recommend to only use modules recommended by Audiophony with your COMBO240. Similarly, we strongly recommend to use the Audiophony modules only with recommended amplifiers. • MPEG 1/2/2.5 Layer 2/3, WMA9 L1/L2 decoder on USB and SD/MMC support.
- Page 10 ENGLISH COMBO240 - Multi-zone mixer/amplifier 8.3 Description of the control panel RAND PRG/BND DISP MUTE NEXT DIRRY-UP BACK DIRRY-DN FUNCTION [6] REP (repeat) button Repeat the same steps until the playlist includes all In USB or SD/MMC mode: the tracks you want. Switches to another "repeat"...
- Page 11 ENGLISH AUDIOPHONY PUBLIC ADDRESS [11] MUTE button [17] DIRRY-DN button Mutes the MOD1. In USB or SD/MMC mode: Once this function has been activated, the display Skips to the previous folder. will indicate MUTE ON. Press again to deactivate this mode.
-
Page 12: Technical Specifications
ENGLISH COMBO240 - Multi-zone mixer/amplifier 9 - Technical specifications • Max. input sensitivity: - Balanced mic input: - 50dB +/- 3dB - Balanced line input: -6dB +/- 3dB - RCA line input: -50dB -6dB 3dB (-30dB -/+ 14dB -/+ 3dB) - Tele-paging input: -21dB -/+ 3dB - Unbalanced Link In: -17dB -/+ 3dB - Unbalanced amplifier input: 0dB -/+ 3dB... - Page 13 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com ®...
