Summary of Contents for audiophony WALLAMP60
-

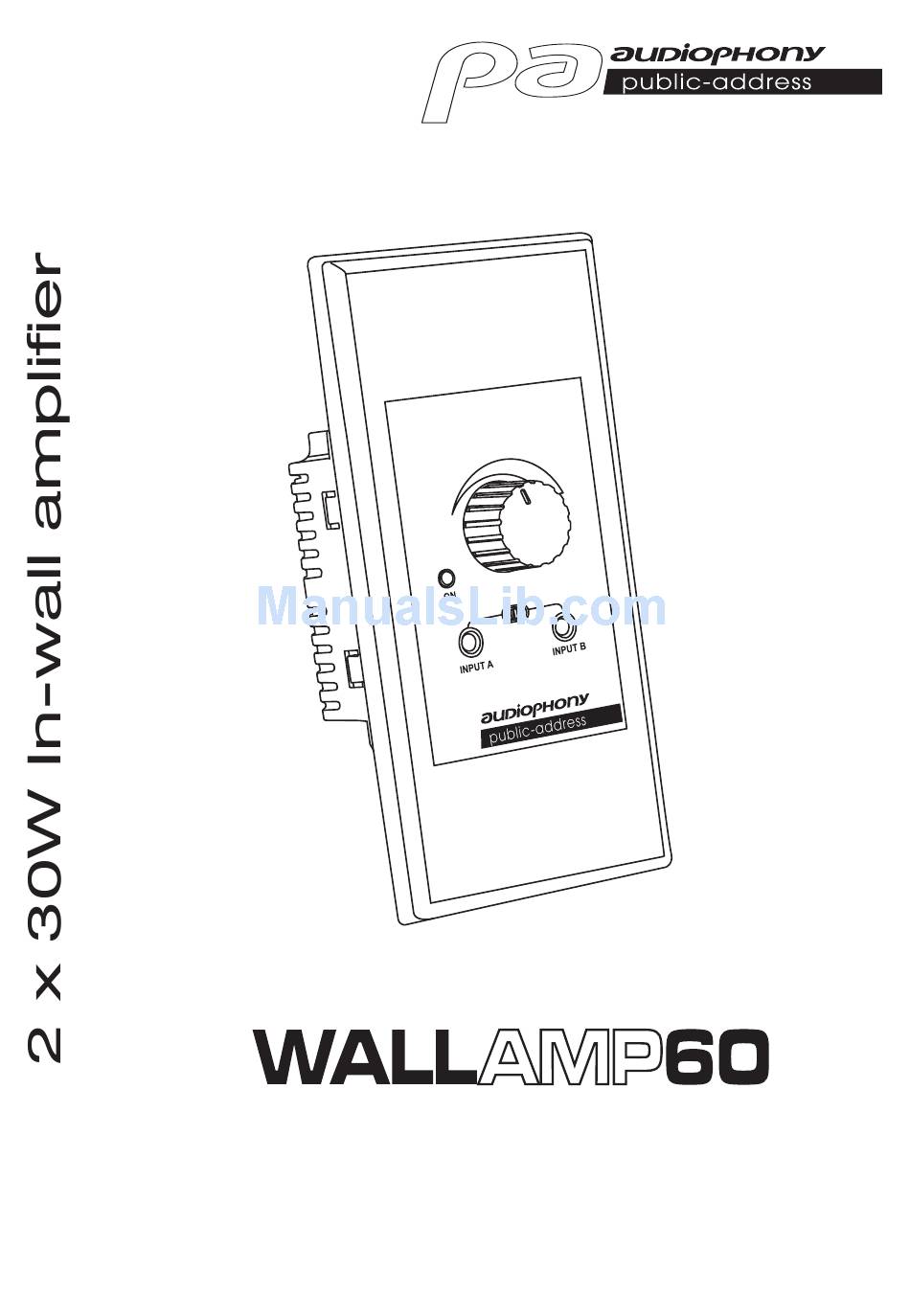

Page 1: User Guide
USER GUIDE 9908 - November 2011 - Version 1.0... -
Page 2: Safety Information
ENGLISH WALLAMP60 - 2 x 30W In-wall amplifier 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins-... - Page 3 ENGLISH AUDIOPHONY PUBLIC ADDRESS Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
-
Page 4: Main Characteristics

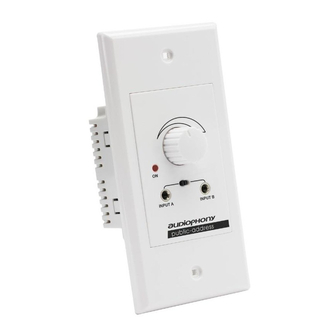

ENGLISH WALLAMP60 - 2 x 30W In-wall amplifier 2 - Introduction Thank you for purchasing the WALLAMP60. You are now in possession of a high-quality device which, we are quite certain, will bring you satisfaction. 3 - Main characteristics Pure and precise sound quality within a subtle and compact device. This 2 x 30 Watts in-wall amplifier fits into your wall like any regular switch. - Page 5 ENGLISH AUDIOPHONY PUBLIC ADDRESS Back pannel Power supply input. Output terminals. Connect here the cables from the Connect here your speaker cables. supplied power supply unit. Please use 2 x 1.5 mm² cables without The cable with white dotted line exceeding a 50m length to guarantee indicates the positive signal.
- Page 6 ENGLISH WALLAMP60 - 2 x 30W In-wall amplifier 5 - Standard installation Left Right speaker speaker 240V - 50Hz Electrical outlet 24V - 2,5A Power supply 24V - 2,5A Left and right Power outputs supply Front input NEXT BACK MP3 player CD, Tuner Radio, Ipod ...
-
Page 7: Technical Specifications
ENGLISH AUDIOPHONY PUBLIC ADDRESS 6 - In-wall mounting box dimensions 5 min. to 35 max. 49,5 Top view 7 - Technical specifications • Class-D amplifier • 2 x 30 W stereo at 8 Ohms • Inputs 1 and 2 can be accessed from the front panel via Stereo Jack 3.5 •... - Page 8 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
