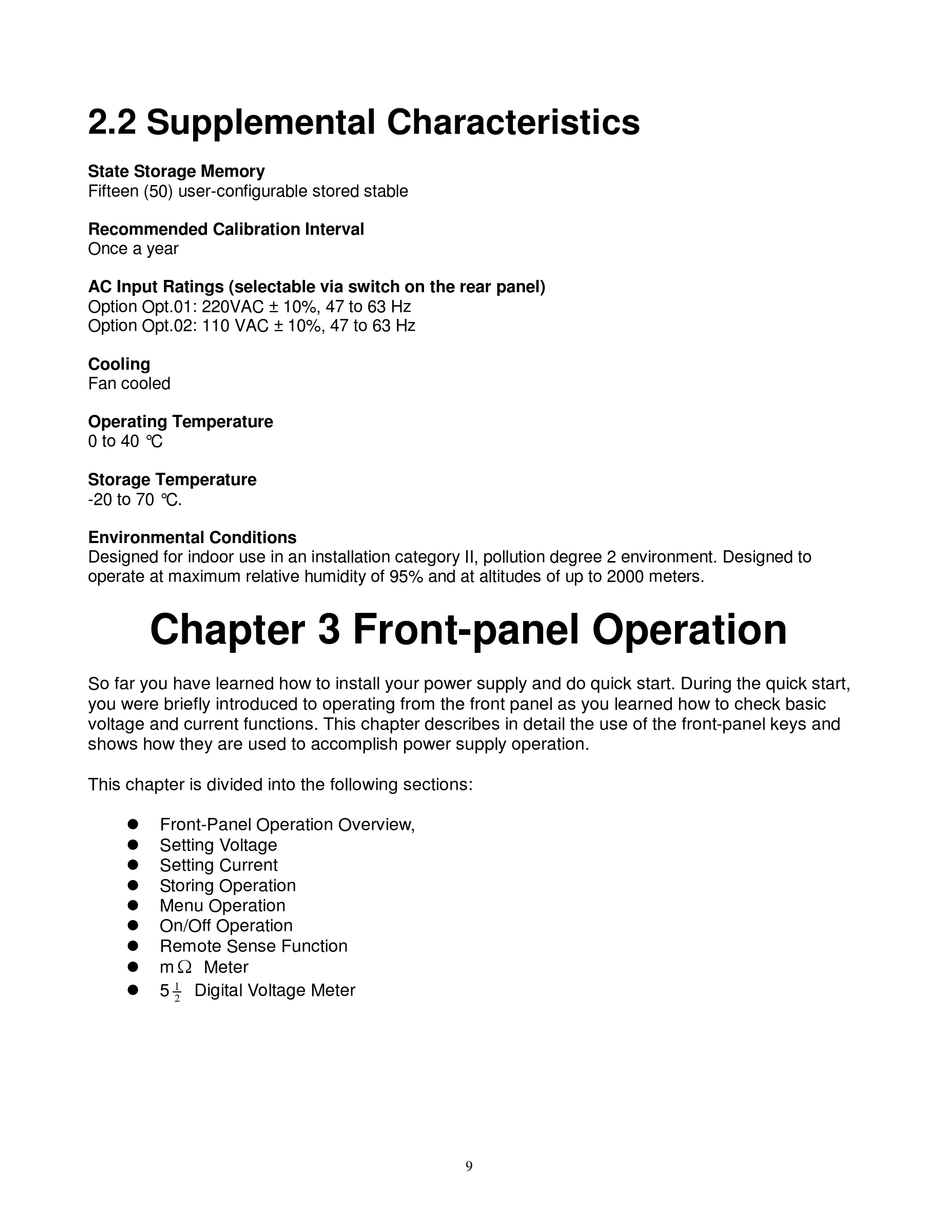

2.2 Supplemental Characteristics

State Storage Memory
Fifteen (50) user-configurable stored stable
Recommended Calibration Interval
Once a year
AC Input Ratings (selectable via switch on the rear panel)
Option Opt.01: 220VAC ± 10%, 47 to 63 Hz
Option Opt.02: 110 VAC ± 10%, 47 to 63 Hz
Cooling
Fan cooled
Operating Temperature
0 to 40 °C
Storage Temperature
-20 to 70 °C.
Environmental Conditions
Designed for indoor use in an installation category II, pollution degree 2 environment. Designed to
operate at maximum relative humidity of 95% and at altitudes of up to 2000 meters.

Chapter 3 Front-panel Operation

So far you have learned how to install your power supply and do quick start. During the quick start,
you were briefly introduced to operating from the front panel as you learned how to check basic
voltage and current functions. This chapter describes in detail the use of the front-panel keys and
shows how they are used to accomplish power supply operation.
This chapter is divided into the following sections:

Front-Panel Operation Overview,

Setting Voltage

Setting Current

Storing Operation

Menu Operation

On/Off Operation

Remote Sense Function
Ω

m Meter

1
5 Digital Voltage Meter
2
9
