Page 1: User Manual

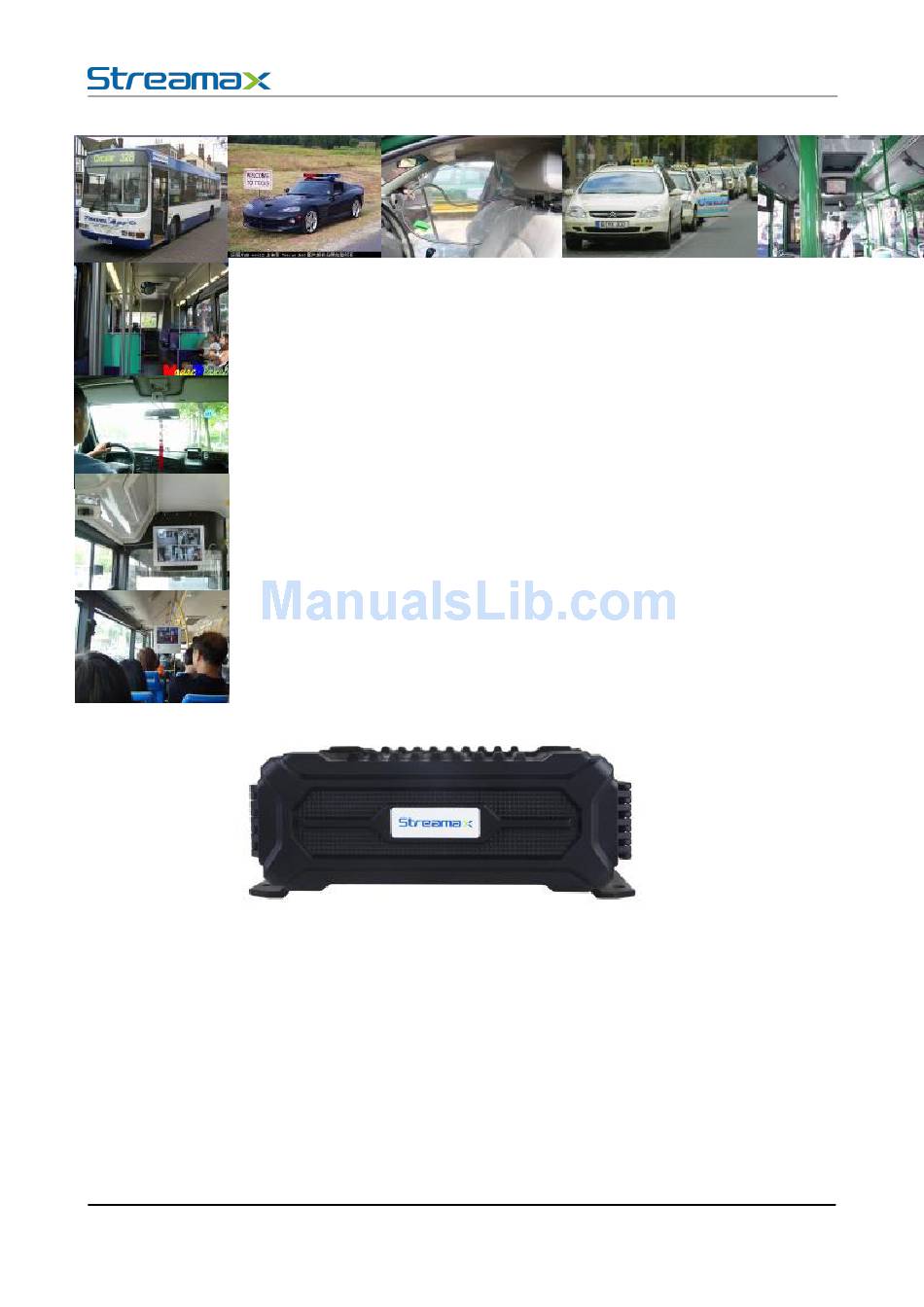

User manual for F3R-H0401 User Manual F3R-H0401 (Bus Series) Mobile Digital Video Recorder 1 -13 www.en.streamax.com For more information, please visit our website... - Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd. Copyright 2 - 13 www.en.streamax.com...
-
Page 3: Guarantee & Warnings
User manual for F3R-H0401 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing. -
Page 4: Product Characteristics

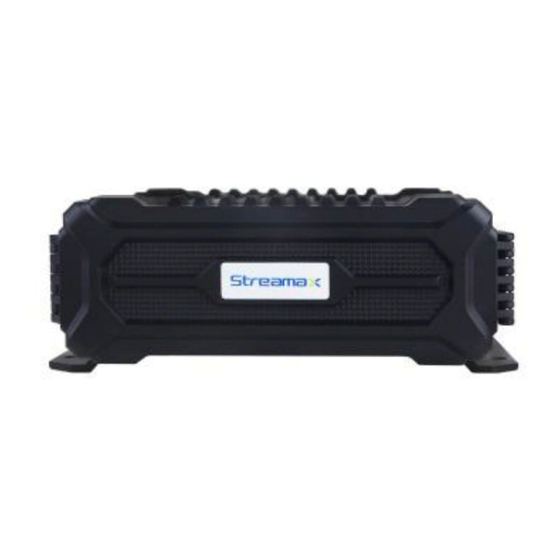

1. Product characteristics 1.1. Overview Streamax Bus series model F3R-H0401 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. -
Page 5: Specifications
User manual for F3R-H0401 Device upgrade: supports local upgrade and remote upgrade. 10) Alarm linkage: supports linkage switch value output, image display, etc. 11) Storage formatting: formatting SD cards and external USB devices. 1.4. Specifications Preview, Recording, Station report, Dispatching, Playback,... - Page 6 User manual for F3R-H0401 CIF(352x240); Digital:1080P(1920X1080),720P(1280X720). Image Quality 1-8 levels adjustable (1 is the best) Recording Mode Boot up/Manual/Schedule/Alarm Pre-recording 0-60minutes Post-recording 0-30 minutes Mirror/Dual Recording Support 4 channel by local playback, single channel by PC Playback Channel Playback software, 4/8 channel playback...
-
Page 7: System Diagram
User manual for F3R-H0401 1.5. System diagram 1.6. Dimension Unit: mm 7 - 13 www.en.streamax.com For more information, please visit our website... -
Page 8: Panel Interface
User manual for F3R-H0401 1.7. Panel interface Serial No. Print Description USB2.0 port（Type A） Power LED 8 - 13 www.en.streamax.com For more information, please visit our website... - Page 9 User manual for F3R-H0401 Recording LED USB LED Error LED Alarm LED Network LED Rear panel: Serial No. Print Description Power DC8-36V power input Panel Control panel (CP4) USB2.0 port (Type B/ to connect fire proof box) Sensor Sensor port...
- Page 10 User manual for F3R-H0401 1.8. Hard disk installation (For SSD+SD card F3R) 1.9. Means to get SD-SIM (For SSD+SD card F3R) 10 - 13 www.en.streamax.com For more information, please visit our website...
-
Page 11: Definition And Pictures Of External Cables
User manual for F3R-H0401 1.10. Means to get SD-SIM (For dual SD cards F3R) 1.11. DEFINITION AND PICTURES OF EXTERNAL CABLES Alarm cable definition Serial cable definition 11 - 13 www.en.streamax.com For more information, please visit our website... - Page 12 User manual for F3R-H0401 2. FAQ The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
- Page 13 User manual for F3R-H0401 of the task table. How to install the WIFI antenna? The antenna must be installed on unobstructed place of the roof, and be fixed with glue. The device cannot be shut down when in ignition ON/OFF mode.
