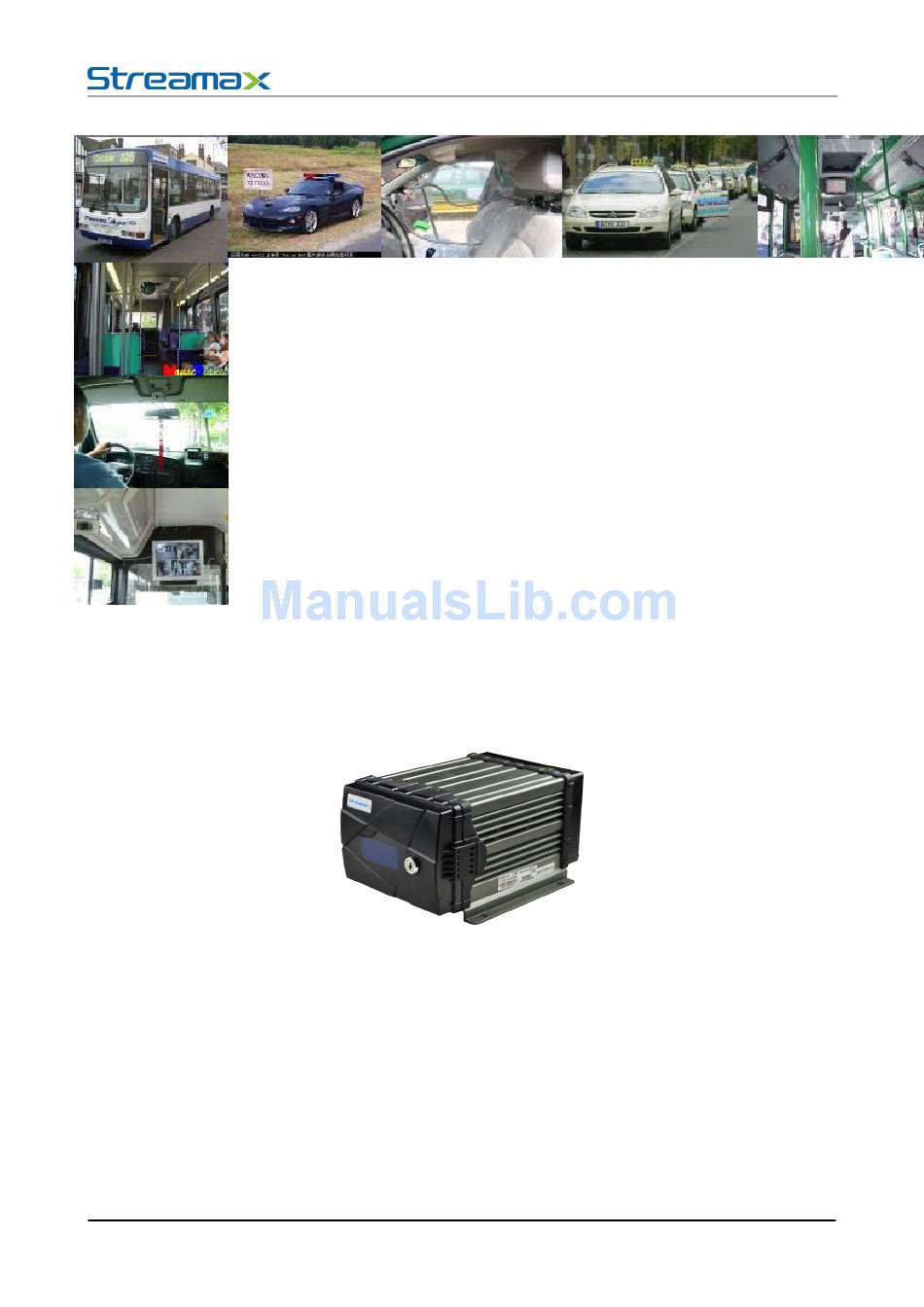

Page 1: User Manual
User Manual for A5-E0804 User Manual A5-E0804 MDVR Mobile Digital Video Recorder www.en.streamax.com For more information, please visit our website... - Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd. www.en.streamax.com...
-
Page 3: Guarantee & Warnings
User Manual for A5-E0804 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing. -
Page 4: Product Characteristics
GPS locating technology. It can realize 720P, CIF, HD1 and D1 video recording, vehicle driving information recording and wireless data uploading. With center software it also achieves alarm linkage central monitoring, remote management and playback analysis. A5-E0804 is easy to use with modular design, multi-functions, superior anti-vibration, flexible installation and high reliability, etc. - Page 5 / batch import 1.2.3. Software advantage 1) Streamax owns patented invention of the excellent and strong file management systems to ensure the integrity of audio and video data and reliability. 2) File list, index and other important data backup will not lead to a large number of data can not be accessed in a slight hard disk physical damage.
-
Page 6: Specifications
User Manual for A5-E0804 6) Monitor video streams coherence. Watermark technology: prevents data tempering and guarantees the video authenticity and legal efficiency. 1.4. Functions Local recording and video playback: 720P/WD1/WHD1/WCIF/D1/HD1/CIF resolution optional. Driving recording: provides statistics on speed, turning, brake, reverse, opening door, etc. - Page 7 User Manual for A5-E0804 Video/Audio Compression H.264/ADPCM PAL: 720P(1280X720) WD1（960X576, D1(704X576) WHD1(960X288), HD1(704x288) WCIF(480X288), CIF(352x288) Image Resolution NTSC: 720P(1280X720) WD1（960X480, D1(704x480) Recording WHD1(960X240), HD1(704x240) WCIF(480X240), CIF(352x240) Digital: 720P(1280X720) Image Quality 4 Levels adjustable Manual/Schedule/Alarm (sensor trigger, speed, Recording Mode acceleration, video loss, temperature)
-
Page 8: System Diagram
User Manual for A5-E0804 Operating Temperature -25℃- +60℃ Environment Relative Humidity 8%-90% Certificates CE, FCC, MIL-STD-810F 1.6. System diagram www.en.streamax.com For more information, please visit our website... -
Page 9: External Interface
User Manual for A5-E0804 1.7. Externalinterface 1.7.1. Dimension (Unit: mm) 1.7.2. Front panel Serial No. Print Description WiFi antenna interface GPS antenna interface www.en.streamax.com For more information, please visit our website... - Page 10 User Manual for A5-E0804 3G antenna interface USB interface Debug test interface SD/SMI1/SIM2 Slot Mirror image SD card/SMI1/SIM2 Slot 1.7.3. Rear panel Serial No. Print Description DC8-36V Power input External CANBUS USB interface to connect fire proof box Audio/Video input1~8...
- Page 11 User Manual for A5-E0804 1.8. Hard disk installation instruction 1.9. Sim card installation instructions www.en.streamax.com For more information, please visit our website...
- Page 12 User Manual for A5-E0804 2. FAQ The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
- Page 13 User Manual for A5-E0804 of the task table. How to install the WIFI antenna? The antenna must be installed on unobstructed place of the roof, and be fixed with glue. The device cannot be shut down when in ignition ON/OFF mode.
