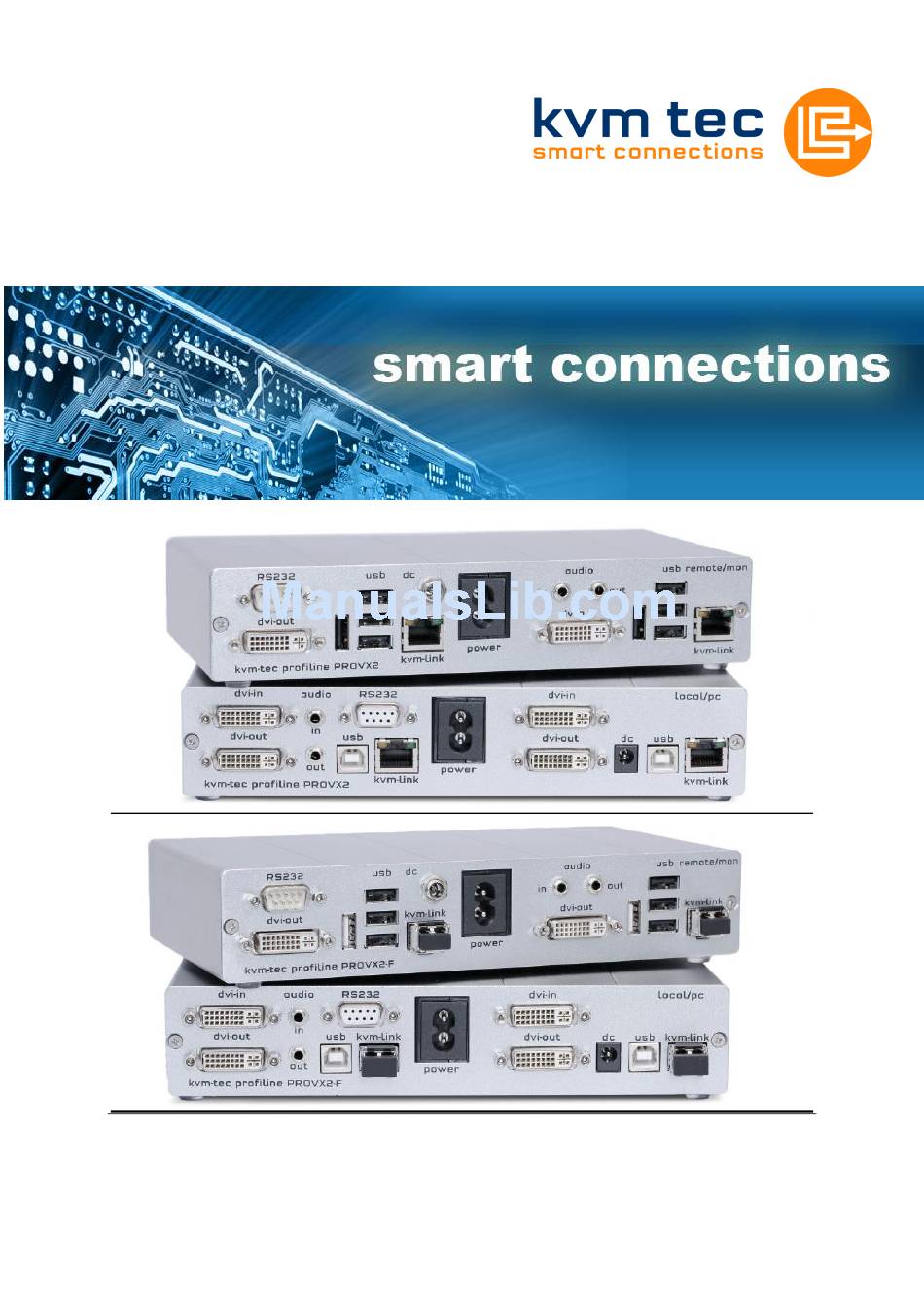

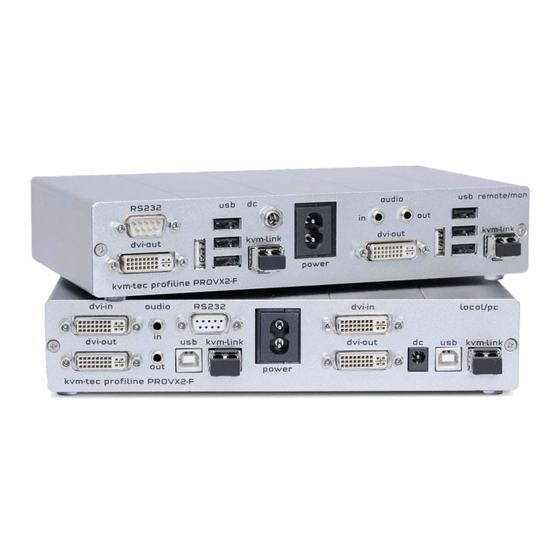

- Page 1 Part No. 6202 PROVX2 Part No. 6302 PROVX2-F Profiline PROVX2/PROVX2-F KVM Extender Instruction Manual...
-
Page 2: Specifications
KVM-TEC PROVX2(-F) Ver. 1.1 Long 1 PROVX1 Package contents 1x PROVX2(-F) / PC 1x USB/Audio cable 1x PROVX2(-F) / Monitor 1x Instruction manual 2x Power cable 2pol. 8x Rubber feet 2x DVI-cable 4x SFP Modul-Multimode (only by Fibre) 2 Specifications Max. - Page 3 KVM-TEC PROVX2(-F) Ver. 1.1 Long 3.1 Plug in/unplug the CATx cable The Masterline MVX CATx Extender is delivered with an RJ45 socket. Plug the CATx cable with the corresponding RJ45 plug (see section 7 requirements for CATx cable) into the RJ45 socket. Check that the plug is latched in place to prevent faults.
-
Page 4: Mounting Options
KVM-TEC PROVX2(-F) Ver. 1.1 Long 4 Start up Switch on all devices. Both Extender units will start an automated initialisation process, signified by a blinking red status light, this may take a few seconds. When the status light turns green, all signals will be transmitted. -
Page 5: Menu Settings
FW Version Rem=1178 Loc=1178 6.1 Menu Item „U“ Used to perform a firmware update. The latest version of the firmware can be downloaded from www.kvm-tec.com. Each update file is accompanied by a detailed description of the update process. – 2522 Oberwaltersdorf –... - Page 6 KVM-TEC PROVX2(-F) Ver. 1.1 Long 6.2 Menu Item „M“ Allows the user to enable/disable USB High Speed Memory Option memory option. When Enable: send ID to distributor activated USB flash storage and external storage devices may be = 3fe687d5 used via the Extender.
- Page 7 KVM-TEC PROVX2(-F) Ver. 1.1 Long 6.4 Menu Item „I“ The monitor synchronization can Monitor sync disabled be turned on and off. When enabled, the refresh rate of the Enter 1 for enable or graphics card of the PC and that...
- Page 8 KVM-TEC PROVX2(-F) Ver. 1.1 Long 6.6 Menu Item „V“ This is where VGA preferences can be set and optimised. By pressing the “F1“ and “F4“ keys the display area can be moved up and down. “F2“ and “F3“ shift the display area left and right.
- Page 9 KVM-TEC PROVX2(-F) Ver. 1.1 Long 6.7 Menu Item „N“ This menu sets the volume of the audio input on the remote extender (microphone). Default value is „5“ and can amplified up to „9“ and reduced down to „0“. At „0“ the audio input on the remote extender is disabled.
- Page 10 KVM-TEC PROVX2(-F) Ver. 1.1 Long 7 Requirements Requirements for Cat5/6/7 cables: The pins are connected 1:1 Caution: the cable pairs must be twisted to EIA/TIA-568A (rare) or EIA/TIA-568 B (common) pairs! Erroneous assignments can not be found with a simple cable tester.
- Page 11 KVM-TEC PROVX2(-F) Ver. 1.1 Long 8 Guidelines KVM-TEC Electronic GmbH Kulturstrasse 1, 2522 Oberwaltersdorf, Austria Commercial register number: FN 272328h Lg Wr. Neustadt DOCUMENT OF CONFORMITY CE KONFORMITÄTSERKLÄRUNG I hereby declare that the device: KVM-Extender Type/Modell: PROVX Digital KVM Extender/PC und Digital KVM Extender/Mon when used with a shielded CATx cable fulfils the requirements of EU Directive 89/336/EWG „Electromagnetic Compatibility“...
- Page 12 KVM-TEC PROVX2(-F) Ver. 1.1 Long 9 Support If you have any questions about our products, please contact your dealer. Kulturstraße 1 2522 Oberwaltersdorf Tel / Fax: 0043 (0) 2253 81912 Email: office@kvm-tec.com Web: www.kvm-tec.com Find newest updates FAQs homepage: http://www.kvm-tec.com/support –...
