Summary of Contents for KVM-TEC Matrixline 2000 Series

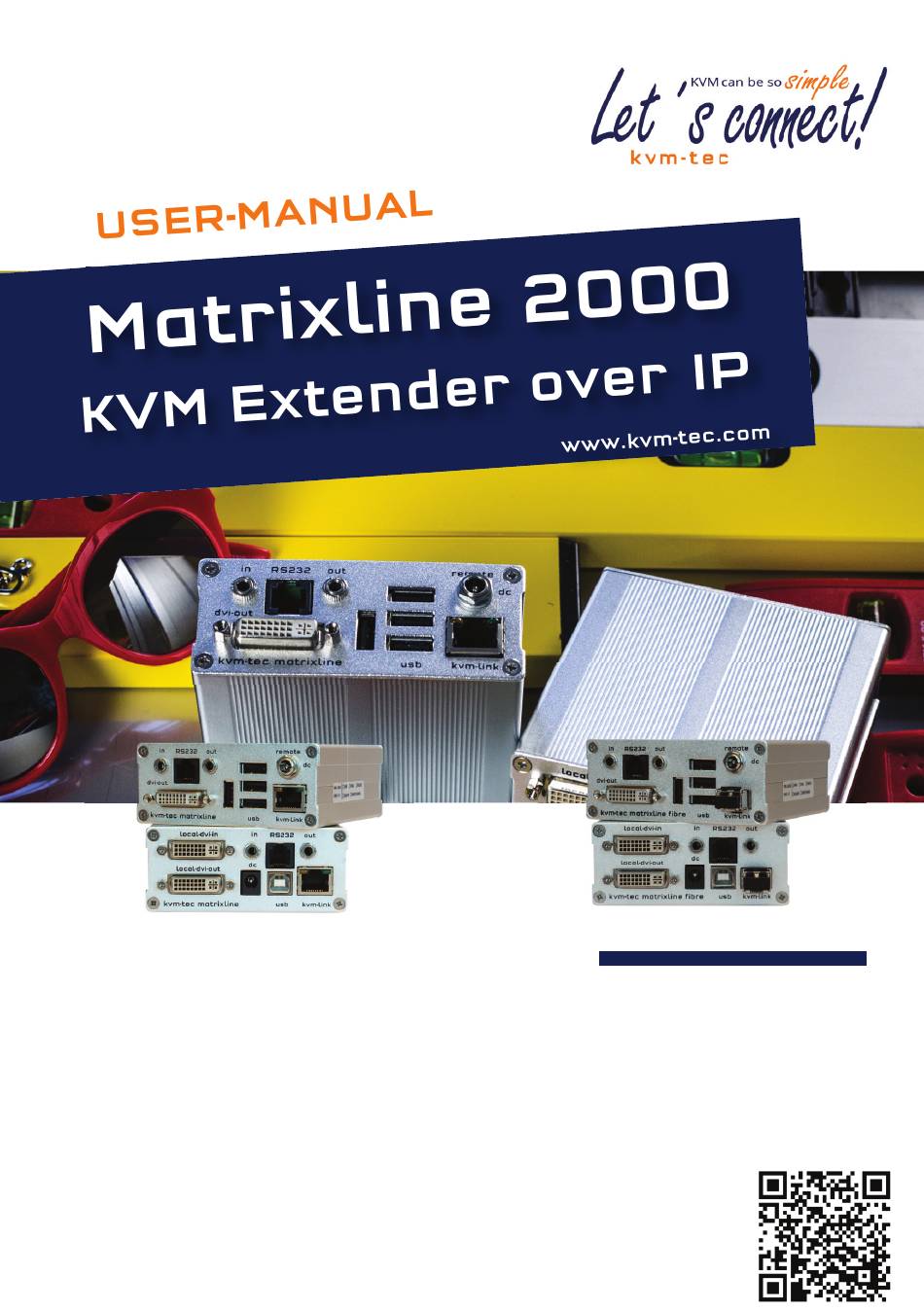

- Page 1 SMARTLINE SVX1 SMARTLINE SVX1 MATRIXLINE FIBER MX-F MATRIXLINE FIBER MX-F MATRIXLINE MX 6811L CPU/LOCAL 6711L CPU/LOCAL 6811R CON/REMOTE 6711R CON/REMOTE MASTErLINE MVX1/MVX1-F KVM EXTENDEr Check out our Installation Channel:...
-
Page 2: Table Of Contents
2.3 Installing the extender 2.4 Startup 2.5 Replacing the SFP module 2.6 Removing a CATx cable 2.7 Removing a fiber cable 3.1 How to access the main menu 3. Extender SETTINGS 3.1 How to access the main menu 2 | kvm-tec... - Page 3 3.9.7. How to use the power saving mode 3.9.8. How to select your type of keyboard 3.9.9 How to change keyboard fallback mode 3.9.9 Keyboard Fallback Modus wechseln 3.9.10 How to change keyboard shortcuts 3.9.11 Close extender menu 3.9.12 Hide display status screen kvm-tec | 3...
- Page 4 5. Maintance and care 6. Troubleshooting 7. Disposal 8. Warranty 9. Support 10. Declaration of conformity 11. Cable requirements 11.1 Requirements for CAT5e/6/7 cables 11.2 Requirements fiber cables 11.2.1 Multi-Mode (standard) 11.2.2 Single-Mode (optional) 12 Requirements network switch 4 | kvm-tec...
- Page 5 TABLE OF CONTENT 13. First aid 14. Extended warranty 15. Notes kvm-tec | 5...
-
Page 6: Introduction
In these user instructions the Matrixline MX/MX-F KVM Extender is referred to as ‘product’ or ‘extender‘. The MX/PC is referred to as the ‘local unit’ and the MX/Monitor is referred to as the ‘remote unit‘. 6 | kvm-tec... -
Page 7: Safety Instructions
Do not use other adapters. • Prior to connecting to the mains, make sure your local mains voltage matches the rating indicated on the product. • The product must be connected to a permanent and earthed AC wall socket. kvm-tec | 7... - Page 8 Unplug all connections before cleaning the product. Do not use wipes or chemicals as these could damage the surface. Wipe the housing with a damp cloth. Electrical/ electronic parts must not be cleaned. • Alterations to the product and technical modifications are not permitted. 8 | kvm-tec...
-
Page 9: Technical Specifications
97,5 x 41 x 103,5 mm / 3.83x 1.57 x 4.7 inch ” Weight: local unit 302g/0.66lbs. remote 291g/0.64lbs Expected product life: 82 820 hours / 9.5 years Laser MVX1-F: Class 1 Laser Product 1 according to DIN 40008/EN and VDE 0837 kvm-tec | 9... -

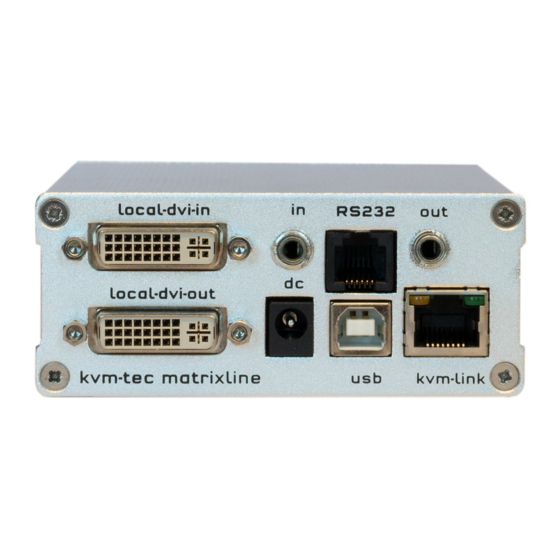

Page 10: Product Elements
Audio In from PC Audio Out to PC kvm-link/ RJ45 socket Connection for CAT5/6/7 cable or fiber cable USB connection Connection for 12 V power supply dvi-out DVI connection to monitor Power/Status LED Displays the status of the extender 10 | kvm-tec... - Page 11 Audio Out to speakers etc. USB connections (e.g. for keyboard and mouse) Connection for 12 V power supply kvm-link/ RJ45 socket Connection for CAT5/6/7 cable or fiber cable dvi-out DVI-D connection to monitor Power/Status LED Displays the status of the extender kvm-tec | 11...
-
Page 12: Meaning Of Led Indicators
Fast Update in Progress Green Update Succedded Green V. fast Yes** Red/Green V. fast rJ45 Socket LEDs * Yellow Yellow Slow Green Green V. fast * MX only ** Rem. Only Table 1: Meaning of LED indicators 12 | kvm-tec... -
Page 13: Installation Of The Extender
1x RJ11 to Sub9 (RS232) Adapter 4 x rubber feet 4 x mounting pads MX 2000 Fiber SFP Module pro unit 1 x SFP Modul-Multimode module up to 500m/1640 ft (alternativ with Single-Mode up to 20km/12 mi ItemNr 6855) kvm-tec | 13... -
Page 14: Mounting Options
The following mounting kits are available: Rack Mounting Kit RMK-F - Part No. 6130 The rack mounting kit RMK-F is for mounting kvm-tec Marixline extenders. It consists of a19“ rack shelf and an alu-faceplate. Rack Mounting Kit RMK-FN - Part No. 6131 The rack mounting kit RMK-FN is for assembling kvm-tec Matrixline extenders. -
Page 15: Installing The Extender
In the case of the latter, an additional Network Switch must be installed. With a Network Switch, each user can gain quick access to any of the required computers. point to point connection Set up for Switching System up to 480 endpoints Set up for Switching Sysetm up to 480 endpoints kvm-tec | 15... - Page 16 2. INSTALLATION OF ThE EXTENDEr 2. USB from Keyboard and mouse 6. Audio to PC 2. USB to PC 5. Audio from PC 4. DVI out 4. DVI in to Monitor from PC 16 | kvm-tec...
- Page 17 HDMI socket of the CPU Local Unit (PC-in). Then connect the monitor with the HDMI-DVI cable to the CON / Remote Unit. HAVE FUN - your kvm-tec Extender is now in use for many years ( MTBF approx 10 years) kvm-tec | 17...
- Page 18 2. INSTALLATION OF ThE EXTENDEr 2. USB from Keyboard and mouse 6. Audio to PC 2. USB to PC 5. Audio from PC 4. DVI out 4. DVI in to Monitor from PC 18 | kvm-tec...
- Page 19 6. Almost done! Now connect the audio cable Local Audio / out to the PC Audio in and Remote Audio / out with the audio cable to the microphone HAVE FUN - your kvm-tec Extender is now in use for many years ( MTBF approx 10 years) kvm-tec | 19...
-
Page 20: Startup
2. Pull the metal latch of the SFP module forwards until it is at a right angle. 3. Replace the SFP module with the other module. Put the metal latch back in position. Only use SFP modules from kvm-tec, or recommended by kvm-tec. 20 | kvm-tec... -
Page 21: Removing A Catx Cable
Press the latch down and slowly pull the cable out. 2.7 rEMOVING A FIBEr CABLE 2.7 rEMOVING A FIBEr CABLE To remove a fi ber cable: • Press the latch down and slowly pull the cable out. kvm-tec | 21... -
Page 22: How To Access The Main Menu
Overview of all upgrades DDC Option DDC Option Fixed ice position 1020 x 1080 W Network Settings Network Settings G ExtenderSettings Settings Extender Switching List List of all extenders in the switching system Exit Exit 22 | kvm-tec kvm-tec | 22... -
Page 23: Status Menu
Video and uSB show if data is currently being transmitted. 3.3 DISPLAY OF FIrMWArE VErSION • Make sure that the main menu is open. The currently installed firmware version of the remote (CON) and local (CPU) extender is displayed below (e.g. ‚4267‘). kvm-tec | 23... -
Page 24: Performing A Firmware Update
It takes about 2 minutes until the fi rmware is loaded into the Extender. The bar on the right in the column the main window fi lls blue 2. is the update. ATTENTION Only if the bar is grey, the update is fi nished. 24 | kvm-tec... -
Page 25: Ddc Menü
• Press 2 to save the current DDC information. The system uses the same settings after the extender has been restarted. • Press 4 through 8 to use a predefined resolution which is saved. 3. Press ESC to go back to the main menu. kvm-tec | 25... -
Page 26: Display Unit List
3. EXTENDER sETTiNgs 3.6 DISPLAY uNIT LIST Available devices to which the user can connect are displayed here. wc verfügbaren Geräte angzeigt, mit denen sich derBenutzer verbinden kann. 26 | kvm-tec... -
Page 27: Favorite List
3. EXTENDER sETTiNgs 3.7 FAVOrITE LIST A total of 8 favorites can be defined. Connecting these 8 favorites is possible with shortcuts from 1-8. kvm-tec | 27... -
Page 28: Share List
3. EXTENDER sETTiNgs 3.8 ShArE LIST Displays all extenders that can be shared. The current screen of the work center can be shared with other remote units via this list. 28 | kvm-tec... -
Page 29: How To Change The Extender Settings
To access the Extender Settings menu: 1. Make sure the main menu is open. 2. Press the G key. The Extender Settings menu appears. 3. The extender settings are distributed across two sub-menus: remote Settings and Local Settings. kvm-tec | 29... -
Page 30: Changing Local Settings
- Press the L button to display the Local Setting menu. 3.9.2 ChANGING rEMOTE SETTINGS • Drücken Sie die r Taste um das Remote Setting Menü anzuzeigen. • Press r button to display the Remote Setting menu 30 | kvm-tec... -
Page 31: How To Optimize Vga Preferences
• Press K for automatic adjustment and positioning of the image area. • Press I to reset parameters to default values. • Press S to save the settings and exit the menu. • Press Q to exit without saving. kvm-tec | 31... -
Page 32: How To Set The Audio Volume
From the Extender Settings menu, press the r key. The remote Settings menu appears. Press the A key. The Audio Input Gain menu appears. Press arrow left / right to change volume Press arrow up / down to set directio 32 | kvm-tec... -
Page 33: Configure A Baud Rate For The Serial Rs232 Connection
In the extender settings menu, press the r button. The Remote Settings Menu is displayed. Press the r button. 2. The Baud Rate menu is displayed. To select a baud rate, press the corresponding key. The Enter Parity menu opens. Press the appropriate button to select a parity rate. kvm-tec | 33... - Page 34 The baud rate can be set in the menu. There is a universal setting for baud rates up to 9600 which transmits all different RS232 configurations transparently. For higher baud rates the following settings are available via the menu: Baudrate Parity Stopbits 4800 9600 19200 Even 38400 Mark 57600 Space 115200 230400 34 | kvm-tec...
-
Page 35: Show The Last Received Image
1. In the Extender Settings menu, press the r button. The remote Settings menu becomes Press S to activate or deactivate the function. 2. press S to activate or deactivate the function. 3. press ESC to return to the main menu. kvm-tec | 35... -
Page 36: How To Use The Power Saving Mode
1. From the Extender Settings menu, press the r key. The remote Settings menu appears. 2. Press the P key to enable or disable the power saving mode. 3. When in power saving mode, press any key to return to the menu. 36 | kvm-tec... -
Page 37: How To Select Your Type Of Keyboard
1. From the Extender Settings menu, press the r key. The remote Settings menu appears. 2. Press the K key. The Keyboard Locale menu opens: • Press E to select English (QWERTY) • Press D to select German (QWERTZ) • Press F to select French (AZERTY) kvm-tec | 37... -
Page 38: How To Change Keyboard Fallback Mode
3.9.9 hOW TO ChANGE KEYBOArD FALLBACK MODE In the Keyboard Locale menu, you can switch between keyboard layouts to navigate the On Screen Display (OSD) menu. You can choose between Francais (Azerty), English (Qwerty) and German (Qwertz). 38 | kvm-tec... -
Page 39: How To Change Keyboard Shortcuts
Press a single key. Edit the frequency with left and right arrows. OR - • Press a key combination 3.9.11 CLOSE EXTENDEr MENu So close the Extender Settings menu: • Press Q to close the Extender Settings menu. kvm-tec | 39... -
Page 40: Hide Display Status Screen
3. EXTENDER sETTiNgs 3.9.12 hIDE DISPLAY STATuS SCrEEN Press N in the Remote Settings menu. This will remove the status screen and the image chimr remains black. 40 | kvm-tec... -
Page 41: How To Switch Betwee Different Computers
2. to select a local extender press arrow up and down, or PG/uP and PGD/OWN buttons. Press Enter. The system switches to the selected Computer down. 3. with F1 - F8 favorites can be created and selected. 3.11 VIDEO ShArING see chapter 3.8 Share List kvm-tec | 41... - Page 42 3. EXTENDEr SETTINGS Videosharing 42 | kvm-tec...
-
Page 43: Network Settings
All network settings, user administration and extender management are done via the included Switching Manager software and all functions are described in the Swiitching Manager 2000 manual. You can download the manual from our website. www. kvm-tec.com 4.2 CONNECTING,DISCONNECTING Or... -
Page 44: Maintance And Care
PC (green) connection with local: IN remote: headset OUT Establish microphone connection: plug stereo-jack to the microphone input of the PC (pink) connection with local OUT. Connect the microphone to the Remote IN 44 | kvm-tec... -
Page 45: Disposal
Install current fi rmware from our homepage www.kvm- green has an incorrect tec.com/support display LED is blinking Different fi rmware Please contact the kvm-tec support team via e-mail: green or USB is not support@kvm-tec.com or by phone: +43 2253 81912 30 compatible LED are Different fi rmware... -
Page 46: Warranty
+ 1 213 631 3663 Fax: 0043 (0) 2253 81 912 99 Toll free +1 866 586 8320 Email: support@kvm-tec.com Email: officeusa@kvm-tec.com Web: www.kvm-tec.com Web: www.kvm-tec.com kvm-tec Chinasales email chinasales @kvm-tec.com Find our newest updates and FAQs on our homepage: http://www.kvm-tec.com/support 46 | kvm-tec... -
Page 47: Declaration Of Conformity
10. DECLArATION OF CONFOrMITY Eu DECLArATION OF CONFOrMITY Manufacturer: KVM-TEC Electronic GmbH Gewerbepark Mitterfeld 1A, 2523 Tattendorf, Austria Commercial register number: FN 272328h LG Wr. Neustadt I hereby declare that the device Product: Masterline MVX1 und MVX1-F Type: MX2000 - Digital KVM Extender... - Page 48 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 60950-1:2006+A2:2013, IEC 60950:2005 LASER CLASS 1: EN 60825-1:2007 compatible with IEEE 803.3z Signed for and on behalf of: KVM-TEC Electronic GmbH Place and date of issue: Tattendorf, 2018-05-09 Name, Function, Signature: Ing. Dietmar Pfurtscheller, CEO/Geschäftsführer...
-
Page 49: Cable Requirements
Only use shielded installation cable with min. cross section of 24 AWG throughout the length. • The shield should be contiguous and connected to both ends. A shielded patch cable is allowed for connection to the device. Schema EIA/TIA-568 B Color Orange/White Orange Green/White Blue Blue/White Green Brown/White Brown kvm-tec | 49... -
Page 50: Requirements Fiber Cables
1 Gigabit Switch, with true port to port transfer rates of 1 Gigabit/second The following switches have all been tested and verifi ed to work with all features of kvm-tec electronic’s SVX Smartline and MVX Masterline and MX Matrixline KVM-extenders. - Page 51 6146 NS24SFP/4SFP+ Network Switch 24x SFP/4x SFP+ 6166 NS48SFP/4SFP+ Network Switch 48 x SFP/4x SFP+ with redundancy power supply 6151 Network Switch 32 x SFP/2x QSFP+ NS32SFP+/2QSFP+ 6161 NS48SFP+/4QSFP+ Network Switch 48x SFP+ 10G / 4x QSFP+ kvm-tec | 51...
- Page 52 13. FIrST AID 52 | kvm-tec...
- Page 53 14. EXTENDED WArrANTY 2 years warrnaty Part nr 9003 Warranty extension to 5 years per set Part nr 9002 Warranty extension to 5 years per uni kvm-tec | 53...
- Page 54 15. NOTES 54 | kvm-tec...
- Page 55 | 55...
