USER-MANUAL
kvm-tec engineered 4K
System
4K Extender DP 1.2
6930 media4Kconnect DP1.2
Extender Set
6950 redundant
6970 uncompresed
Check out our Installation
Channel:
MATRIXLINE FIBER MX-F
6811L CPU/LOCAL
6811R CON/REMOTE
media4Kconnect
kvm-tec = C
connect
collaborate communicate control
smart connections
4
Advertisement
Table of Contents
Related Manuals for KVM-TEC media4Kconnect
Summary of Contents for KVM-TEC media4Kconnect
- Page 1 USER-MANUAL MATRIXLINE FIBER MX-F 6811L CPU/LOCAL 6811R CON/REMOTE media4Kconnect smart connections kvm-tec engineered 4K System 4K Extender DP 1.2 6930 media4Kconnect DP1.2 Extender Set 6950 redundant 6970 uncompresed kvm-tec = C Check out our Installation Channel: connect collaborate communicate control...
-
Page 2: Table Of Contents
3. Main Menu & Settings 5.1 Extender Care 3. Using on screen menu 5.2. Disposal 3.1. System status 6. Support & first aid 3.2. Features menu 7. cable requirements 3.3 Update menu 7.1 Requirements fiber cable 2 | kvm-tec kvm-tec | 3... - Page 3 Table of conTenT 7.1.Multi-Mode (standard) congratulations on the purchase of your new media4Kconnect DP1.2 KVM extender. 8. Switch specification You have bought a high quality extender. These instructions are part of this product. They contain important information regarding safety, use and disposal for every user 8 Requirements Network Switch of the media4Kconnect DP1.2 extender.
-
Page 4: Introduction
In these user instructions the media4Kconnect and instructions. DP1.2 is referred to as ‘product’ or ‘extender‘. The media4Kconnect DP1.2 /PC is referred to as • Keep all safety information and instructions for future reference and pass them on to the Local unit/CPU and the media4Kconnect/Monitor is referred to as the Remote unit/ CON. -
Page 5: Technical Specifications
• Use the device with a suitable, properly installed and easily accessible power outlet. Model: media4Kconnect Fiber KVM Extender • Unplug the appliance during lightning storms or when not in use. Danger ! Never touch the adapter with wet hands. -

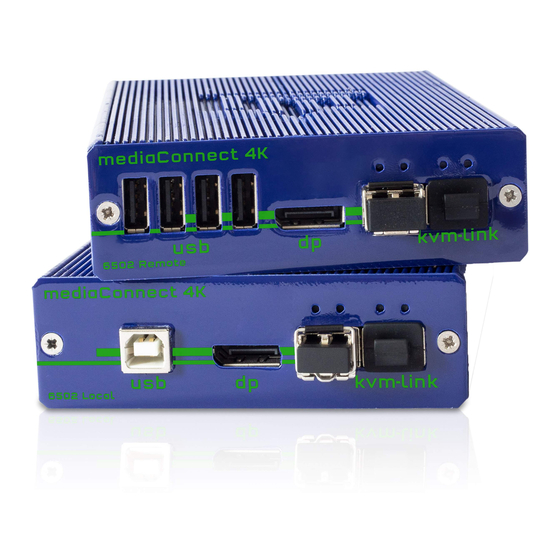

Page 6: Product Elements
DisplayPort 1.2 Input from PC dp out DisplayPort 1.2 outoput to monitor USB 2.0 USB 2.0 to PC USB 2.0 to keyboard/ mouse etc. Power/Status LED Display of Extender Status Power/Status LED Display of Extender Status 10 | kvm-tec kvm-tec | 11... -
Page 7: About The Status Led
Initialisation received command Mode normal operation Main leD 1x media4Kconnect DP1.2 /local Extender CPU Update Failed 1x media4Kconnect DP1.2 /remote Extender CON Slow Orange 2 x 12 VDC 2 A power supply Orange Fast Update in Progress... -
Page 8: Extender Installation
Switching Manager must be installed with a Network Switch, each user can gain quick access to any of the required computers. Rack Mounting Kit RMK-F The rack mounting kit RMK-F is for assembling kvm-tec media4Kconnect extenders. It consists of 19“ rack tray and an alu-faceplate. 14 | kvm-tec... - Page 9 4. Connect the DP cable to the DP socket of the PC to the DP socket DP/in of the Local device and connect the screen on the remote side with the DP cable. haVe fUn - Your kvm-tec extender is now in use for many years (MTbf approx. 10 years)! Please note that the recommended length of the display port cable should be max.
-
Page 10: Start Up
2. Pull the metal latch of the SFP+ module forwards until it is at a right angle. 3. Replace the SFP+ module with the other module. Put the metal latch back in position. Only use SFP+ modules from kvm-tec, or recommended by kvm-tec. 18 | kvm-tec... -
Page 11: Best Practice For Windows 10
2. extender InstallatIon 2. extender InstallatIon 2.7 beST PracTIce for WInDoWS 10 Disable USb energy Savings in Windows 10 20 | kvm-tec kvm-tec | 21... -
Page 12: Main Menu & Settings
SCREEN „OSD menu“ In the main menu you can make the following settings by selecting the corresponding letters: Press System status menu system status/ current status features Menu activated features Update update firmware Settings settings 22 | kvm-tec kvm-tec | 23... -
Page 13: System Status
SCREEN „System Status“ 3.2. feaTUreS MenU Pressing the „F“ key or selecting the arrow keys will take you to the features menu, where you can operate the activated features. go to chapter 4 FEATURES 24 | kvm-tec kvm-tec | 25... - Page 14 3. MaIn MenU & SeTTInGS 3. MaIn MenU & SeTTInGS The current version of the firmware can be downloaded at http://www.kvm-tec.com/ support . Each update file contains a detailed description of the update process. For further information please refer to the update chapter Connect the USB stick to the CON (REMOTE) unit (wait a few seconds until the USB stick is connected to the CON unit).
-
Page 15: Settings
Press 3 for a fix resolution 2560 x 1440 Press 4 for a fix resolution 3840 x 2160 Press 5 for a Fix HDMI 3840 x 2160 Press eSc to return to the main menu SCREEN „Settings“ SCREEN „DDC/EDID Settings“ 28 | kvm-tec kvm-tec | 29... -
Page 16: Select Keyboard Layout
(Please note that only a key combination with the keys 1 or F1 is possible with point F.) Use the arrow keys to determine the number of keystrokes required to trigger the shortcut. Then confirm with Enter. SCREEN „Keyboard shortcuts“ 30 | kvm-tec kvm-tec | 31... -
Page 17: Mouse Settings
With the M button you will open the Mouse Settings where you can adjust the speed of the Here you will find the Remote Wakeup setting. mouse with the arrow keys. SCREEN „Local Settings“ SCREEN „Mouse Settings“ 32 | kvm-tec kvm-tec | 33... -
Page 18: Video Sync Settings
This feature can be used to determine the control loop for video synchronization. The following modes can be used: • HARD - key „H“ Rapid rate of regulation • MEDIUM - „M“ button Mean rate of regulation • SMOOTH - „S“ button Slow speed of regulation 34 | kvm-tec kvm-tec | 35... -
Page 19: Extender Features
M-Unlock features - redundant or uncompressed for Switching Systems With this link you can download the Switching Manager Software Manual downloaden: www.kvm-tec.com/en/support/manuals r 4.1.3 USb SaVe feaTUre Press „U“ to go to the USB SAVE FEATURE configuration. -
Page 20: Uncompressed Mode
The packaging is made of environmentally friendly materials, which may be disposed through your local recycling facilities. By disposing of the packaging and packaging waste in the proper manner, you help to avoid possible hazards for the environment and public health. 38 | kvm-tec kvm-tec | 39... -
Page 21: Support & First Aid
If it is still not working, plug out/in USB once more Replace the USB cable Contact kvm-tec from PC to the Local leD is lighting The screen Install current fi rmware from our homepage http://www.kvm-tec.com/support support Extender in green flikers, Check if local and remote... -
Page 22: Cable Requirements
A multi-mode fiber cable should meet the following requirements • The maximum length should be 300 m (984ft). The media4Kconnect is equipped with a 10 Gigabit Switch, with a port-to-port transfer rate of 10 Gigabit/second multimode - SFP+ module, which allows a transmission distance of up to 300 m /984ft The following switches have all been tested and verified and will work with all kvm-tec •... -
Page 23: Recommended Switches
Network Switch 48x RJ45 10G / 2x SFP+ fIber SWITche 6161 NS48SFP+/4QSFP+ Network Switch 48x SFP+ 10G / 4x QSFP+ Art Nr 9003 warranty extension to 5 years per Set Art Nr 9002 warranty extension to 5 years per Unit 44 | kvm-tec kvm-tec | 45... -
Page 24: Address & Phone / Emails
11. noTeS 10. aDDreSS & Phone / eMaIlS 10. ADDRESS & PHONE/EMAIL If you have any questions about our products, please contact kvm-tec or your dealer. kvm-tec electronic gmbh Gewerbepark Mitterfeld 1A 2523 Tattendorf Austria Phone: 0043 (0) 2253 81 912 Fax: 0043 (0) 2253 81 912 99 Email: support@kvm-tec.com...
