- Page 1 USER-MANUAL MATRIXLINE FIBER MX-F 6811L CPU/LOCAL 6811R CON/REMOTE media4Kconnect smart connections kvm-tec engineered 4K System 4K Extender DP 1.2 6930 media4Kconnect DP1.2 Extender Set 6950 redundant 6970 uncompresed Check out our Installation Channel:...
-
Page 2: Table Of Contents
2.2 Mounting kit 2.2.1 Mounting (optional) 2.3 Installing the Extender 2.4 Quickinstallation & Start up 2.5 Replacing the SFP module 2.6 Removing a fiber cable 3. Main menu & Settings 3. Using on screen menu 3.1 System Status 2 | kvm-tec... - Page 3 3.4.1 Defining what DDC data your PC uses 3.4.2 Select Keyboard Layout 3.4.3 Keyboard Shortcuts 3.4.4 Mouse Settings 3.4.5 Managing Local Settings 4. features 4.1. Menu Features 4.1.1 Point to Point 4.1.2 Matrix Swithcing System 4.1.3 USB Save Feature kvm-tec | 3...
- Page 4 5. Maintance and care 5.1. Extender Care 5.2 Disposal 6.Support & first aid 7.cable Requirements 7.1. Requirements for Fiber Cable 8. Requirements network Switch 8.1. Recommended Swithces 9. Warranty 9.1. Extended Warranty 10. address & Phone/Email 11. notes 4 | kvm-tec...
- Page 5 Use the product only in the manner as described and for the areas of application as stated. following proper use and maintenance, your media4Kconnect KVM Extender will bring you joy for many years to come. kvm-tec | 5...
-
Page 6: Introduction
In these user instructions the media4Kconnect DP1.2 is referred to as ‘product’ or ‘extender‘. The media4Kconnect DP1.2 /PC is referred to as the Local unit/CPU and the media4Kconnect/Monitor is referred to as the Remote unit/ CON. 6 | kvm-tec... -
Page 7: Safety Intructions
If the product is not installed and used in accordance with this manual, it may cause disruptive interference with radio or television reception or affect other electronic products in residential areas. • Prior to connecting to the mains, make sure your local mains voltage matches the rating indicated on the product. kvm-tec | 7... - Page 8 • Alterations to the product and technical modifications are not permitted • Use the device with a suitable, properly installed and easily accessible power outlet. The appliance plug serves as a disconnection point. 8 | kvm-tec...
-
Page 9: Technical Specifications
Local (CPU): B104 x H32 x D175 mm/B4.2 x H1.69 x D7.2 4inch, 610g/1.34 lb. Weight Remote (CON): B104 x H32 x D175 mm/B4.2 x H1.69 x D7.2 4inch, 620g /1.36lb. Shipment weight 3040g/ 6,7 lb. Expected product life 82 820 hours / 10 years kvm-tec | 9... -

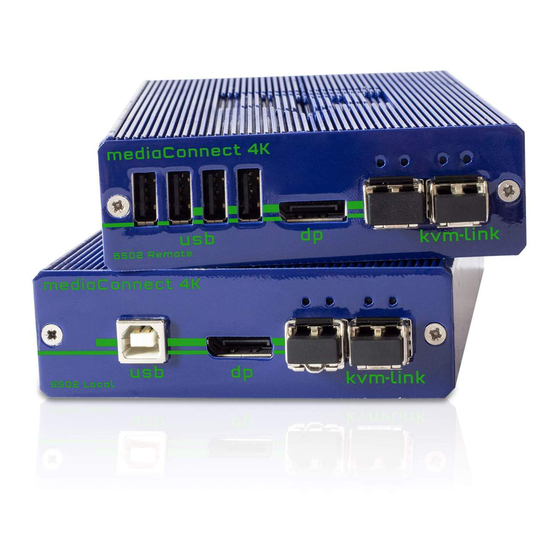

Page 10: Product Elements
Status LED for Network secondary Status LED Status LED for Netzwerk main kvm-link Connection for fibercable main kvm-link Connection for fibercable secondary dp out DisplayPort 1.2 outoput to monitor USB 2.0 to keyboard/ mouse etc. Power/Status LED Display of Extender Status 10 | kvm-tec... - Page 11 Status LED for network secondary Status LED Status LED for Network main kvm-link Connection for fibercables main kvm-link Connection for fibercebles secondary dp in DisplayPort 1.2 Input from PC USB 2.0 USB 2.0 to PC Power/Status LED Display of Extender Status kvm-tec | 11...
-
Page 12: Meaning Of The Led Indicators
Slow Orange Orange Fast Update in Progress Green Update Succedded Green V. fast Yes** Red/Green V. fast fiber Socket lEDs * Yellow Yellow Slow Green Green V. fast ** Rem. Only Table : Meaning of LED indicators 12 | kvm-tec... -
Page 13: Extender Installation
1x media4Kconnect DP1.2 /local Extender CPU 1x media4Kconnect DP1.2 /remote Extender CON 2 x 12 VDC 2 A power supply 1 x DP - DP cable 1,8 m/5,9ft 1x USB A-B cable 1,8m/5,9ft 8 x mounting feets kvm-link 2 x 10GSFP+ installed kvm-tec | 13... -
Page 14: Mounting Kit
2. extender InstallatIon 2.2 MoUnTInG KIT 2.2.1 MoUnTInG (oPTIonal) Rack Mounting Kit RMK-F The rack mounting kit RMK-F is for assembling kvm-tec media4Kconnect extenders. It consists of 19“ rack tray and an alu-faceplate. 14 | kvm-tec... -
Page 15: Installing The Extender
In the case of the latter, an additional 10 G Network Switch and a Windows PC od tablet with the Switching Manager must be installed With a Network Switch, each user can gain quick access to any of the required computers. point to point connection Set up Switching System up to 2000 endpoints kvm-tec | 15... -
Page 16: Quickinstallation & Start Up
12V 2A on the back side 3. Duplex multimode Please note that the recommended length of the display port cable should be max. 1.8m,5.9 ft otherwise interference-free 4K transmis- sion may not be guaranteed. 16 | kvm-tec... - Page 17 4. Connect the DP cable to the DP socket of the PC to the DP socket DP/in of the Local device and connect the screen on the remote side with the DP cable. HAVE FUN - Your kvm-tec Extender is now in use for many years (MTBF approx. 10 years)!
-
Page 18: Replacing The Sfp Module
2. Pull the metal latch of the SFP+ module forwards until it is at a right angle. 3. Replace the SFP+ module with the other module. Put the metal latch back in position. Only use SFP+ modules from kvm-tec, or recommended by kvm-tec. 18 | kvm-tec... -
Page 19: Removing A Fiber Cable
2. ExTEnDER InSTallaTIon 2.6 REMoVInG a fIbER cablE To remove a fi ber cable: • Press the latch down and slowly pull the cable out. kvm-tec | 19... -
Page 20: Main Menu & Settings
In the main menu you can make the following settings by selecting the corresponding letters: Press System status menu system status/ current status features Menu activated features Update update firmware Settings settings about this device Informationen about the unit 20 | kvm-tec... -
Page 21: System Status
Video and USB display data transfer status SCREEN „System Status“ 3.2. fEaTURES MEnU Pressing the „F“ key or selecting the arrow keys will take you to the features menu, where you can operate the activated features. go to chapter 4 FEATURES kvm-tec | 21... -
Page 22: Update Menu
3.3 UPDaTE MEnU Display of firmware version By pressing the „U“ key or by selecting the arrow keys, you reach the update menu, in which the firmware of the Extender will be displayed and can be updated. SCREEN „Update „ 22 | kvm-tec... - Page 23 3. MaIn MEnU & SETTInGS The current version of the firmware can be downloaded at http://www.kvm-tec.com/ support . Each update file contains a detailed description of the update process. For further information please refer to the update chapter Connect the USB stick to the CON (REMOTE) unit (wait a few seconds until the USB stick is connected to the CON unit).
- Page 24 3. MaIn MEnU & SETTInGS SCREEN „ Update“ The UPDATE process is now started and takes place in two steps: Erasing flash: erases the memory Updating: the new version is installed 24 | kvm-tec...
- Page 25 The already activated Switching upgrade can be activated from the Switching menu (in the main menu). By pressing „S“, you can access the switching menu and thus activate or de-activate the switching upgrade. In the main menu you can configure the switching system with „S“. kvm-tec | 25...
-
Page 26: Settings
3. MaIn MEnU & SETTInGS 3.4 SETTInGS By pressing the „G“ key or selecting the arrow keys you will have access to the Settings menu, where you can access all Extender settings. SCREEN „Settings“ 26 | kvm-tec... -
Page 27: Defining What Ddc Data Your Pc Uses
Press 2 for a fix resolution 1920 x 1080 Press 3 for a fix resolution 2560 x 1440 Press 4 for a fix resolution 3840 x 2160 Press ESc to return to the main menu SCREEN „DDC/EDID Settings“ kvm-tec | 27... -
Page 28: Select Keyboard Layout
In the Keyboard Layout menu you can switch between the keyboard layouts with which you can navigate the on screen display menu (OSD). Press the K button. The Keyboard Local menu opens: Press E to select English (QWERTY). Press D to select English (QWERTY). Press f to select French (AZERTY). 28 | kvm-tec... -
Page 29: Keyboard Shortcuts
(Please note that only a key combination with the keys 1 or F1 is possible with point F.) Use the arrow keys to determine the number of keystrokes required to trigger the shortcut. Then confirm with Enter. SCREEN „Keyboard shortcuts“ kvm-tec | 29... -
Page 30: Mouse Settings
By pressing the „G“ buttonor by selecting the arrow buttons, you enter the Mouse Settings menu. With the M button you will open the Mouse Settings where you can adjust the speed of the mouse with the arrow keys. SCREEN „Mouse Settings“ 30 | kvm-tec... -
Page 31: Managing Local Settings
By pressing the „G“ key, or by selecting the arrow keys, you can access the Menu Local Settings Press the „l“ key to open the Local Settings. Here you will find the Remote Wakeup setting. SCREEN „Local Settings“ kvm-tec | 31... -
Page 32: Features
Pressing the „f“ key or selecting the arrow keys, you will access the FEATURES menu, where you can select all the functions and the features. P- Point to point Mode on/off S- Matrix Switching Mode U- USb save feature SCREEN Menü FEATURES 32 | kvm-tec... -
Page 33: Point To Point
All functions of the switching system can be controlled via the Switching Manager software can be operated. With this link you can download the Switching Manager Software Manual downloaden: www.kvm-tec.com/dt/support/manuals r 4.1.3 USb SaVE fEaTURE Press „U“ to go to the USB SAVE FEATURE configuration. -
Page 34: Maintance And Care
The packaging is made of environmentally friendly materials, which may be disposed through your local recycling facilities. By disposing of the packaging and packaging waste in the proper manner, you help to avoid possible hazards for the environment and public health. 34 | kvm-tec... -
Page 35: Support & First Aid
Check if other units have ther Unit the same behaviour Contact kvm-tec Contact kvm-tec support support We are here for you to answer your questions about installation? Manual download www.kvm-tec.com kvm-tec Installationchannel on our homepage personally +43 2253 81912 kvm-tec | 35... - Page 36 Check all USB connections on both sides (Local and working Remote) If it is still not working, plug out/in USB once more lED is lighting The screen Install current fi rmware from our homepage http://www.kvm-tec.com/support in green flkers, has an incorrect display lED is lighting...
-
Page 37: Cable Requirements
The maximum length should be 300 m (984ft). The media4Kconnect is equipped with a multimode - SFP+ module, which allows a transmission distance of up to 300 m /984ft • Dedicated fiber optic connection cable type OM4 Duplex Multimode with LC plug kvm-tec | 37... -
Page 38: Requirements Network Switch
The network switch must meet the following specifications: 10 Gigabit Switch, with a port-to-port transfer rate of 10 Gigabit/second The following switches have all been tested and verified and will work with all kvm-tec Ultraline extenders. 38 | kvm-tec... -
Page 39: Recommended Swithces
Network Switch 24x RJ45 1000 Base-T / 2x SFP 1G / 2x SFP+ 10G in Kombination mit MX 6171 NS48RJ+/2SFP+ Network Switch 48x RJ45 10G / 2x SFP+ fIbER SWITchE 6161 NS48SFP+/4QSFP+ Network Switch 48x SFP+ 10G / 4x QSFP+ kvm-tec | 39... -
Page 40: Warranty
Please, contact us first before returning the product. 9.1 ExTEnDED WaRRanTY 2 years standard warranty Art Nr 9003 warranty extension to 5 years per Set Art Nr 9002 warranty extension to 5 years per Unit 40 | kvm-tec... -
Page 41: Address & Phone/Email
10. aDDRESS & PhonE / EMaIlS 10. aDDRESS & PhonE/EMaIl If you have any questions about our products, please contact kvm-tec or your dealer. kvm-tec electronic gmbh Gewerbepark Mitterfeld 1A 2523 Tattendorf Austria Phone: 0043 (0) 2253 81 912 Fax: 0043 (0) 2253 81 912 99 Email: support@kvm-tec.com... -
Page 42: Notes
11. noTES 42 | kvm-tec...
