19

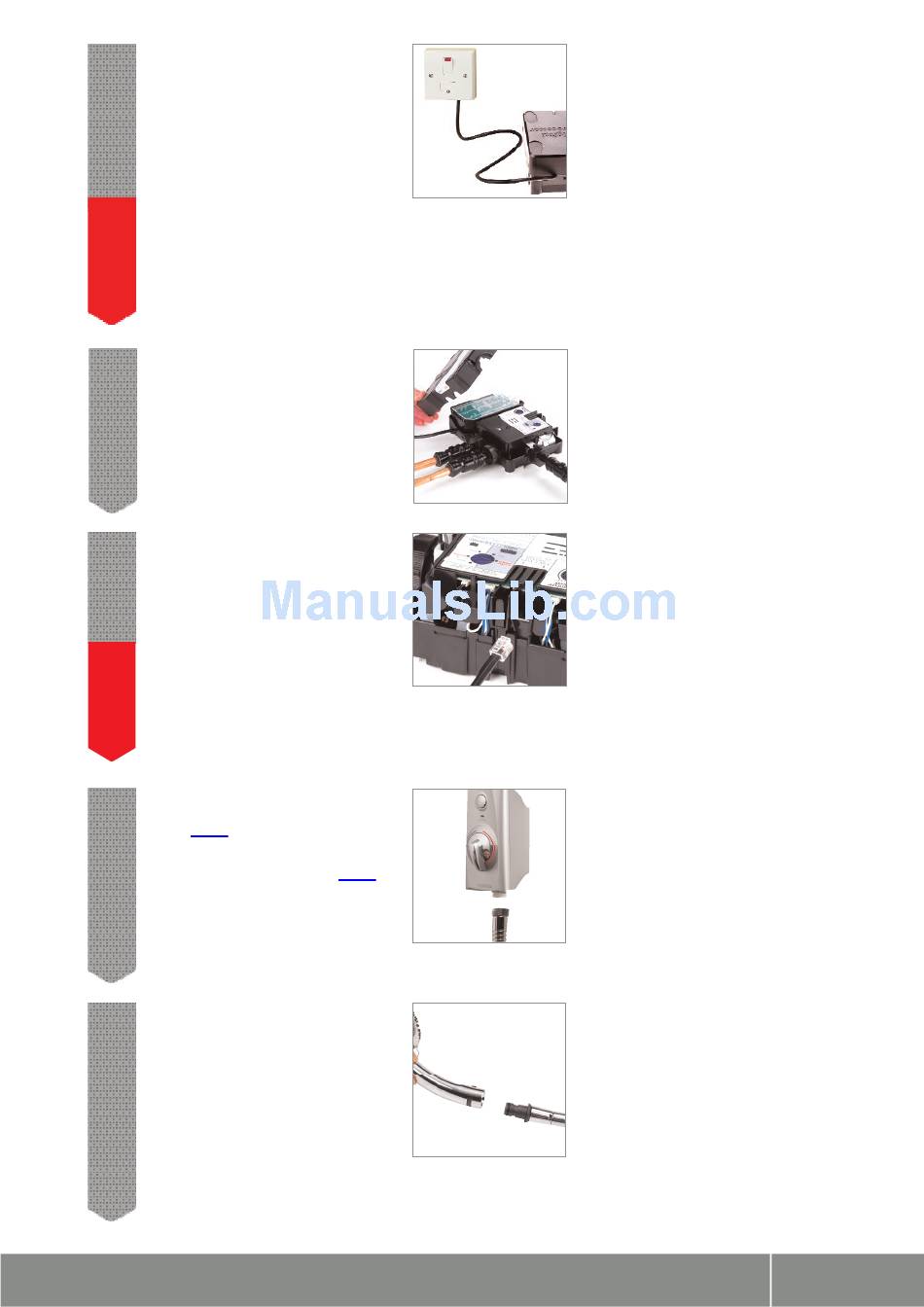

Connect the processor power lead to a double
pole 3 amp fuse switched spur incorporated in
the fixed wiring circuit, in accordance with
current wiring rules. Ensure that this is located
in an accessible, dry location and not in the
bathroom.
!

THIS APPLIANCE MUST BE EARTHED

We recommend protecting surface mounted cables in suitable approved
conduit to avoid the risk of damage from vermin.
The data cable and power lead should also be clipped in place with 'P' clips
or similar to avoid accidents.
20
Unscrew the single fixing on top of the
processor box and carefully tilt the lid up and
off the location lugs and pull the lid clear.
21
Connect the low voltage data cable into the
socket adjacent to the temperature adjuster
as indicated on the label. Feed the cable out
of the processor box ensuring it is correctly
routed within the data cable channel.
!
A further data cable socket has been provided
use with a secondary Digital dual switch
start/stop controller. This can be accessed by carefully snapping and removing
the entry pillar and connecting the cable as described above.
22
Ensuring the hose washer is correctly fitted,
connect the hose to the hose connector and
run the shower for 15 seconds without the
handset attached to clear any internal debris,
which may be present. Turn off the shower and
pass the hose through the gel hook/hose
restraint (if required).
23
Disengage the pivot clip and remove the
pivot from the bottom of the handset.
Ensure the hose washer is in the correct
position and screw the pivot into the hose,
using a suitable hexagonal key to tighten,
taking care not to over-tighten.
Reinsert the pivot into the handset and
engaged the pivot clip prior to placing the
handset into the handset holder.
Visage Digital exposed installation instuctions
page 10
