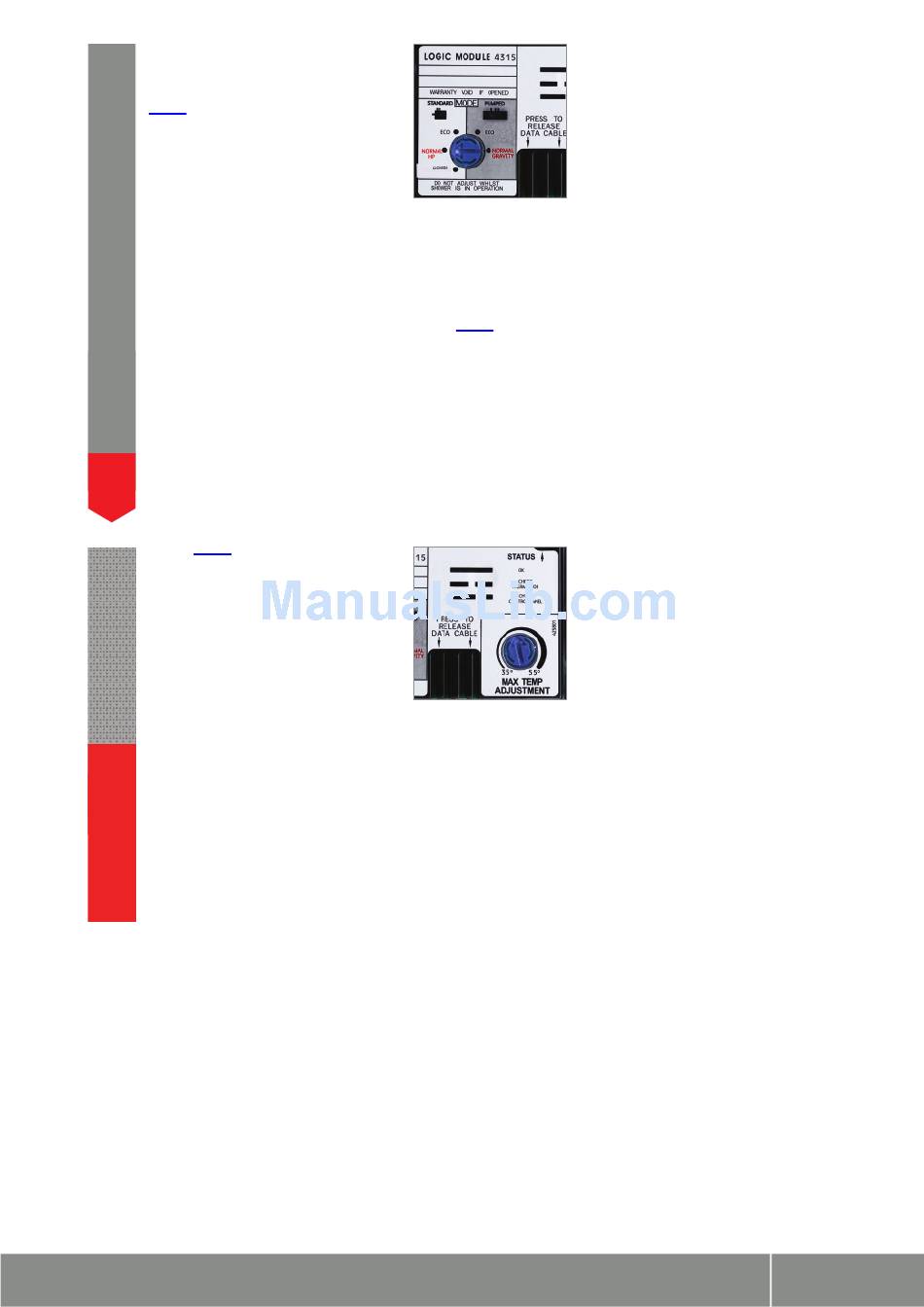

The Digital processors are supplied factory set
with the flow rate at either 'NORMAL HP' or
'NORMAL GRAVITY' mode depending on which
shower system has been ordered.
STANDARD PROCESSORS ON BALANCED HP
SYSTEMS:
Standard processors fitted to balanced high
pressure systems may be set to 'NORMAL HP'
or for water economy 'ECO' modes.
STANDARD PROCESSORS ON COMBINATION BOILER SYSTEMS:
For Standard Digital processors installed on combi boiler systems, for optimum
performance we recommend setting the flow rate to the 'COMBI' mode.
N.B. The 'ECO' flow rate mode should not be selected for shower systems
fitted to combination boilers.
PUMPED PROCESSORS:
Pumped processors fitted to gravity systems may be set to 'NORMAL
GRAVITY' or for water economy 'ECO' flow rate modes.
!
WHEN MAKING ANY ADJUSTMENT TO THE PROCESSOR SETTINGS THE
POWER MUST BE ISOLATED.
25
Run the shower at maximum temperature
(factory pre set to 45
temperature adjustment can be made with a
flat bladed screwdriver using the 'MAX' TEMP
ADJUSTMENT' control as indicated. When the
temperature has been set to the desired
position carefully replace the Digital processor
lid and secure the fixing hand tight only.
!
Site conditions can affect temperature settings, installer to adjust as required.
ALL COPPER PIPE WORK MUST BE CROSS-BONDED AND CONNECTED TO A
RELIABLE EARTHING POINT
