Installing Leak Sensor - Level Sense Pro User Manual

2.5

Installing Leak Sensor

(Optional)
The leak sensor monitors for pooling water on a flat surface, this
sensor does not need to be installed if this type of monitoring is
not required.

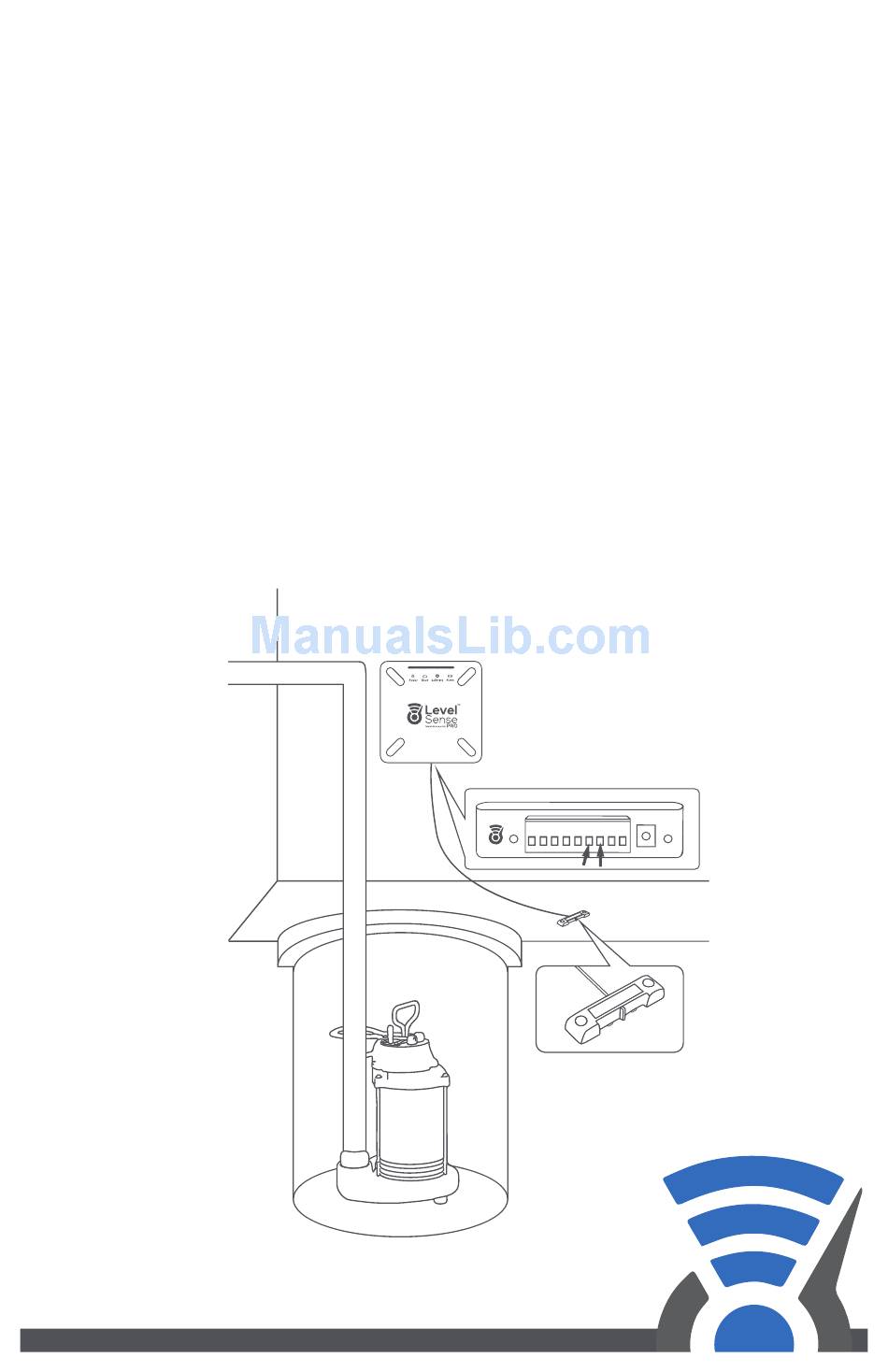

The leak sensor can be mounted near the sump pit or other area
where water would pool in the event of a leak. Typical locations
are near a water heater or HVAC system which could leak during
a malfunction. The sensor needs to be placed flat on the floor
with the metal sensing elements down. The sensor must be
submerged in a minimum pool of water 1/8" in depth before
activating. The wires do not have polarity, and cannot be wired
backwards. Do not increase wire length of the leak sensor
beyond the length provided.
7
