Installing Float Sensor - Level Sense Pro User Manual

2.4

Installing Float Sensor

The float sensor mounts above the normal pump water line and
detects when the water level has reached a point above normal
operating range.

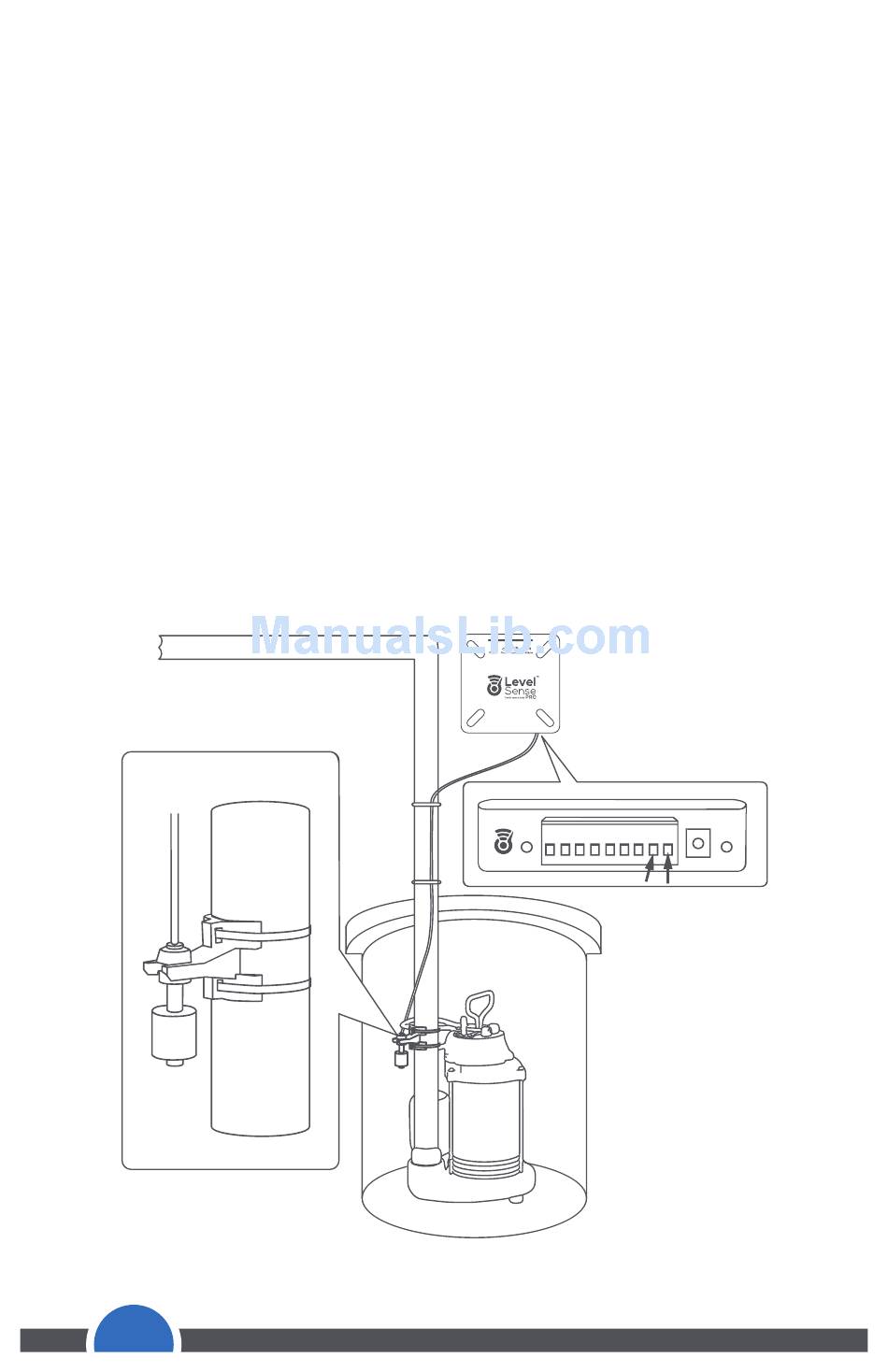

The float sensor installs on the sump pump discharge pipe.
Using the provided plastic float bracket and two zip ties, securely
mount the float to the discharge pipe. The sliding float portion of
the sensor should face down. Mount the float approximately
six (6) inches above the sump pump normal water line. This
level can usually be found by looking at the side walls of the pit to
visually see the high water mark roughly level with the top of the
pump. The wires from the float sensor connect to the far right
two terminals on the Level Sense Pro. The wires do not have
polarity, and cannot be wired backwards. Do not increase
wire length beyond the length provided.
6
