- Page 1 USER MANUAL www.level-sense.com...
-
Page 2: Table Of Contents
Contents About Level Sense Pro ......1.0 Device Specifications ......1.1 Requirements ........1.2 In the Box ........... 1.3 Status LEDs ........1.4 Wiring Panel ........1.5 Installation ...........2.0 Installation Warning ......2.1 Mounting to Pump Discharge Pipe ... 2.2 Mounting to the Wall ...... -
Page 3: About Level Sense Pro

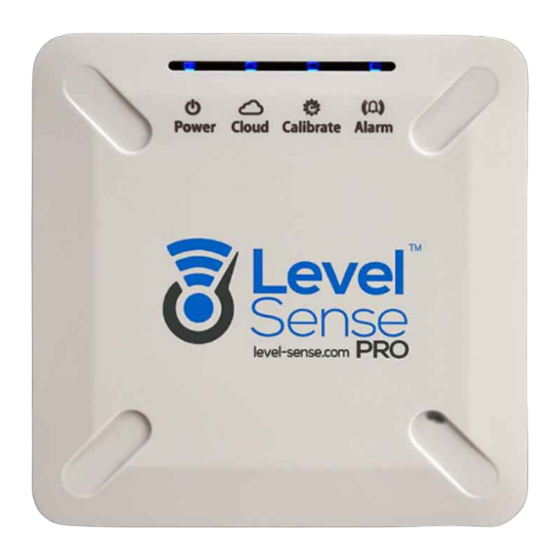

Level Sense Pro is a Wi-Fi based residential environmental monitor designed specifically for the home owner who wants to keep a watchful eye on their property at all times. Level Sense Pro monitors five critical elements of the home as alarm inputs—... -
Page 4: In The Box
In the Box 1. Level Sense Pro 2. Power Supply 3. Float Switch & Bracket 4. Leak Sensor 5. Level Sensor Wire 6. Accessories (Optional Accessory) -
Page 5: Status Leds
Status LEDs The status LEDs on the Level Sense Pro provide a visual indication of the control state. The below table is a system status guide. Color /LED Blue Yellow White AC Power No AC No AC Power — Power... -
Page 6: Installation
2.0 Installation Level Sense Pro is designed for indoor installation only. The ideal mounting location is in the utility room within a few feet of the sump pump pit. Consideration should be taken to keep within range of the homes Wi-Fi router. Wi-Fi range varies based on the router and environmental conditions. -
Page 7: Mounting To The Wall
Mounting to the Wall The back side of the Level Sense Pro accepts two #6 screws. The screws are spaced at 3.375” and are mounted horizontally. Install the device approximately 3-6 feet above the floor. 3.375 “ Mounting Screws HAVE A QUESTION? Send us an email: support@level-sense.com or submit a request... -
Page 8: Installing Float Sensor
The wires from the float sensor connect to the far right two terminals on the Level Sense Pro. The wires do not have polarity, and cannot be wired backwards. Do not increase... -
Page 9: Installing Leak Sensor
Installing Leak Sensor (Optional) The leak sensor monitors for pooling water on a flat surface, this sensor does not need to be installed if this type of monitoring is not required. The leak sensor can be mounted near the sump pit or other area where water would pool in the event of a leak. -
Page 10: Installing Level Sensor
Installing Level Sensor (Optional Accessory) The level sensor is used to help determine pump cycle frequency. This sensor is not required and only provides an approximation of water level following a calibration process. This is useful if you are unsure how often your pump runs. High water alarms are triggered from the float sensor. -
Page 11: Powering On
After mounting the Level Sense Pro control unit and successful installation of sensors we can now power up the control unit. First, connect the DC jack of the power supply to the Level Sense Pro control. Second, connect the AC wall adapter to a standard 120VAC power outlet. -
Page 12: Connect With Wps
“WPS.” If your router does not, proceed to connecting with hotspot mode. Temporarily move the Level Sense Pro control unit into close proximity of the Wi-Fi router. The Level Sense Pro will operate on battery backup to complete this step if allowed to charge for 30 minutes prior. -
Page 13: Connect With Hotspot
Both fields are case sensitive. Once complete, press the submit button. The next webpage instructs you to reset the device by pressing the reset button on the Level Sense Pro. After restarting, the Cloud LED will pulse yellow until it connects to your Wi-Fi. -
Page 14: Product Registration-Portal
5.0 Product Registration—Portal The Level Sense Pro is set up and managed via a cloud service called Portal. To access the Level Sense Portal, you first need to create an account. With an account, you can claim your device, setup alarm contacts and set alarms. -
Page 15: Configure Device Name
Configure Device Name By default, the Level Sense Pro is named “New Sensor“ in Portal. The device name can be modified and is useful if you have multiple devices in your Portal. Update Frequency Set the update frequency between two minutes (default) and five minutes. -
Page 16: Alarm Outputs
The relay is a latching type and will maintain its state even when the power fails and after the battery has drained. The alarm relay is useful when connecting the Level Sense Pro into a home security system. Both NO and NC contacts are available for increased wiring applications. -
Page 17: Device And Alarm Testing
8.0 Device and Alarm Testing The Level Sense Pro and sensors should be tested monthly to ensure proper operation. Humidity and Temperature Testing Testing for temperature and humidity sensors is done by comparing current levels in Portal with a calibrated reference. Readings of +/-3% are expected. -
Page 18: Password Reset
10.0 Password Reset To clear the Wi-Fi credentials from the Level Sense Pro, complete the following password reset steps. Press and hold the user button until all four LEDs turn solid red. If after 10 seconds they have not turned red, release the button for a few seconds and try again. -
Page 19: Warranty
THIS LIMITED WARRANTY CONTAINS THE STANDARD TERMS AND CONDITIONS (“TOC”) OF LEVEL SENSE. WHERE PERMITTED BY THE APPLICABLE LAW, BY KEEPING YOUR LEVEL SENSE PRODUCT BEYOND THIRTY (30) DAYS AFTER THE DATE OF DELIVERY, YOU FULLY ACCEPT THE TERMS AND CONDITIONS SET FORTH IN THIS LIMITED WARRANTY. - Page 20 WITHOUT WAIVING ANY PROVISION IN THIS LIMITED WARRANTY, IF A CIRCUMSTANCE ARISES WHERE WARRANTORS ARE FOUND TO BE LIABLE FOR ANY LOSS OR DAMAGE ARISING OUT OF MISTAKES, NEGLIGENCE, OMISSIONS, INTERRUPTIONS, DELAYS, ERRORS OR DEFECTS IN WARRANTORS’ PRODUCTS OR SERVICES, SUCH LIABILITY SHALL NOT EXCEED THE TOTAL AMOUNT PAID BY THE CUSTOMER FOR WARRANTORS’...
- Page 21 ALL QUESTIONS RELATING TO ITS VALIDITY, INTERPRETATION, PERFORMANCE AND ENFORCEMENT SHALL BE GOVERNED BY AND CONSTRUED IN ACCORDANCE WITH THE LAWS OF THE STATE OF IOWA, WITHOUT REGARD TO THE PRINCIPLES OF CONFLICTS OF LAW. Effective date 01/01/2016 Iowa Light, Inc. d.b.a. Level Sense Phone: 515-957-1050...
-
Page 22: Test Log
14.0 Test Log Please maintain a monthly test log. This page can be replicated for additional recordings. Date Float Leak Water Temp Humidity Tested Battery Switch Switch Level Reading Reading Test EXAMPLE: Pass Pass 3 hours 72˚F 1/1/2015 Smith... -
Page 23: Troubleshooting
15.0 Troubleshooting Wi-Fi will not stay connected: Device out of range. Check router antennas are not blocked and router is optimally placed within house. If optimizing the router does not work, consider a Wi-Fi range extender. Wi-Fi will not connect: Assuming the device is within range of the router, check network SSID and password. - Page 24 Version 1.1 • 1/1/2016 • ©Level Sense...
